MBN106W

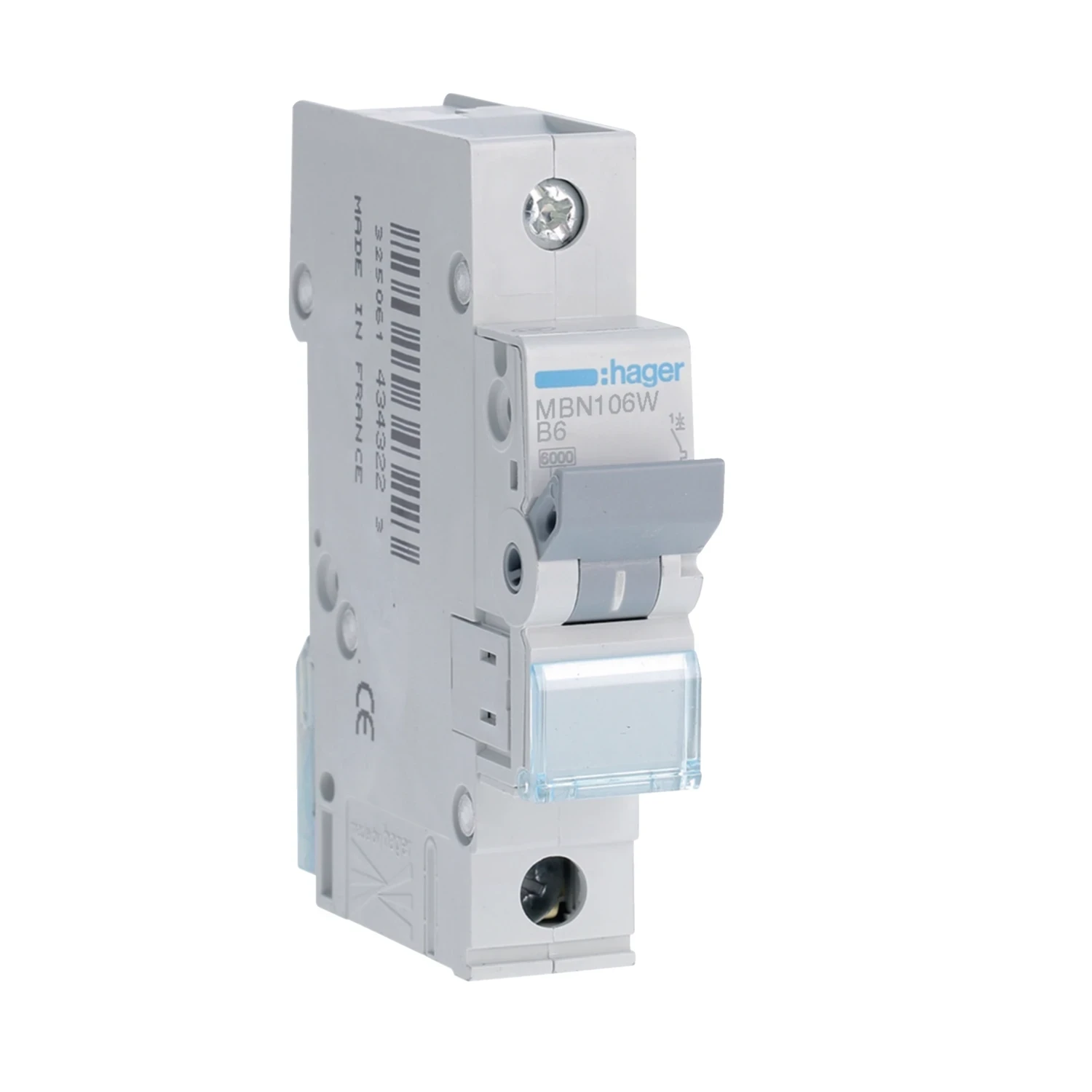

Photo is representative

Hager MCB 6A Type B 6kA 1P

Product Information

Stock Code MBN106W
GTIN 3250614343926
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €7.76

Gross price

€9.54

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MBN106W is a single-pole MCB with 6A rated current and Type B trip curve, built to IEC 60898-1 for AC installations.

Fits standard DIN rail, 1 module wide, suited to domestic and light commercial distribution boards.

  • 6A rated current, Type B curve
  • 6kA Icn breaking capacity, 10kA Icu at 400V
  • IP20 enclosure rating
  • Screw terminal connections, 1–35mm² conductor range
  • Operating temperature -25°C to 70°C
Specifications

Poles

1P

Rated Current

6 A

Trip Curve

Type B

Breaking Capacity (Icn)

6 kA

Ultimate Breaking Capacity (Icu)

10 kA

Rated Operational Voltage

230-400 V

Frequency

50-60 Hz

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Module Width

1 module (17.50 mm)

Dimensions (HxWxD)

83 x 17.50 x 70 mm

Connection Type

Screw terminal

Cable Range

1-35 mm² (solid), 1-25 mm² (flexible)

Documents

datasheet MBN106W
