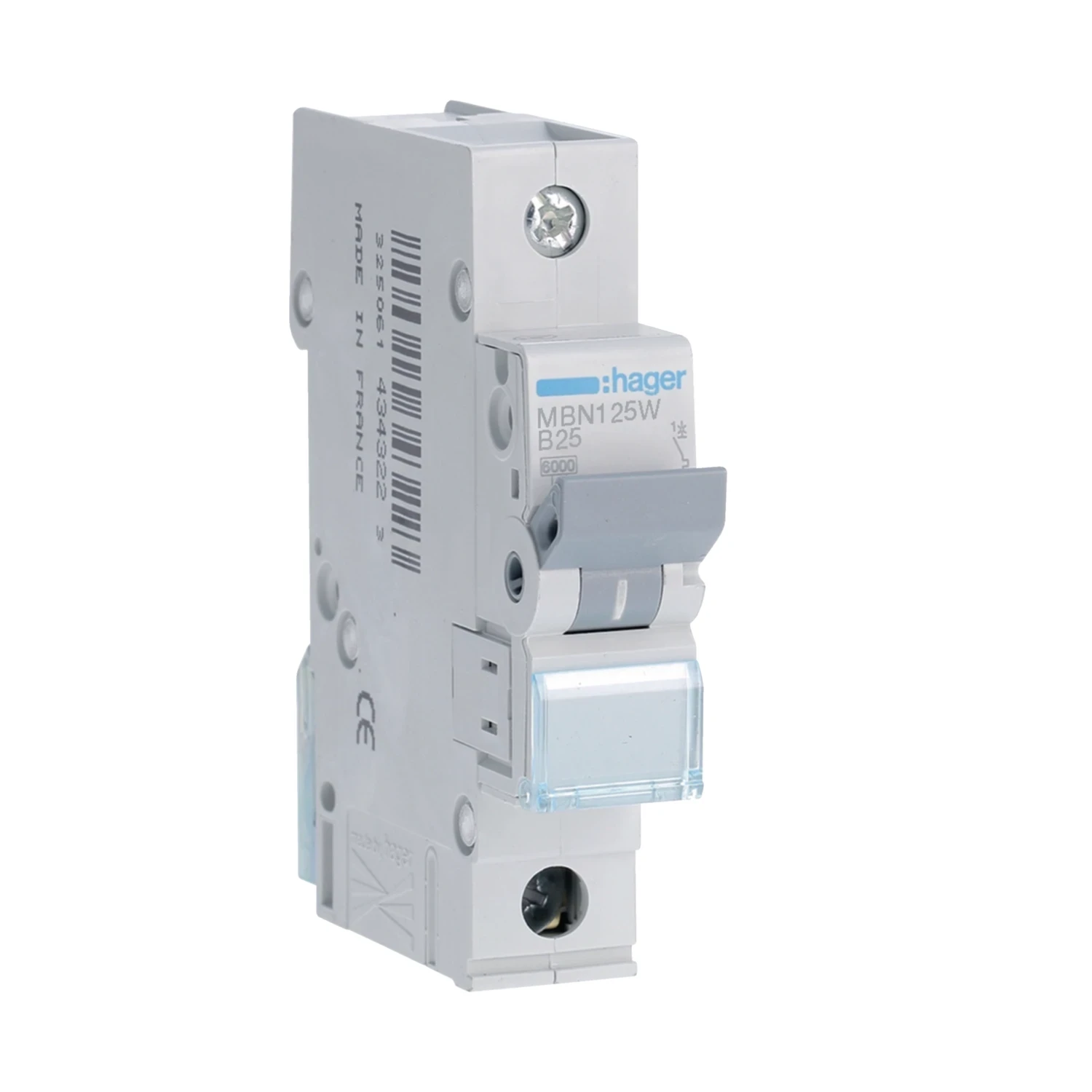

MBN125W

Photo is representative

Hager MCB 25A Type B 6kA 1P

Product Information

Stock Code MBN125W
GTIN 3250614343964
Stock status: Available for delivery

priced individually

Net price: €7.49

Gross price

€9.22

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

The Hager MBN125W is a single-pole MCB with a B-curve trip characteristic, rated 25A. Fits standard DIN rail boards for overcurrent protection on AC circuits.

  • 6kA breaking capacity (Icn) to IEC 60898-1
  • 10kA Icu to IEC 60947-2
  • Rated voltage 230-400V AC, 50-60Hz
  • 1 module wide, 360° mounting position
  • Operating temperature -25°C to 70°C
Specifications

Poles

1P

Rated Current

25 A

Curve Type

B

Breaking Capacity (Icn)

6 kA

Ultimate Breaking Capacity (Icu)

10 kA

Rated Voltage (Ue)

230 - 400 V

Frequency

50 - 60 Hz

Insulation Voltage (Ui)

500 V

Impulse Withstand Voltage (Uimp)

4000 V

Operating Temperature Range

-25 - 70 °C

IP Rating

IP20

Number of Modules

1

Grid Distance

60 mm

Documents

datasheet MBN125W
