MBN150W

Photo is representative

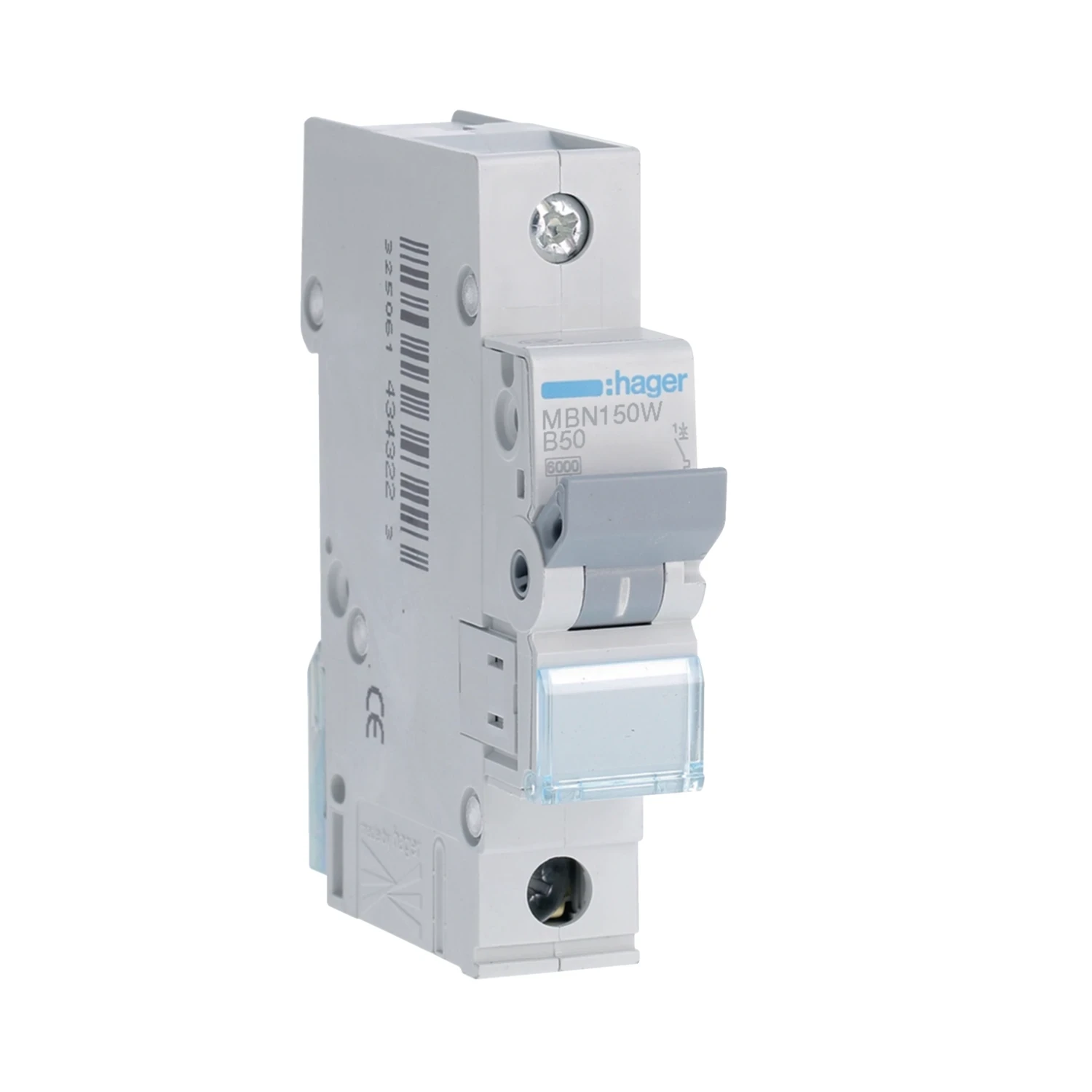

Hager MCB 50A Type B Curve 6kA Icn 1P Single-Pole Miniature Circuit Breaker

Product Information

Stock Code MBN150W
GTIN 3250614343995
Stock status: Available for delivery

priced individually

Net price: €19.60

Gross price

€24.10

Branch Stock

Monaghan

Stock status: 9 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: In stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 2 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MBN150W is a single-pole miniature circuit breaker with a 50A rated current and B-curve trip characteristic. Rated 6kA breaking capacity at 230V AC, for domestic and light commercial distribution boards on circuits with low inrush loads.

  • 1P, 50A, Type B curve
  • 6kA Icn / 10kA Icu breaking capacity
  • 230-400V AC rated operational voltage
  • IP20, DIN rail mount, 1 module wide
  • Terminal cross-section 1-35mm² (rigid), 1-25mm² (flexible)
Specifications

Poles

1P

Rated Current (In)

50 A

Curve Type

B

Breaking Capacity (Icn) at 230V AC

6 kA

Ultimate Breaking Capacity (Icu) at 400V AC

10 kA

Rated Operational Voltage (Ue)

230 - 400 V

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

Frequency

50 - 60 Hz

IP Rating

IP20

Operating Temperature Range

-25 - 70 °C

Module Width

1 module (17.5 mm)

Terminal Cross-Section (Rigid)

1 - 35 mm²

Terminal Cross-Section (Flexible)

1 - 25 mm²

Standards

IEC 60947-2, IEC 60898-1, IEC 60664

Documents

datasheet MBN150W
