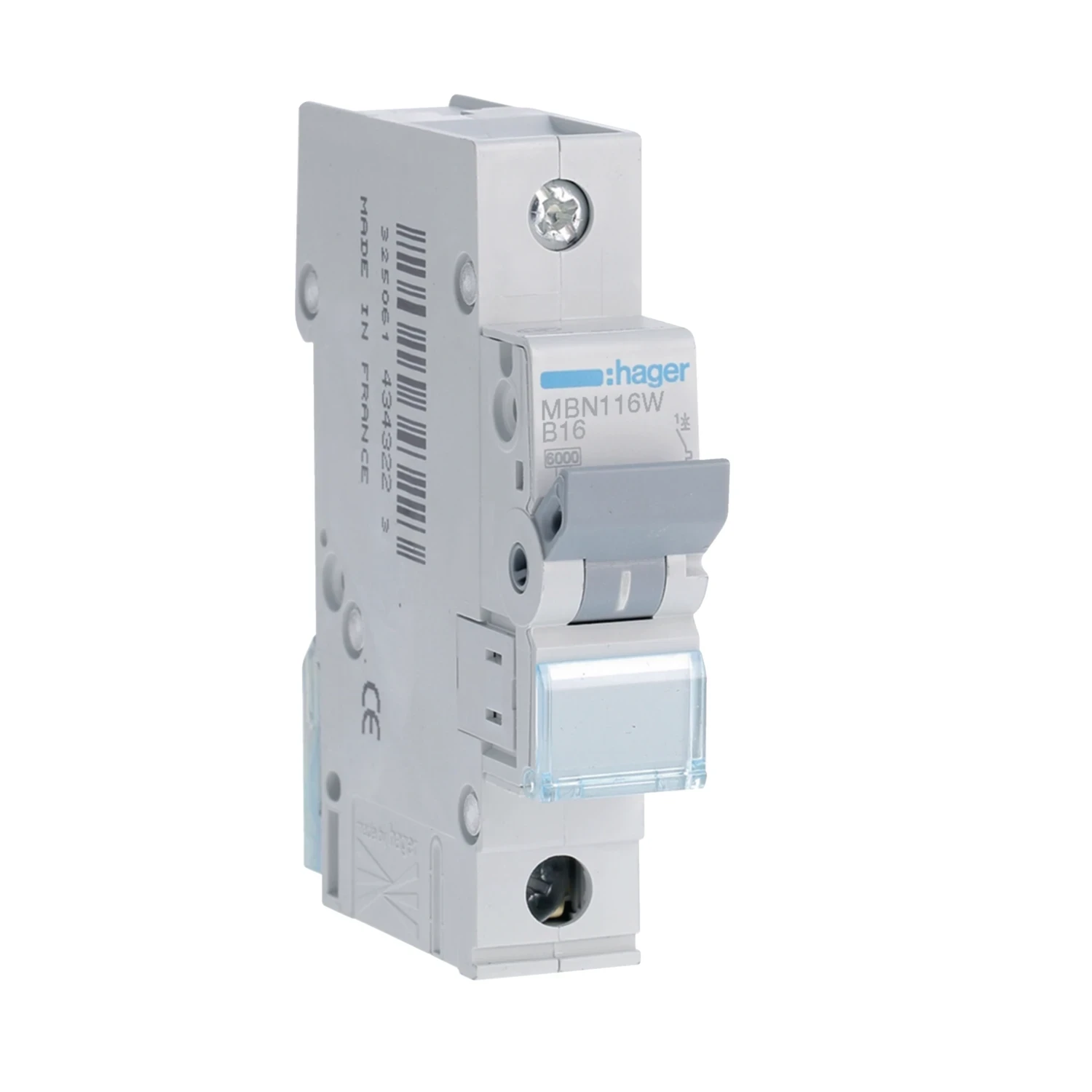

MBN116W

Photo is representative

Hager MCB 16A Type B 6kA 1P

Product Information

Stock Code MBN116W
GTIN 3250614343940
Stock status: Available for delivery

priced individually

Net price: €7.27

Gross price

€8.94

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Single-pole MCB from Hager for DIN rail distribution boards. B-curve trips on instantaneous overcurrent at 3-5x In, suited to resistive and lighting loads with low inrush.

  • 16A rated current, 6kA Icn at 230V AC
  • Screw terminals, 1-35mm² rigid / 1-25mm² flexible conductor range
  • 1 module wide, 360° mounting position
  • IP20, operating range -25°C to 70°C
  • Rated insulation voltage 500V, impulse withstand 4000V
Specifications

Poles

1P

Rated Current (In)

16 A

Curve Type

B

Breaking Capacity (Icn)

6 kA

Rated Operational Voltage (Ue)

230 - 400 V

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

Frequency

50 - 60 Hz

IP Rating

IP20

Operating Temperature

-25 - 70 °C

Terminal Cross-Section (Rigid)

1 - 35 mm²

Terminal Cross-Section (Flexible)

1 - 25 mm²

Module Width

1 module

Mounting

360° mounting position possible
