MBN120W

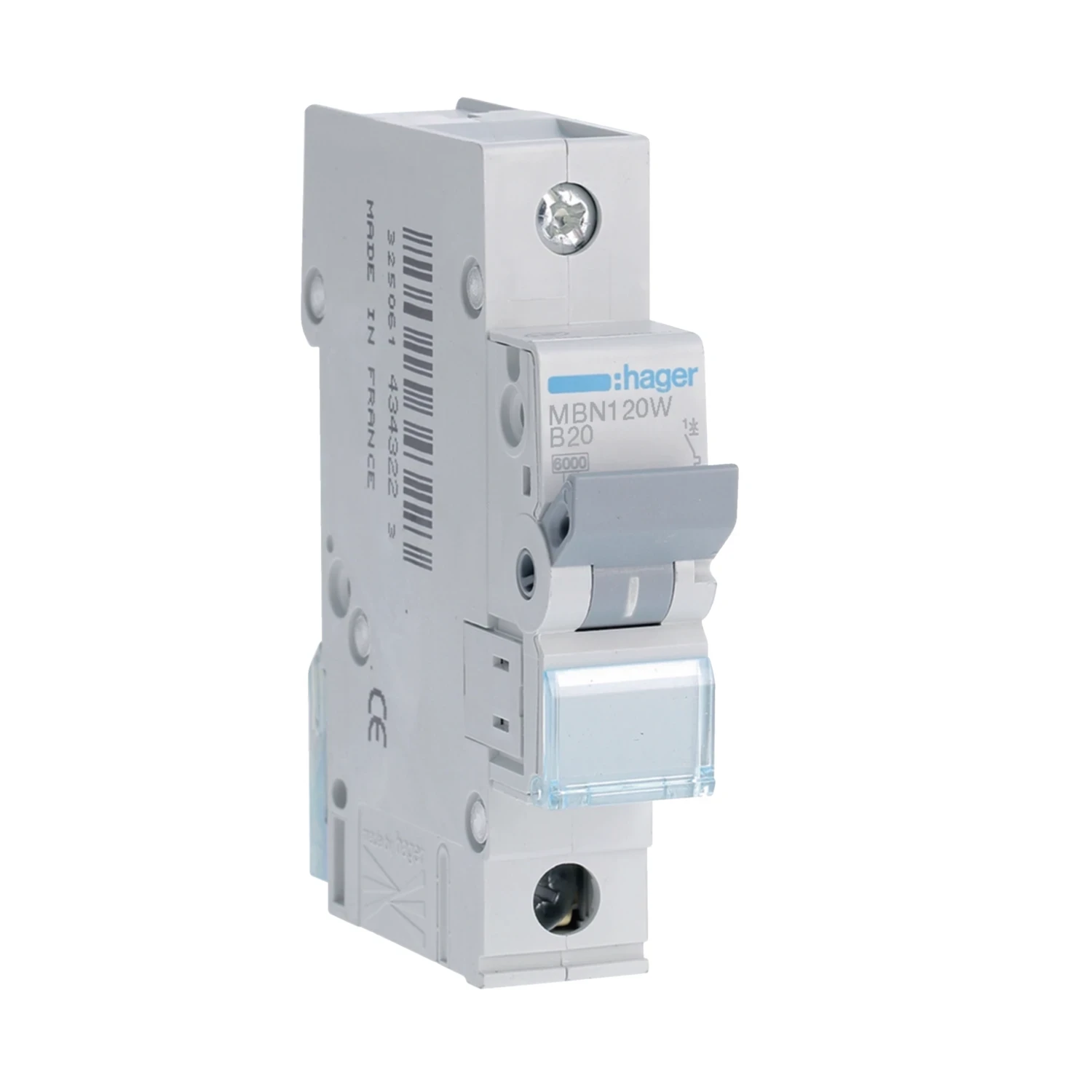

Photo is representative

Hager MCB 20A Type B 6kA 1P

Product Information

Stock Code MBN120W
GTIN 3250614343957
Stock status: Available for delivery

priced individually

Net price: €7.29

Gross price

€8.97

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MBN120W is a single-pole miniature circuit breaker for general purpose AC circuit protection on distribution boards. B-curve trip characteristic suits resistive and lightly inductive loads such as lighting and socket circuits.

  • 1P, 20A rated current
  • Type B curve
  • Icn 6kA at 230V AC, Icu 10kA at 400V AC
  • 1 module wide, DIN rail mounting
  • Operating temperature -25°C to 70°C
Specifications

Poles

1P

Rated Current

20 A

Curve

B

Breaking Capacity Icn (230V AC)

6 kA

Breaking Capacity Icu (400V AC)

10 kA

Rated Operational Voltage

230 - 400 V

Frequency

50 - 60 Hz

Rated Insulation Voltage

500 V

Rated Impulse Withstand Voltage

4000 V

IP Rating

IP20

Operating Temperature

-25 - 70 °C

Number of Modules

1

Dimensions (H x W x D)

83 mm x 17.50 mm x 70 mm

Cross-Section Massive Conductors

1 - 35 mm²

Documents

datasheet MBN120W
