MBN132W

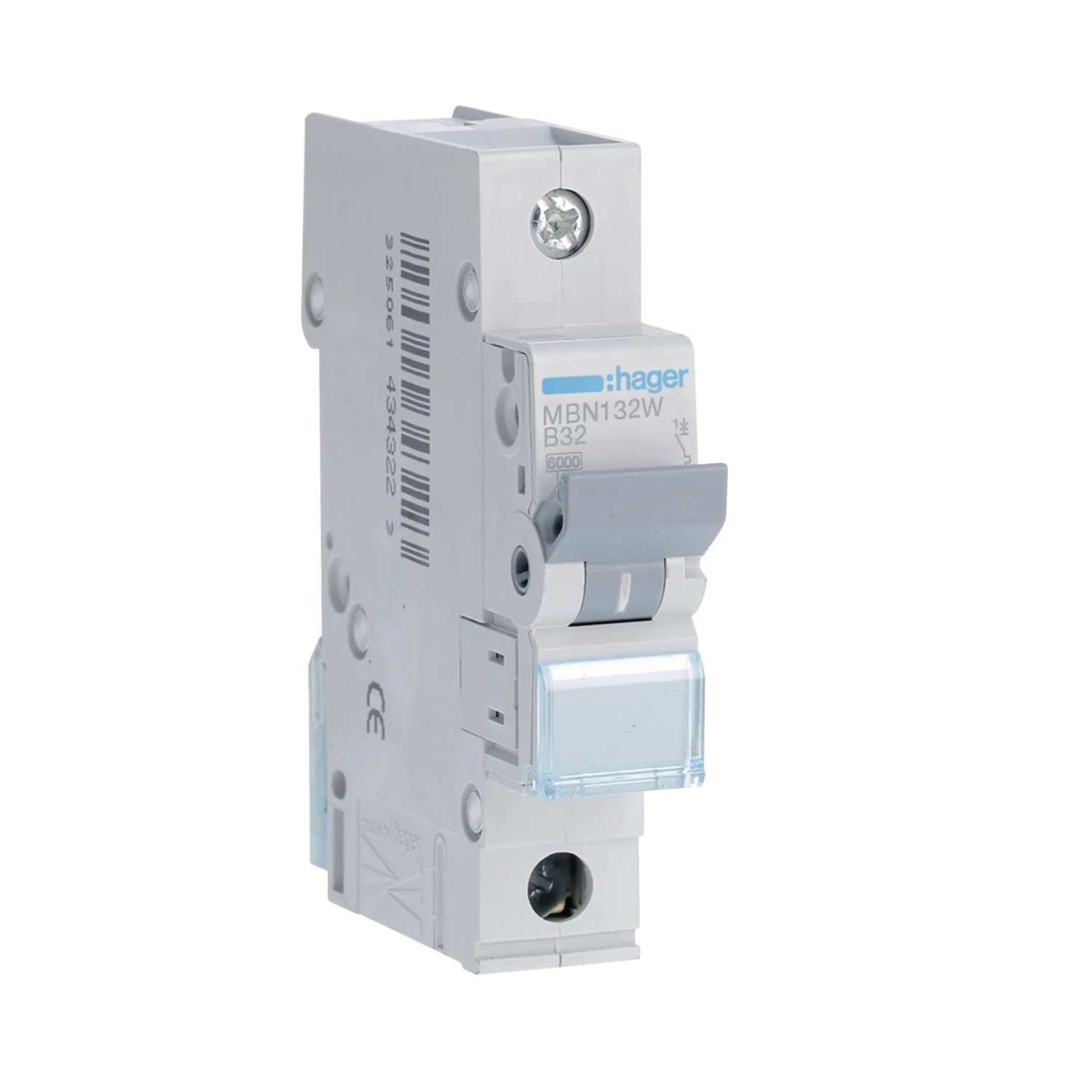

Photo is representative

Hager MCB 32A Type B Curve 6kA 1P 230-400V AC Distribution Board

Product Information

Stock Code MBN132W
GTIN 3250614343971
Stock status: Available for delivery

priced individually

Net price: €7.49

Gross price

€9.22

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager MBN132W is a single-pole MCB, 32A, Type B curve, 6kA breaking capacity. Fits Hager DIN rail distribution boards for general-purpose overcurrent protection on domestic and light commercial circuits.

  • 1P, 32A, Type B curve
  • Icn 6kA (IEC 60898-1), Icu 10kA (IEC 60947-2)
  • Ue 230-400V AC, 50-60Hz
  • IP20, 1 module wide (17.5mm)
  • Screw terminal top, biconnect bottom, 1-35mm² cable range
Specifications

Poles

1P

Rated Current (In)

32 A

Curve

Type B

Rated Voltage (Ue)

230-400 V AC

Frequency

50-60 Hz

Breaking Capacity (Icn)

6 kA

Breaking Capacity (Icu)

10 kA

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

IP Rating

IP20

Operating Temperature Range

-25 to +70 °C

Dimensions (H x W x D)

83 x 17.5 x 70 mm

Terminal Type

Screw terminal (top), biconnect (bottom)

Cable Range

1-35 mm² rigid, 1-25 mm² flexible

Documents

datasheet MBN132W
