MBN140W

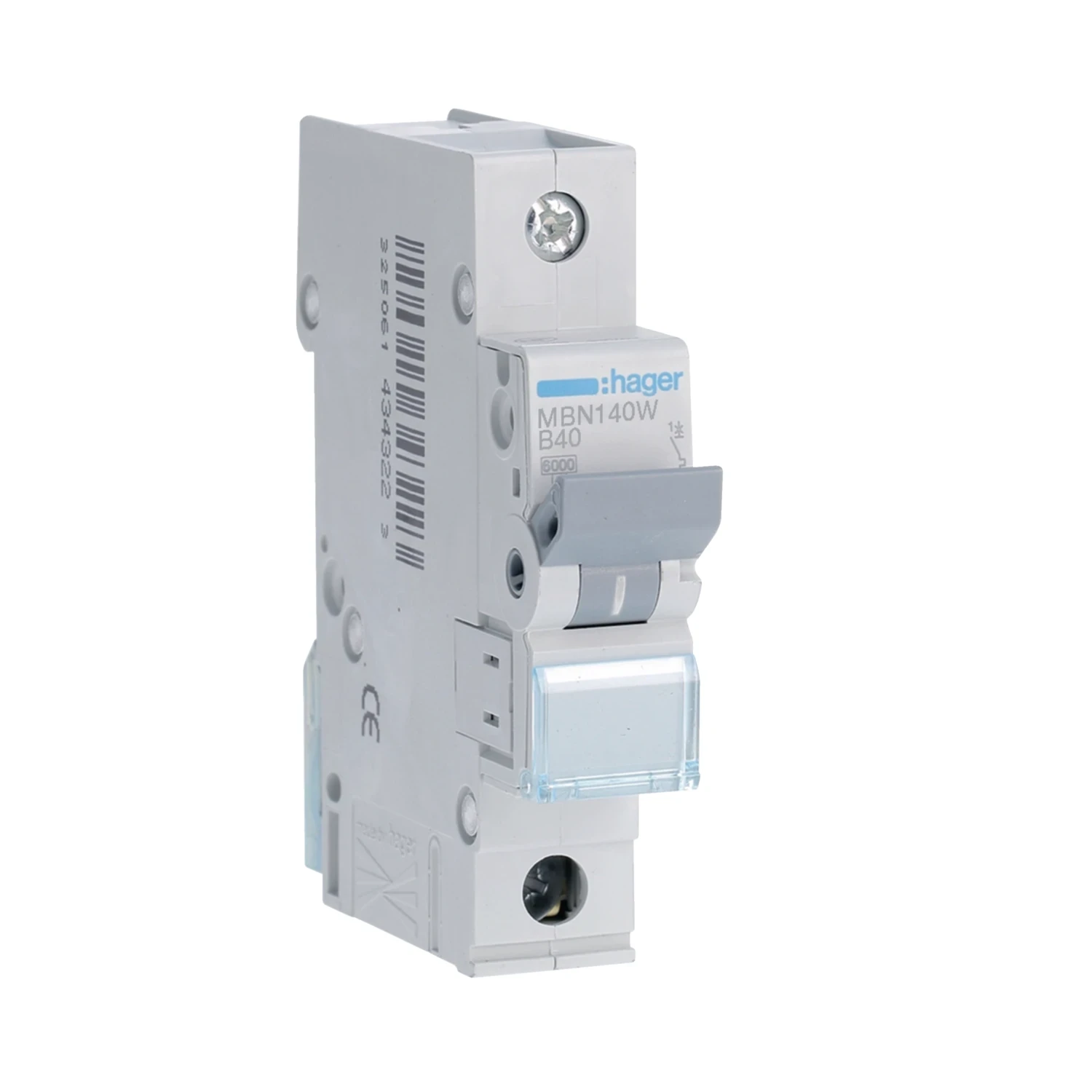

Photo is representative

Hager MCB 40A Type B 6kA 1P

Product Information

Stock Code MBN140W
GTIN 3250614343988
Stock status: Available for delivery

priced individually

Net price: €7.76

Gross price

€9.54

Branch Stock

Monaghan

Stock status: In stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: In stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: In stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MBN140W is a single-pole MCB with B-curve tripping, built for overload and short-circuit protection on standard distribution boards.

Rated 40A at 230-400V AC, this MCB gives 6kA breaking capacity per IEC 60898-1 and 10kA ultimate capacity per IEC 60947-2. Suits circuits needing B-curve protection where instantaneous trip is required at lower multiples of In.

  • 1 module wide, DIN rail mount
  • Screw terminal top, biconnect bottom
  • IP20 enclosure
  • Operating range -25°C to +70°C
Specifications

Rated Current

40 A

Trip Curve

Type B

Breaking Capacity (Icn)

6 kA

Ultimate Breaking Capacity (Icu)

10 kA

Poles

1P

Rated Voltage (Ue)

230-400 V AC

Frequency

50-60 Hz

IP Rating

IP20

Operating Temperature

-25°C to +70°C

Module Width

1 module (17.50 mm)

Terminal Torque

2.80 Nm

Compliance

IEC 60898-1, IEC 60947-2

Documents

datasheet MBN140W
