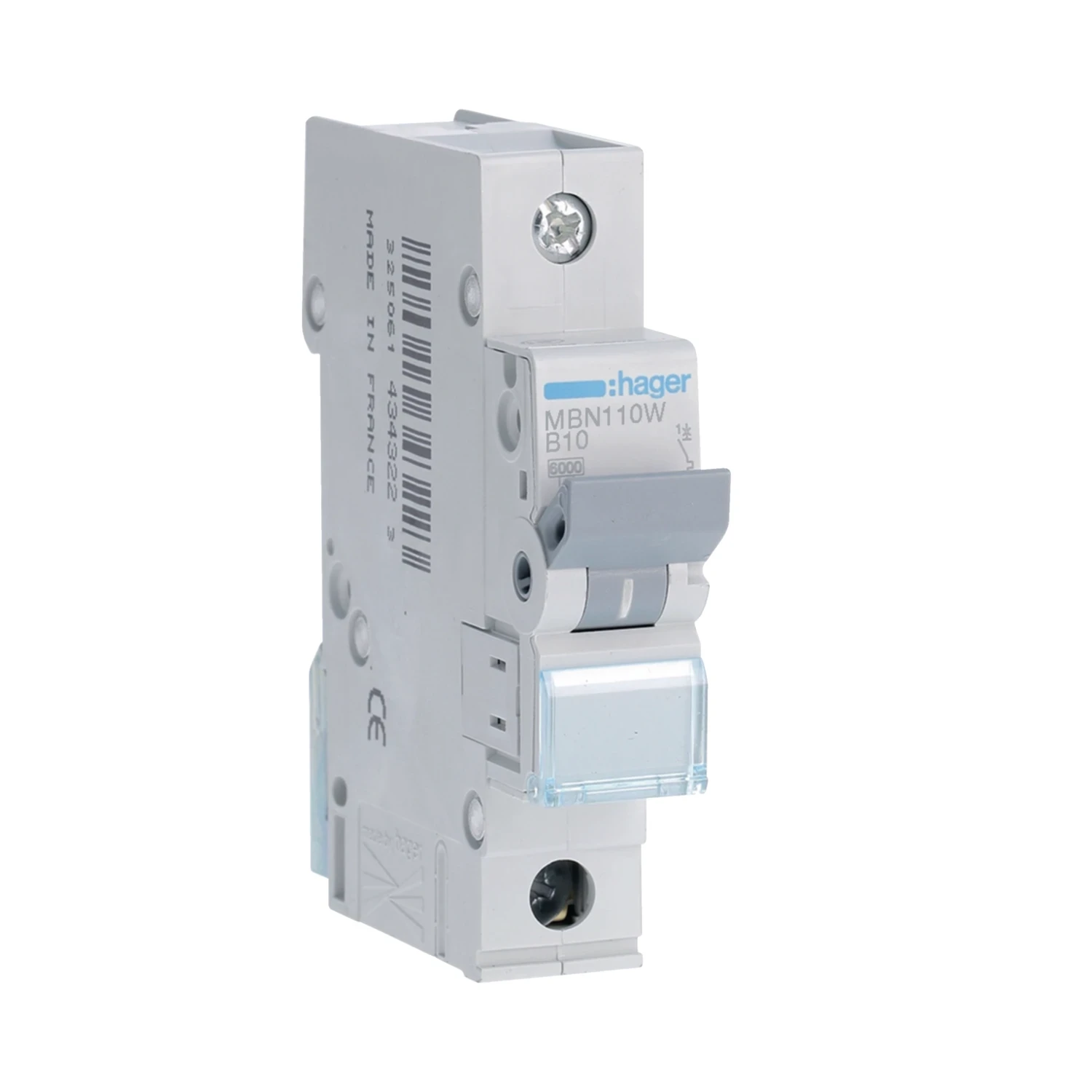

MBN110W

Photo is representative

Hager MCB 10A Type B 6kA 1P

Product Information

Stock Code MBN110W
GTIN 3250614343933
Stock status: Available for delivery

priced individually

Net price: €7.74

Gross price

€9.52

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager MBN110W is a single-pole MCB for AC installations, rated 230-400V. Fits standard DIN rail distribution boards, 1 module wide. Type B curve suits general domestic and light commercial loads with predictable inrush current.

  • Rated current (In): 10A
  • Breaking capacity (Icn): 6kA at 230V AC
  • Poles: 1P
  • IP20
  • Operating temp: -25°C to 70°C
Specifications

Poles

1P

Curve

Type B

Rated Current (In)

10 A

Breaking Capacity (Icn)

6 kA

Operational Voltage (Ue)

230-400 V

Insulation Voltage (Ui)

500 V

Impulse Withstand Voltage (Uimp)

4000 V

Frequency

50-60 Hz

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Dimensions (H x W x D)

83 x 17.50 x 70 mm

Cable Range (Rigid)

1-35 mm²

Cable Range (Flexible)

1-25 mm²

Mounting

DIN rail, 360° mounting possible

Documents

datasheet MBN110W
