MBN163W

Photo is representative

Hager MCB 63A Type B 6kA 1P

Product Information

Stock Code MBN163W
GTIN 3250614344008
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €19.60

Gross price

€24.11

Branch Stock

Monaghan

Stock status: 2 in stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: In stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 7 in stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

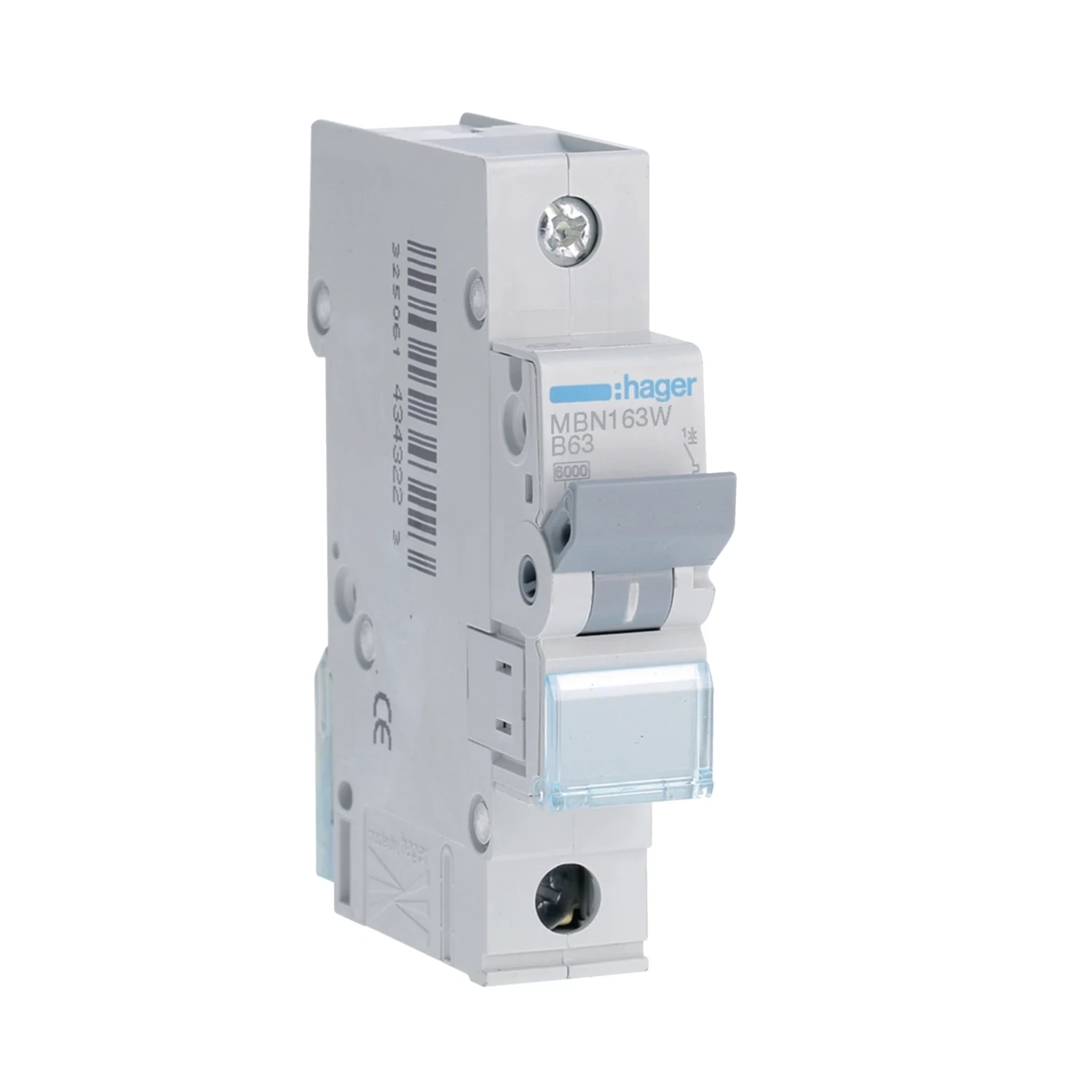

Single-pole miniature circuit breaker from Hager, 63A rated with B-curve trip characteristic. Fits standard DIN rail enclosures, 1 module wide. B-curve trips at 3-5x In, suited to resistive and lighting loads with low inrush. 6kA breaking capacity at 230V AC, rising to 10kA Icu at 400V AC.

  • 1P, 63A, Type B
  • 6kA Icn / Icu 10kA at 400V
  • Ue 230-400V AC, Ui 500V
  • Terminal accepts 1-35mm² solid or 1-25mm² flexible conductors
  • IP20, operating range -25°C to 70°C
Specifications

Poles

1P

Rated Current (In)

63 A

Trip Curve

B

Rated Short-Circuit Breaking Capacity (Icn) at 230V AC

6 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu) at 400V AC

10 kA

Rated Operational Voltage (Ue)

230 - 400 V

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

Frequency

50 - 60 Hz

Operating Temperature Range

-25 - 70 °C

IP Rating

IP20

Terminal Cross-Section (Solid Conductors)

1 - 35 mm²

Terminal Cross-Section (Flexible Conductors)

1 - 25 mm²

Dimensions (H x W x D)

83 mm x 17.5 mm x 70 mm

Documents

datasheet MBN163W
