Solar PV Range - solar panels, Solis hybrid inverters and batteries

Solar PV Range

Everything for a solar PV install, from the roof to the consumer unit: complete tile and slate roof kits, high-output panels, Solis hybrid inverters and IntelliHome batteries, Enerack mounting, Suntree DC isolators and firefighter switches, MC4 connectors and tools, and solar diverters.

Roof to Consumer Unit, in One Place

Whether you're fitting a full hybrid system or picking up the parts for a single string, this range covers the whole install: panels, a hybrid inverter and battery, the mounting for tile, slate, metal and flat roofs, DC isolation and firefighter switches, MC4 connectors, and diverters to put surplus generation to use.

  • ― Complete kits ― 5.7kWp to 9.5kWp for tile and slate roofs
  • ― Hybrid ― Solis S6 inverters with IntelliHome LiFePO4 batteries
  • ― Mounting ― Enerack rails, hooks and clamps, plus metal and flat roof options
  • ― Protection ― Suntree DC isolators, firefighter switches, PV fuse holders and DC MCBs

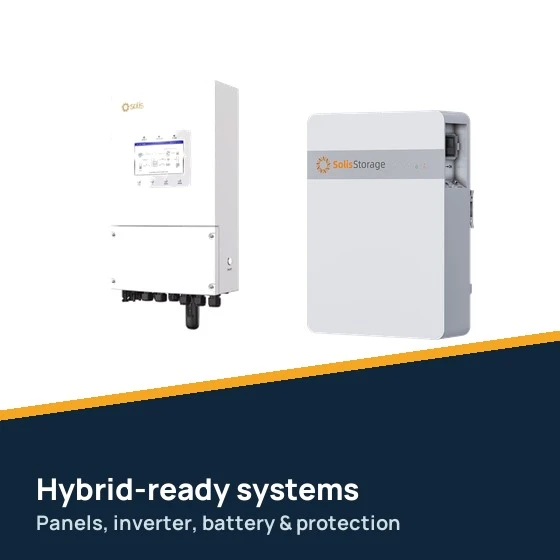

Solis hybrid inverter and IntelliHome solar battery

Complete Solar Kits ― Tile & Slate

Each kit is built around Longi Hi-MO X10 475W full-black dual-glass panels, a Solis S6 single-phase hybrid inverter and a Solis IntelliHome 5kWh LiFePO4 battery, with the mounting matched to the roof.

  • ― 12 to 20 panels: 5.7kWp, 6.65kWp, 7.6kWp, 8.55kWp and 9.5kWp
  • ― Enerack pantile or slate mounting: hooks, rails, splices, mid and end clamps, end caps
  • ― DC and AC protection, including a 1500V DC firefighter switch and 2-string DC isolator
  • ― myenergi eddi and harvi, plus 100m of 4mm² solar cable
5.7kW solar kit for tile roofs: 12 Longi Hi-MO X10 475W full-black panels, Solis S6 3.6kW hybrid inverter, Solis IntelliHome 5kWh battery, eddi diverter, harvi sensor, firefighter switch, DC isolator, Garo RCBO and MC4 connectors

Solar Kits for Tile Roofs

View all kits

Solar Kits for Slate Roofs

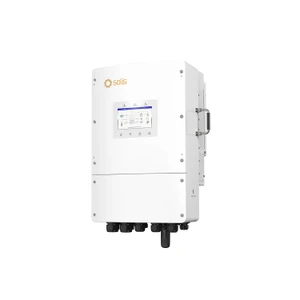

Solis S6 Hybrid Inverters

Solis S6 hybrid inverters work with low-voltage 40-60V lithium-ion or lead-acid batteries and provide a backup output when the grid goes down. Single-phase models run from 3.6kW to 10kW, and three-phase models come in 10kW and 15kW.

  • ― Single-phase 3.6, 5, 6, 8 and 10kW; three-phase 10 and 15kW
  • ― Two MPPT trackers, IP66 rated
  • ― Backup switchover under 4ms on 3.6kW to 8kW single-phase models, under 10ms on 10kW and three-phase
  • ― Three-phase models accept up to 1000V DC with 97.5% maximum efficiency
S6EH1P6KLPLUS

Solis Hybrid Inverters

All inverters

solis

Solis IntelliHome 10kWh Battery

LiFePO4 storage for Solis low-voltage hybrid systems.

  • 10kWh LiFePO4, 48V low voltage, 100% depth of discharge
  • More than 6000 cycles, built-in heating for operation down to -20°C
  • IP66 for outdoor wall or floor mounting, expandable to 8 units (80kWh)
SIH10K Stock status: 5 in stock

Net price: €2187.50

Gross price: €2690.62

SIH10K

Solis IntelliHome Batteries

5kWh, 10kWh and 16kWh LiFePO4 modules for Solis low-voltage hybrid inverters.

Solar Panels

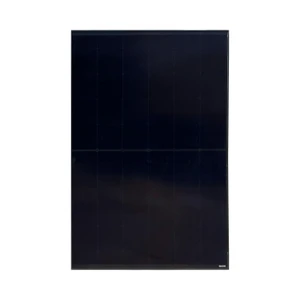

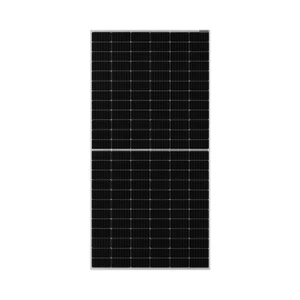

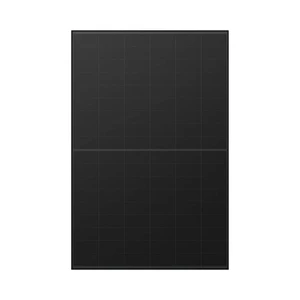

From a 470W full-black panel for residential roofs to 630W and 650W dual-glass bifacial panels: Longi 650W back-contact at 24.1% efficiency, 630W N-type TOPCon at 23.3%, and 490W and 470W back-contact full-black panels.

All panels

Enerack Mounting for Pitched Roofs

Anodised Al6005-T5 aluminium and SUS 304 stainless steel components for fixing panels to pitched tile roofs.

  • ― Adjustable flat-tile roof hooks, landscape or portrait
  • ― 52mm rail in 3.6m lengths, with splices and end caps
  • ― Mid clamps (30-40mm) with integrated earthing clip, and 30mm black end clamps
  • ― Stainless cable clips for a tidy rail run
Enerack solar mounting rail 52mm anodized aluminum profile for tripod PV systems

Rails, Hooks & Clamps

All mounting

Metal, Fibre Cement & Flat Roofs

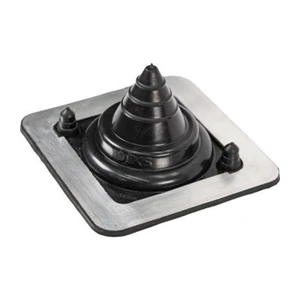

Trapezoidal rails and M10 hanger bolts for metal and fibre cement roofs, Clenergy rail, adjustable ballast supports for flat roofs, and Dektite flashing for cable penetrations.

suntree

Suntree Firefighter Safety Switch, 4 String

Remote DC isolation at the array for up to four strings.

  • 1500V DC, 40A, 8 poles for 4 strings, with MC4 connectors
  • 230V AC control supply, thermal shutdown at 70°C
  • IP65, Class II, CE to EN 60947-3
SISOH404 Stock status: In stock

Net price: €181.00

Gross price: €222.63

Suntree 40A 8P 1500VDC Firefighter Rapid Shutdown Switch IP65 4 String

DC Isolation & Protection

Suntree DC isolators, firefighter switches for 2 to 6 strings, PV fuse holders and a 125A DC MCB, plus PV warning labels for isolators, junction boxes and inverters.

MC4 Connectors & Tools

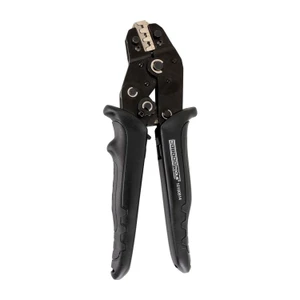

IP67 MC4-type connector pairs, an unlocking spanner, and crimping and mounting tools for MC4 terminations.

Diverters & Energy Monitoring

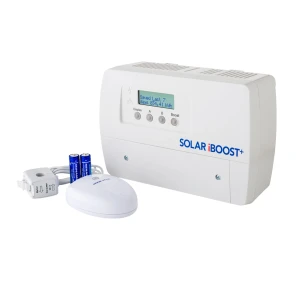

Put surplus generation to work: the myenergi eddi and Marlec iBoost+ divert export to an immersion or heating load, while CT clamps and the wireless harvi sensor measure import and export.

EV charging range

Planning a System

Start with the roof and the supply: the roof type sets the mounting, and a single-phase or three-phase supply sets the inverter. Size the array to the inverter’s recommended PV input, and add battery storage to suit how much of the day’s generation the house can use. Grid connection, DC isolation and labelling must follow the current wiring rules and network requirements, and the system should be installed and certified by a registered electrician. Everything here is stocked, in-branch and online, at Electrical Wholesaler.
