Solis S6-EH3P10K02-NV-YD-L 10kW Three Phase Hybrid Inverter, LV Battery
Product Information
priced individually
Net price: €1875.00
Gross price
€2306.25
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items

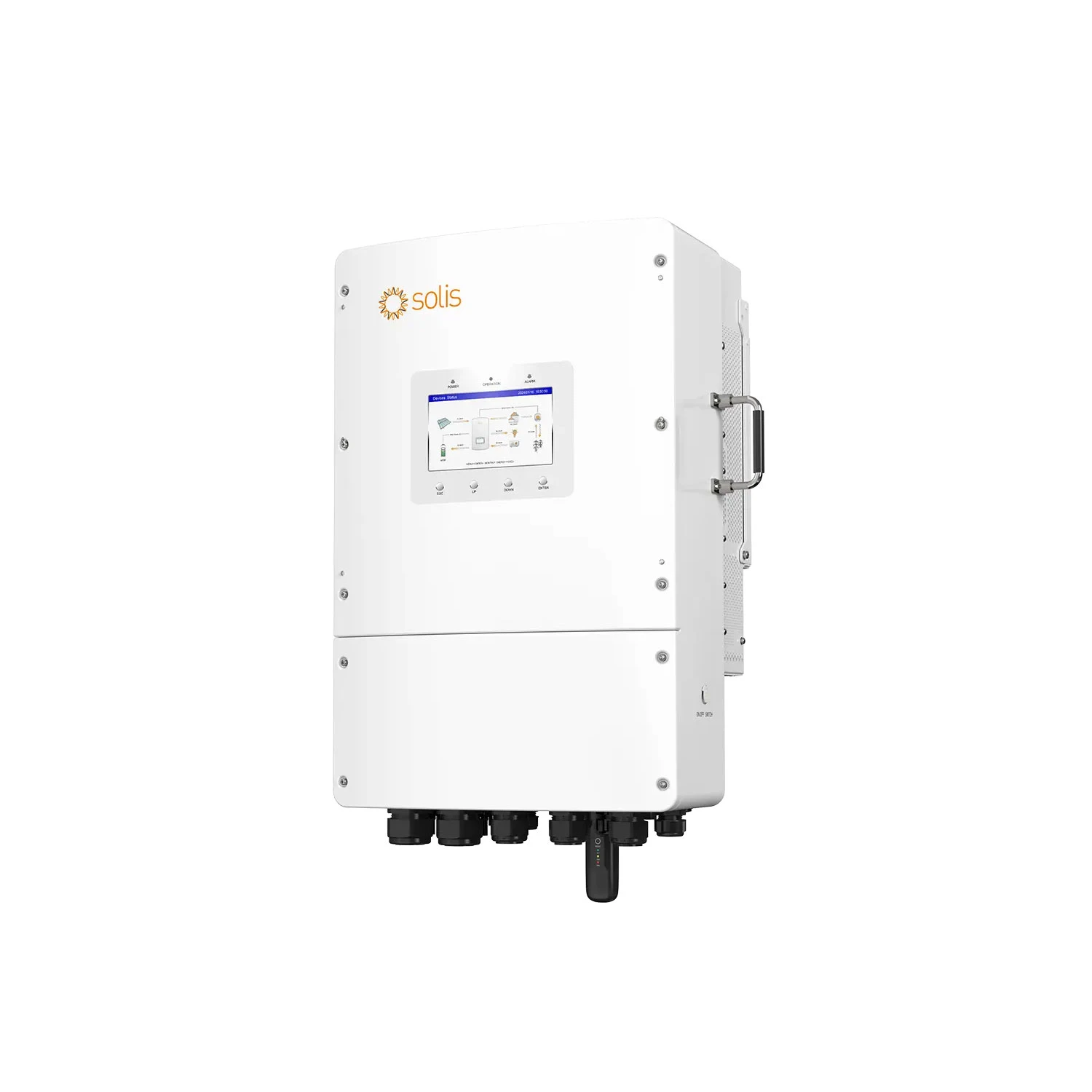

The Solis S6-EH3P10K02-NV-YD-L is a three-phase hybrid energy-storage inverter rated at 10kW (10kVA) for 400V (3/N/PE) supplies. It works with low-voltage Li-ion or lead-acid batteries in the 40-60V range across two battery ports, with a maximum charge and discharge current of 220A. The inverter has 2 MPPTs and three input strings, an MPPT range of 200-850V, accepts up to 1000V DC and up to 16kW of usable PV, and reaches a maximum efficiency of 97.5%. An integrated backup output delivers 10kW with a switchover time under 10ms, and up to six units can run in parallel. The IP66 enclosure measures 430 x 660 x 305mm and weighs 42kg. Grid connection is certified by TÜV Rheinland to EN 50549-1 and EN 50549-10. Supplied with a 5-year warranty.
