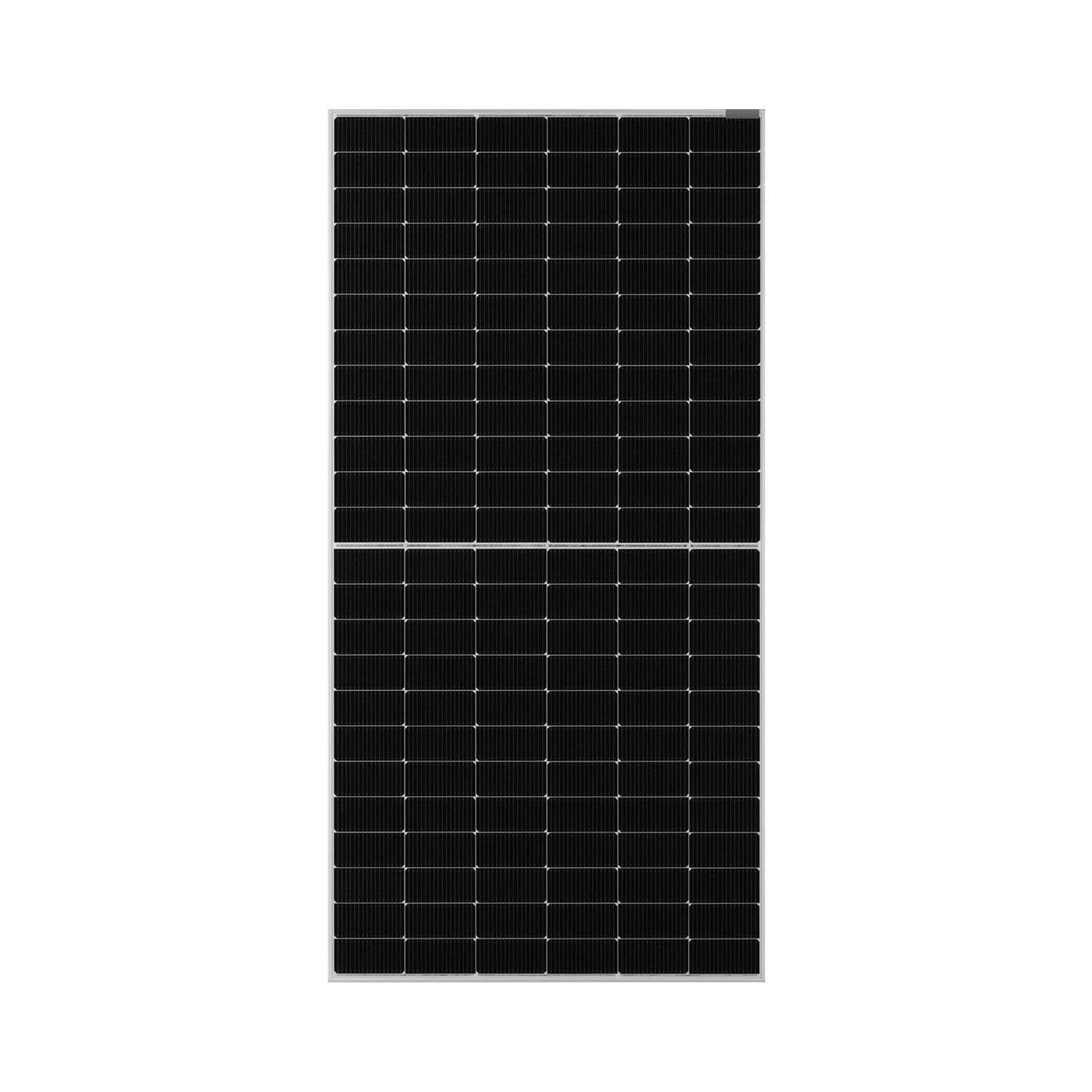

Photo is representative
630W TOPCon Bifacial Solar Panel | Dual Glass | 23.3% Efficiency
Product Information
priced individually
Net price: €115.44
Gross price
€141.99
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
A 630W bifacial PV module using N-type TOPCon SMBB half-cut cells in dual-glass construction, for commercial, agricultural and ground-mount arrays where rear-side gain can be captured.
At STC (AM1.5, 1000W/m², 25°C): - Pmax 630W, module efficiency 23.3%, power tolerance 0~+3% - Voc 49.87V, Isc 16.05A, Vmp 41.45V, Imp 15.20A - Temperature coefficient of Pmax -0.28%/°C, Voc -0.23%/°C, Isc +0.04%/°C - Maximum system voltage 1500V, maximum series fuse 30A, NOCT 45±2°C
Construction is 132 cells (6×22) between two 2.0mm AR-coated heat-strengthened glass sheets in an anodized aluminium frame, 2382×1134×30mm at 33.7kg, with an IP68 junction box carrying three diodes, 4mm² output cable and MC4-compatible connectors. Bifaciality is 80±5%. Static loading is 5400Pa front and 2400Pa rear, with an IEC Class A fire rating.
Certified to IEC 61215:2021 and IEC 61730:2023, with a 15-year product warranty and a 30-year linear power warranty.
