S6EH1P6KLPLUS

Photo is representative

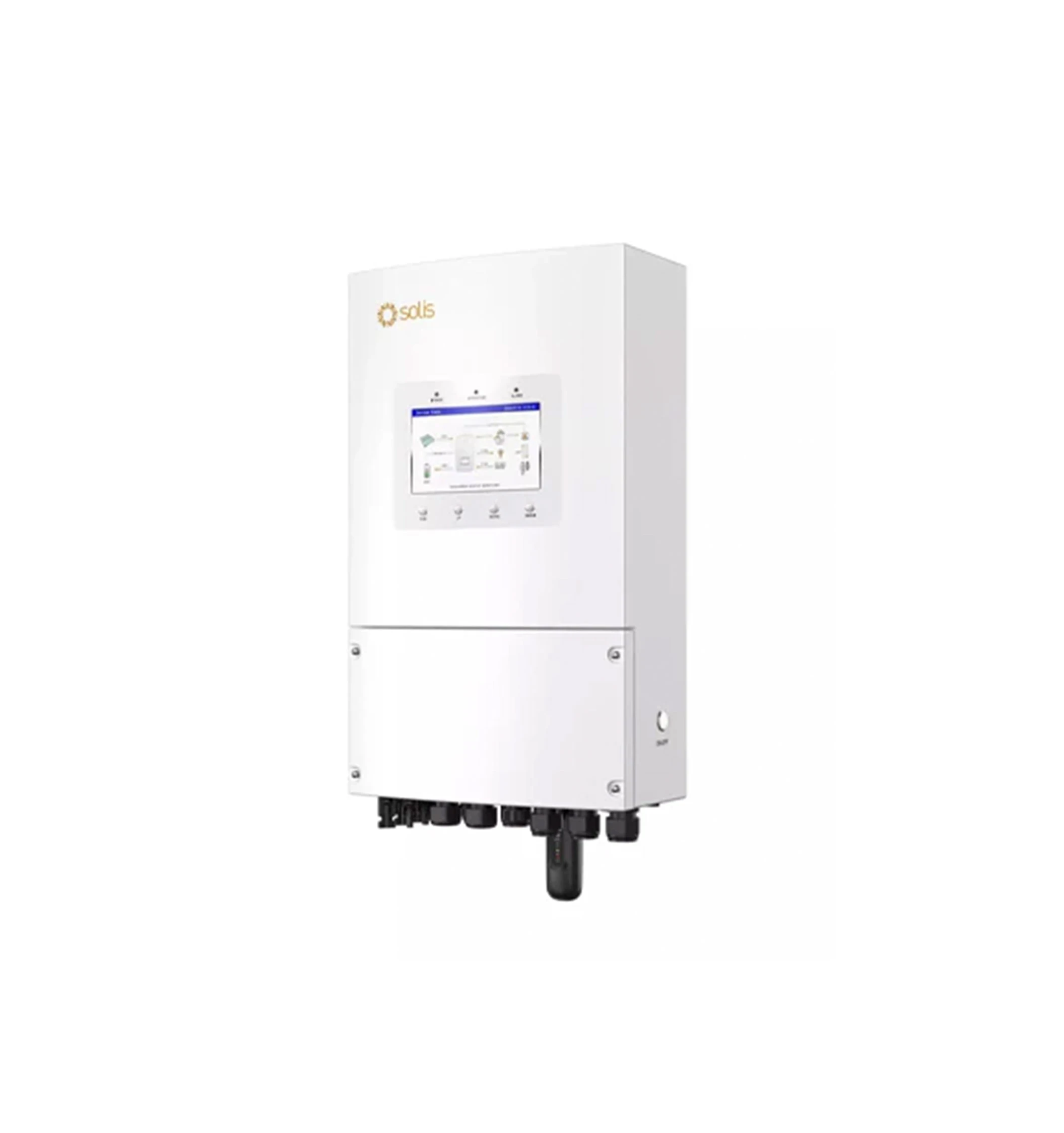

Solis S6-EH1P6K-L-PLUS 6kW Single Phase Hybrid Inverter, 48V Battery

Product Information

Stock Code S6EH1P6KLPLUS
GTIN —
Stock status: Out of stock

priced individually

Net price: €1078.85

Gross price

€1326.98

The Solis S6-EH1P6K-L-PLUS is a single-phase hybrid inverter rated at 6kW for residential solar and battery storage systems. It accepts up to 9.6kW of usable PV input across two MPPT trackers with a 90-435V MPPT range and a 500V maximum DC input, and works with 40-60V low-voltage lithium-ion or lead-acid battery banks at up to 6kW charge and discharge, equivalent to 135A. Grid output is 220/230V at 50/60Hz with a maximum output current of 27.3A. The integrated backup output transfers in under 4ms and sustains twice its rated power for 10 seconds, and the unit is generator-compatible to extend backup duration during an outage. Maximum efficiency is 96.2% with a European weighted efficiency of 94.7%. The enclosure is rated IP66 for outdoor installation and operates from -40°C to +60°C.

Specifications

Rated output power

6 kW (6 kVA)

Grid connection

1/N/PE, 220 V / 230 V, 50/60 Hz

Maximum output current

27.3 A (220 V) / 26.1 A (230 V)

Maximum usable PV input power

9.6 kW

Maximum DC input voltage

500 V

MPPT voltage range

90-435 V

MPPT trackers / max strings

2 / 4

Battery type and voltage

Li-ion or lead-acid, 40-60 V

Max charge / discharge power

6 kW (135 A)

Back-up switch time

<4 ms, 200% of rated power for 10 s

Maximum efficiency

96.2% (EU 94.7%)

Dimensions (W×H×D)

335 × 560 × 227 mm

Ingress protection

IP66

Operating temperature

-40°C to +60°C

Communication

RS485, CAN; optional Wi-Fi, GPRS, LAN

Warranty

5 years
