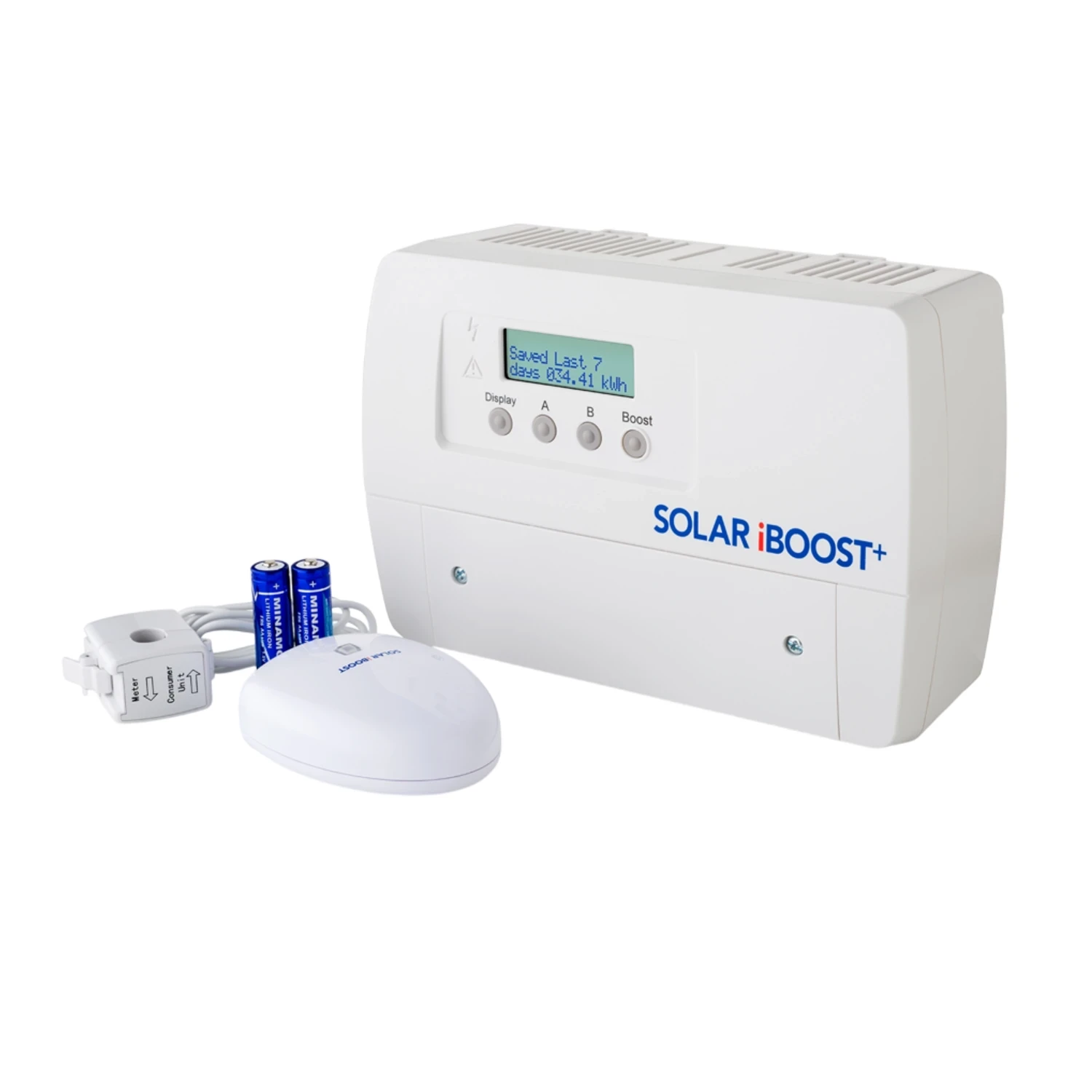

Marlec Solar iBoost+ Controller 13A 230V AC Export Diverter IP20

Product Information

Stock Code CA2015
GTIN —
Stock status: 7 available for delivery

priced individually

Net price: €382.44

Gross price

€470.40

Branch Stock

Monaghan

Stock status: 3 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: 3 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: Out of stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Solar iBoost+ Controller from Marlec. A PV export diverter that redirects surplus solar generation to an immersion heater instead of exporting it to the grid.

Uses pulse width modulation to control load and maintains a 100W export threshold before diverting. Supports 2 cascading load connections for multi-stage diversion.

  • 220-240Vac, 50Hz supply
  • 13A resistive load, max 3kW immersion
  • IP20 enclosure, 0-40°C operating range
  • Backlit LCD display with push button programming
  • Boost function in 15 minute increments up to 2 hours
  • Wireless link to optional iBoost Buddy sender
Specifications

Operating Voltage

220-240Vac

Frequency

50Hz

Maximum Load

13A Resistive (max 3kW immersion)

Load Connections

2 (cascading)

Cut-in Threshold

100W of export is maintained

IP Rating

IP20

Operating Temperature

0-40°C

Radio Frequency

868.3MHz or 915MHz

Power Consumption

1-3W

Rated Impulse Voltage Withstand

4kV

Dimensions

225 x 158 x 92mm

Weight

1.37kg

Compliance

EN60730-2-7, EN301 489-3, EN300 220, EN60335-1, EN55014-1, EN55022
