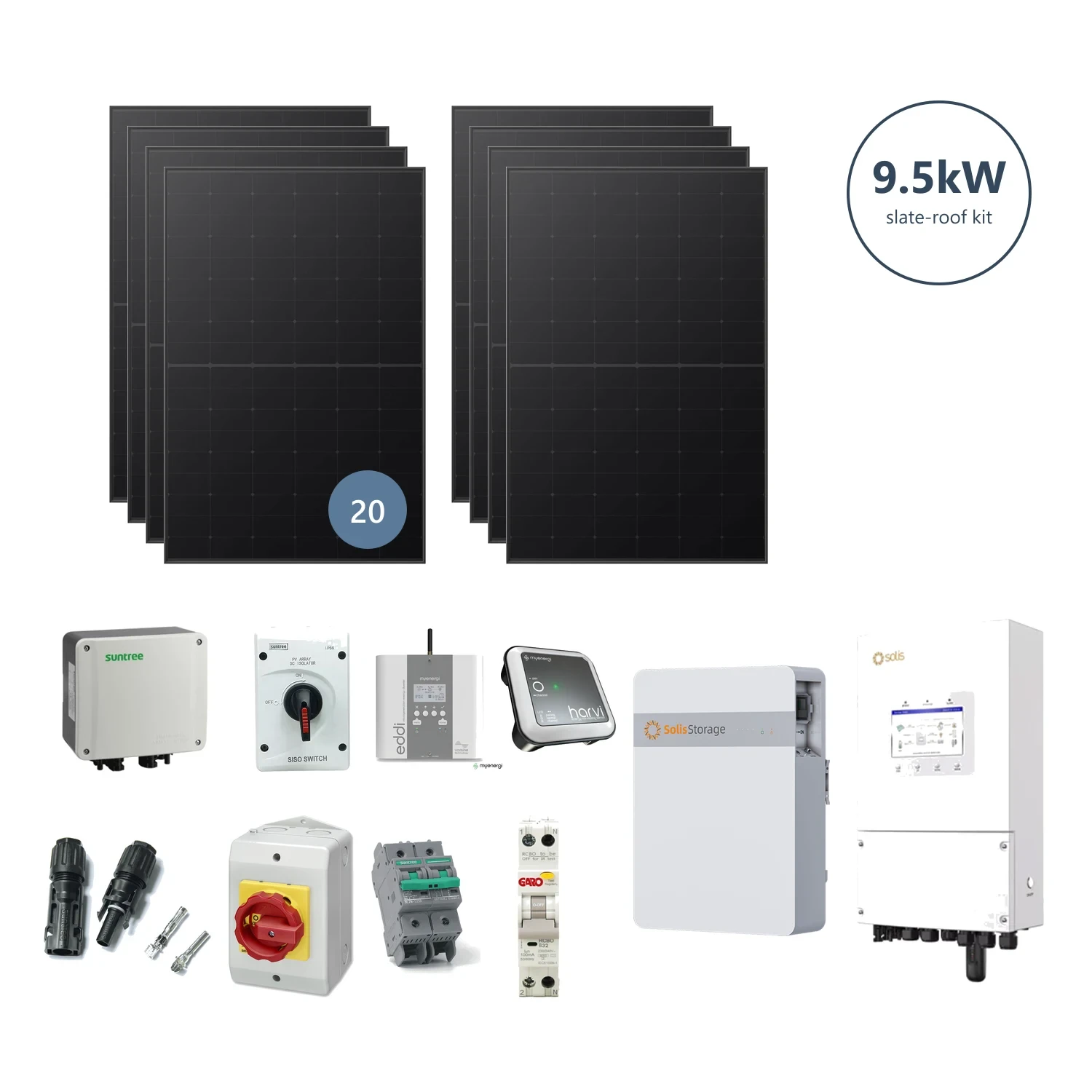

9.5kW solar kit for slate roofs: 20 Longi Hi-MO X10 475W full-black panels, Solis S6 5kW hybrid inverter, Solis IntelliHome 5kWh battery, eddi diverter, harvi sensor, firefighter switch, DC isolator, Garo RCBO and MC4 connectors

Photo is representative

9.5kW Solar Kit - Slate Roof | Longi 475W & Solis 5kWh Battery

Product Information

Stock Code SOLARKIT5-SLATE-9.5KW
GTIN —
Stock status: Out of stock

priced individually

Net price: €5906.50

Gross price

€7265.00

This 9.5kW hybrid solar kit suits larger family homes on slate roofs and is supplied complete, from roof hook to consumer unit. Generation comes from 20 Longi Hi-MO X10 back-contact panels rated at 475W each, in a full-black dual-glass finish measuring 1800 x 1134 x 30mm. A Solis S6-EH1P5K-L-PLUS 5kW single-phase hybrid inverter handles conversion and battery management, paired with a Solis IntelliHome 5kWh LiFePO4 battery for storage. Mounting is an Enerack slate system with 46 roof hooks, 50.4m of rail and matched mid and end clamps. DC protection covers a 1500V firefighter safety switch, a two-string DC isolator, a 125A battery breaker and a Garo RCBO. A myenergi eddi diverts surplus generation to hot water, with a harvi wireless sensor. 100m of 4mm2 solar cable and MC4 connectors are included.

Specifications

Array size

9.5 kWp (20 × 475 W)

Solar panels

Longi Hi-MO X10 LR7-54HVD-475M, back contact, dual glass, full black

Panel dimensions

1800 × 1134 × 30 mm

Inverter

Solis S6-EH1P5K-L-PLUS, 5 kW single phase hybrid

Battery storage

Solis IntelliHome 5 kWh LiFePO4, 48 V low voltage

Roof type

Slate

Mounting system

Enerack — 46 slate hooks, 14 × 3.6 m rails, 12 splices, 36 mid clamps, 8 end clamps, 8 end caps

DC protection

1500 V DC firefighter switch, 2-string DC isolator, 125 A battery MCB

AC protection

Garo 32 A 2P 100 mA RCBO, Sontheimer 32 A 3P IP65 isolator

Energy diversion

myenergi eddi with CT, plus harvi wireless sensor

Solar cable

50 m red + 50 m black, 4 mm² H1Z2Z2-K

Connectors

Suntree MC4, 5 pairs

What's included

20 x 475W Solar Panel, Longi Hi-MO X10 Full Black Dual Glass (LR754HVD475M)

1 x 5kW Single Phase Hybrid Inverter, Solis S6 (S6EH1P5KLPLUS)

1 x 5kWh LiFePO4 Battery, Solis IntelliHome (SIH5K)

1 x 40A 4-Pole 2-String Firefighter Safety Switch 1500VDC (SISOH4)

1 x 2-String DC Isolator Switch (SISO40)

1 x 125A 2P 600V DC Battery Circuit Breaker (SL7N125D)

1 x 32A 3-Pole IP65 Isolator, Sontheimer (RL0323PMD1)

1 x 32A 2P 100mA B Curve RCBO, Garo (RCBO1M2PB32100)

1 x EDDI Microgen Energy Diverter c/w CT (EDDI-16A1P02H)

1 x HARVI Wireless Energy-Harvesting Sensor (HARVI-65A3PR)

1 x MC4 Connectors, 5 Pairs (STMC4)

50 x 4.0mm² Single Core Solar Cable Red (4SOLARRED-KU5)

50 x 4.0mm² Single Core Solar Cable Black (4SOLARBLACK-KU5)

46 x Slate Roof Hook with Screws, Enerack (ERKTRHF03)

14 x 3600mm Mounting Rail Black, Enerack (ERKR52)

12 x Splice for Rail Kit, Enerack (ERKSFR01)

36 x Universal Adjustable Mid Clamp 30-40mm Black (ERKEICB)

8 x Universal End Clamp 30-35mm Black (ERKAECB)

8 x Rail End Cap (ERKREC)
