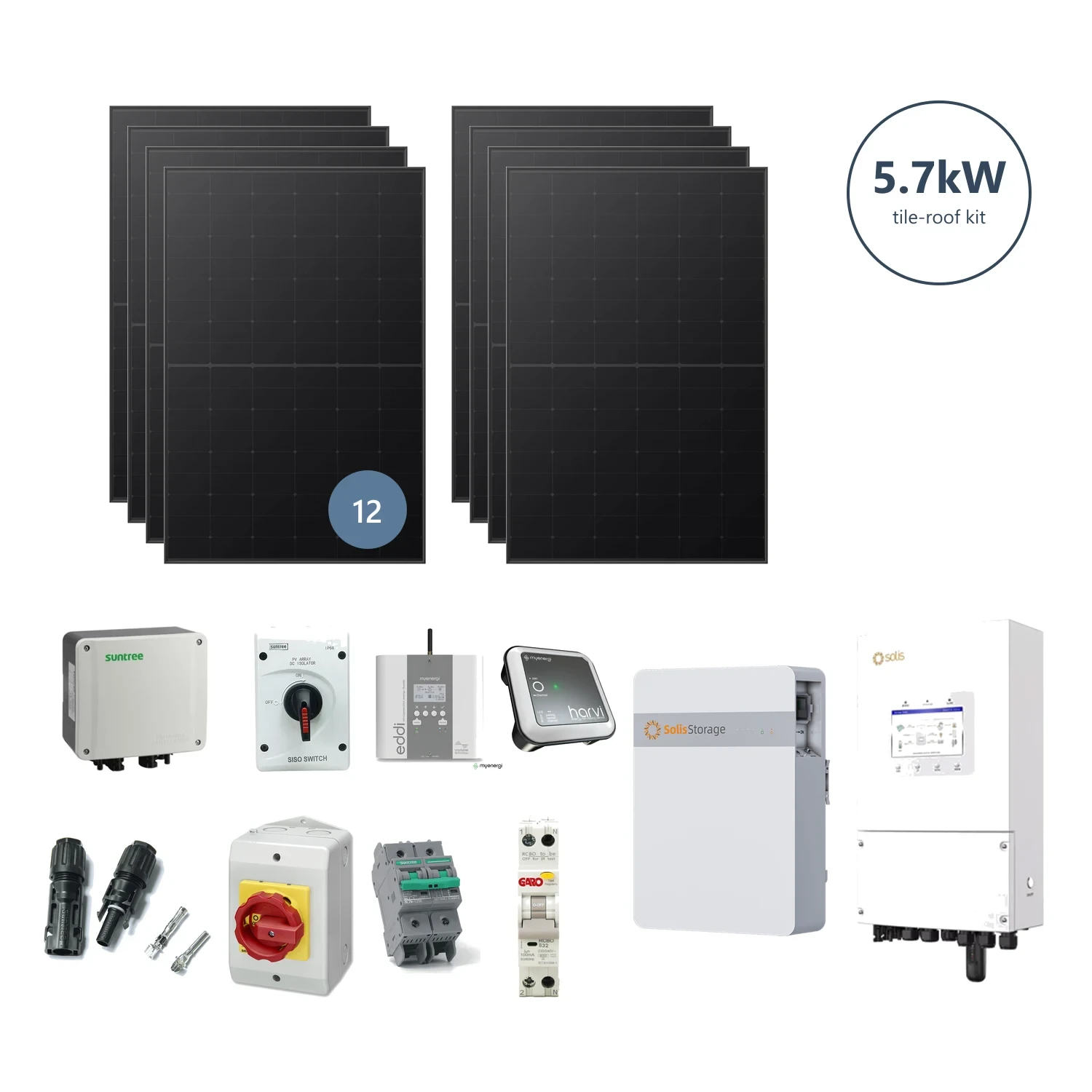

5.7kW solar kit for tile roofs: 12 Longi Hi-MO X10 475W full-black panels, Solis S6 3.6kW hybrid inverter, Solis IntelliHome 5kWh battery, eddi diverter, harvi sensor, firefighter switch, DC isolator, Garo RCBO and MC4 connectors

Photo is representative

5.7kW Solar Kit - Tile Roof | Longi 475W & Solis 5kWh Battery

Product Information

Stock Code SOLARKIT1-TILE-5.7KW
GTIN —
Stock status: Out of stock

priced individually

Net price: €4491.87

Gross price

€5525.00

This 5.7kW hybrid solar kit is the entry point of the range and is specified for pantile roofs, supplied complete from roof hook to consumer unit. Generation comes from 12 Longi Hi-MO X10 back-contact panels rated at 475W each, in a full-black dual-glass finish measuring 1800 x 1134 x 30mm. A Solis S6-EH1P3.6K-L-PLUS 3.6kW single-phase hybrid inverter handles conversion and battery management, paired with a Solis IntelliHome 5kWh LiFePO4 battery for storage. Mounting is an Enerack pantile system with 30 roof hooks, 28.8m of rail and matched mid and end clamps. DC protection covers a 1500V firefighter safety switch, a two-string DC isolator, a 125A battery breaker and a Garo RCBO. A myenergi eddi diverts surplus generation to hot water, with a harvi wireless sensor. 100m of 4mm2 solar cable and MC4 connectors are included.

Specifications

Array size

5.7 kWp (12 × 475 W)

Solar panels

Longi Hi-MO X10 LR7-54HVD-475M, back contact, dual glass, full black

Panel dimensions

1800 × 1134 × 30 mm

Inverter

Solis S6-EH1P3.6K-L-PLUS, 3.6 kW single phase hybrid

Battery storage

Solis IntelliHome 5 kWh LiFePO4, 48 V low voltage

Roof type

Pantile

Mounting system

Enerack — 30 pantile hooks, 8 × 3.6 m rails, 4 splices, 20 mid clamps, 8 end clamps, 8 end caps

DC protection

1500 V DC firefighter switch, 2-string DC isolator, 125 A battery MCB

AC protection

Garo 32 A 2P 100 mA RCBO, Sontheimer 32 A 3P IP65 isolator

Energy diversion

myenergi eddi with CT, plus harvi wireless sensor

Solar cable

50 m red + 50 m black, 4 mm² H1Z2Z2-K

Connectors

Suntree MC4, 5 pairs

What's included

12 x 475W Solar Panel, Longi Hi-MO X10 Full Black Dual Glass (LR754HVD475M)

1 x 3.6kW Single Phase Hybrid Inverter, Solis S6 (S6EH1P3.6KLPLUS)

1 x 5kWh LiFePO4 Battery, Solis IntelliHome (SIH5K)

1 x 40A 4-Pole 2-String Firefighter Safety Switch 1500VDC (SISOH4)

1 x 2-String DC Isolator Switch (SISO40)

1 x 125A 2P 600V DC Battery Circuit Breaker (SL7N125D)

1 x 32A 3-Pole IP65 Isolator, Sontheimer (RL0323PMD1)

1 x 32A 2P 100mA B Curve RCBO, Garo (RCBO1M2PB32100)

1 x EDDI Microgen Energy Diverter c/w CT (EDDI-16A1P02H)

1 x HARVI Wireless Energy-Harvesting Sensor (HARVI-65A3PR)

1 x MC4 Connectors, 5 Pairs (STMC4)

50 x 4.0mm² Single Core Solar Cable Red (4SOLARRED-KU5)

50 x 4.0mm² Single Core Solar Cable Black (4SOLARBLACK-KU5)

30 x Pantile Roof Hook with Screws, Enerack (ERKTRHT15)

8 x 3600mm Mounting Rail Black, Enerack (ERKR52)

4 x Splice for Rail Kit, Enerack (ERKSFR01)

20 x Universal Adjustable Mid Clamp 30-40mm Black (ERKEICB)

8 x Universal End Clamp 30-35mm Black (ERKAECB)

8 x Rail End Cap (ERKREC)
