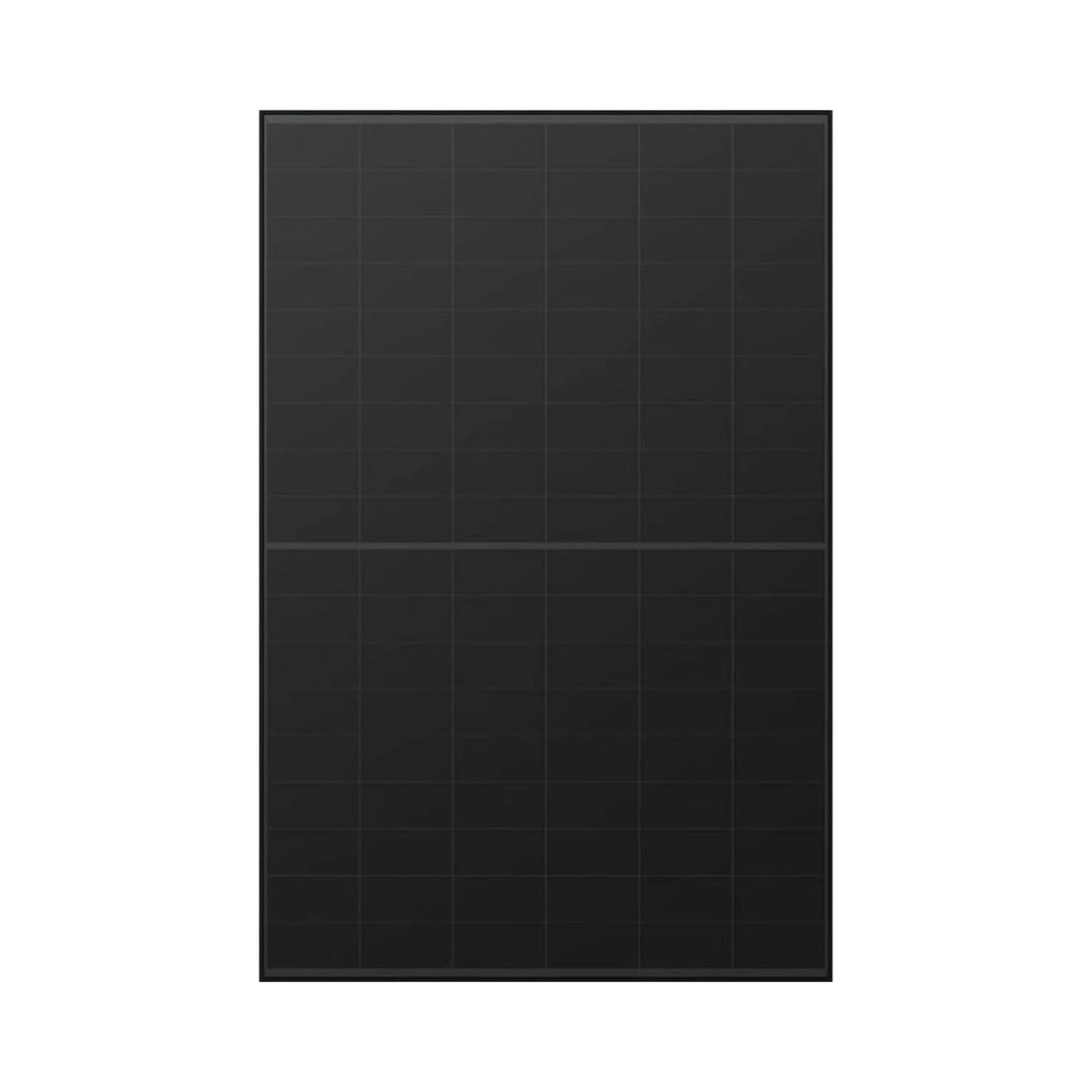

Photo is representative
470W ABC Mono-Glass Solar Panel | Full Black | 23.6% Efficiency
Product Information
priced individually
Net price: €91.21
Gross price
€112.18
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
A 470W mono-glass PV module using N-type ABC (all back contact) cells with no front gridlines, supplied in a full-black finish for residential rooftops.
At STC (AM1.5, 1000W/m², 25°C): - Pmax 470W, module efficiency 23.6%, power sorting tolerance 0~+3% - Voc 41.18V, Isc 14.32A, Vmp 34.74V, Imp 13.54A - Temperature coefficient of Pmax -0.26%/°C, Voc -0.22%/°C - Maximum system voltage DC1500V, maximum series fuse 25A
Construction is 108 cells (6×18) behind 3.2mm tempered front glass in a black anodized aluminium frame, 1757×1134×30mm, with an IP68 junction box carrying three bypass diodes and Stäubli MC4-EVO2A connectors on 1200mm 4mm² leads. Static loading is 5400Pa front and 2400Pa rear, with a fire rating of IEC Class C.
Certified to IEC 61215 (2021) and IEC 61730 (2023), with a 25-year product warranty and a 30-year performance warranty.
