MU363A

Photo is representative

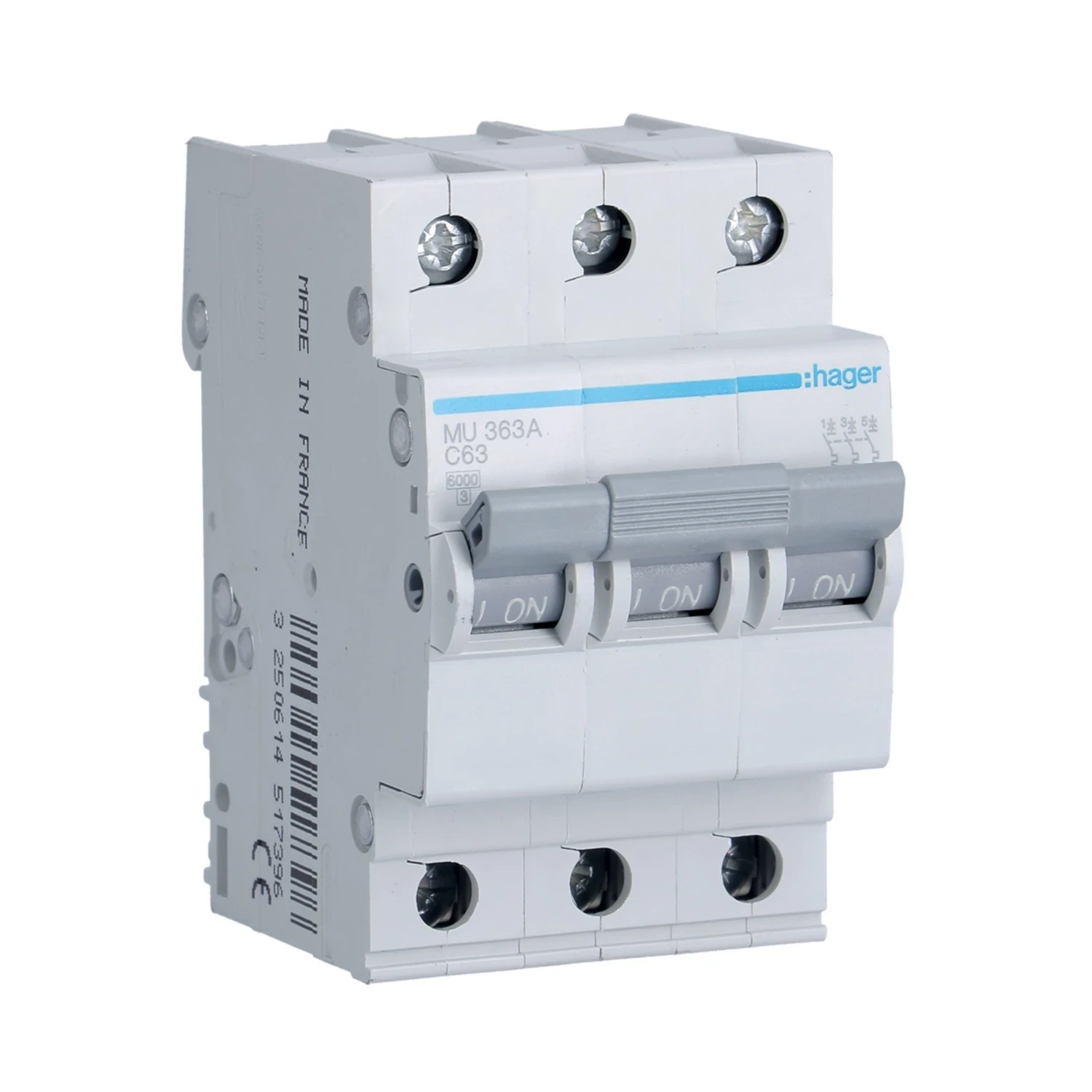

Hager MU363A 63A 3P C-Curve MCB 6kA 3 Module

Product Information

Stock Code MU363A
GTIN 3250614517396
Stock status: Available for delivery

priced individually

Net price: €45.11

Gross price

€55.49

Branch Stock

Monaghan

Stock status: Out of stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: 4 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 3 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MU363A three-pole MCB rated 63A at 30°C with C-curve trip characteristic. Designed for final circuit protection in commercial and industrial installations on DIN rail.

  • 6kA breaking capacity to IEC 60898-1
  • 400V AC rated, 50–60 Hz
  • Screw terminals accept 1–35 mm² solid or 1–25 mm² flexible conductors
  • Operating range: –25°C to 70°C
  • IP20 rated, 3 modules wide (52.5mm)
Specifications

Product Code

MU363A

Current Rating (at 30°C)

63A

Poles

3P

Trip Curve

C

Breaking Capacity (IEC 60898-1)

6kA at 230V AC

Voltage Rated

400V AC

Insulation Voltage

500V

Frequency

50–60 Hz

Operating Temperature

-25°C to 70°C

IP Rating

IP20

Mounting Type

DIN rail, 360° rotatable

Module Width

3 modules

Terminal Type

Screw terminal

Cable Range (Solid)

1–35 mm²

Cable Range (Flexible)

1–25 mm²

Dimensions (H×W×D)

83 × 52.5 × 70 mm

Terminal Torque

2.80 Nm

RoHS Compliant

Yes

Documents

datasheet MU363A
