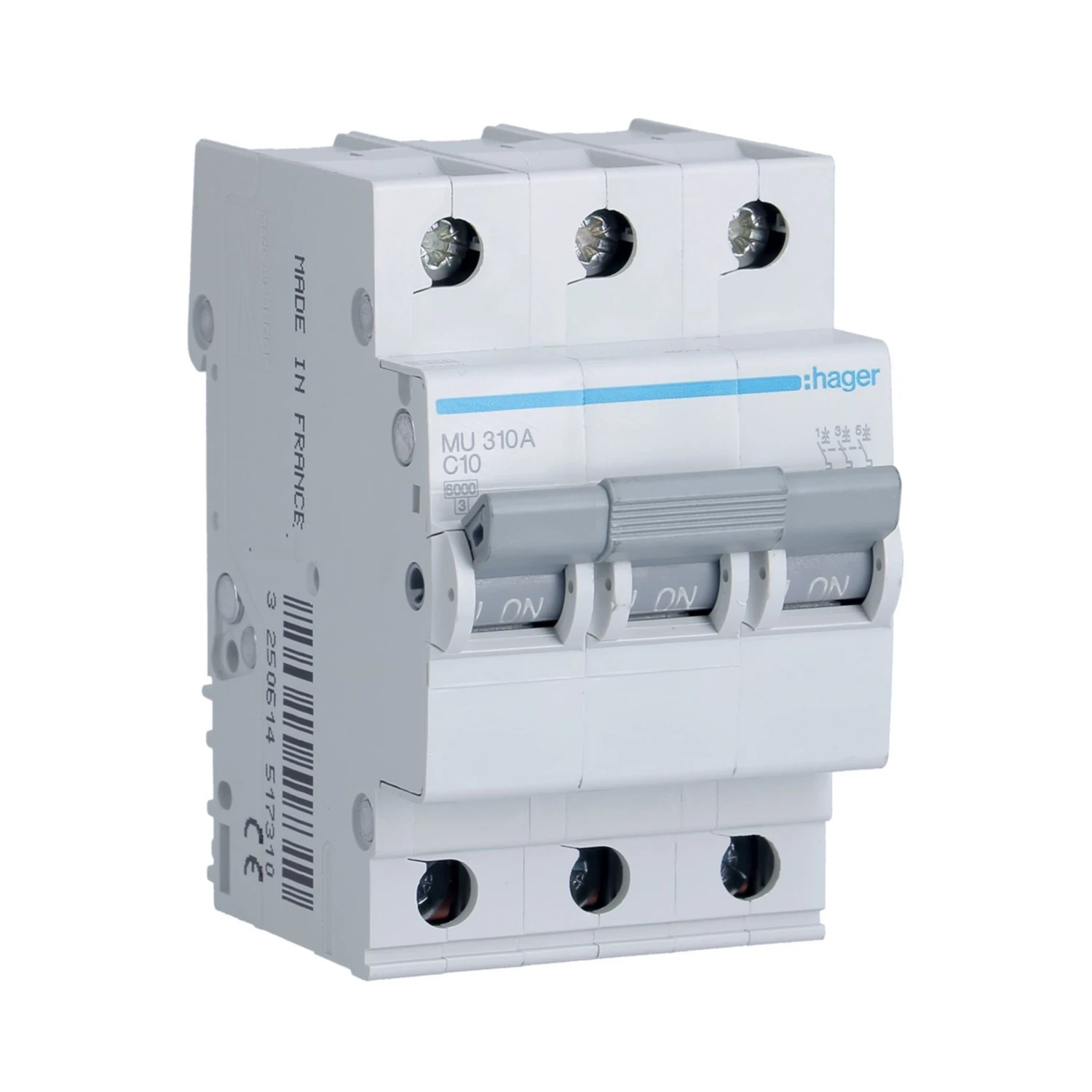

Hager MU310A 10A 3P C-Curve MCB 6kA 3 Module

Product Information

Stock Code MU310A
GTIN —
Stock status: Available for delivery

priced individually

Net price: €36.25

Gross price

€44.59

Branch Stock

Monaghan

Stock status: 7 in stock
Closed · Opens Thu 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: 5 in stock
Closed · Opens Thu 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 6 in stock
Closed · Opens Thu 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

3-pole MCB for distribution boards and three-phase circuits. 10A C-curve with 6kA breaking capacity to IEC 60898-1. Rated 400V AC, 50–60 Hz. Mounts on DIN rail as a 3-module device with 360° rotation possible.

  • Current rating: 10A at 30°C, temperature-compensated
  • Breaking capacity: 6kA (IEC 60898-1), 7.5kA service (IEC 60947-2)
  • Terminal range: 1–35 mm² rigid, 1–25 mm² flexible conductors
  • Operating temperature: −25°C to 70°C
Specifications

Current Rating

10A

Poles

3P

Trip Curve

C

Breaking Capacity (Icn)

6kA (IEC 60898-1)

Service Breaking Capacity (Ics)

7.5kA (IEC 60947-2, 230V AC)

Voltage

400V AC

Frequency

50–60 Hz

Modules

3

Terminal Type

Screw terminal

Cable Range

1–35 mm² (rigid), 1–25 mm² (flexible)

IP Rating

IP20

Operating Temperature

−25°C to 70°C

Dimensions (H × W × D)

83 × 52.5 × 70 mm

Documents

datasheet MU310A
