MU332A

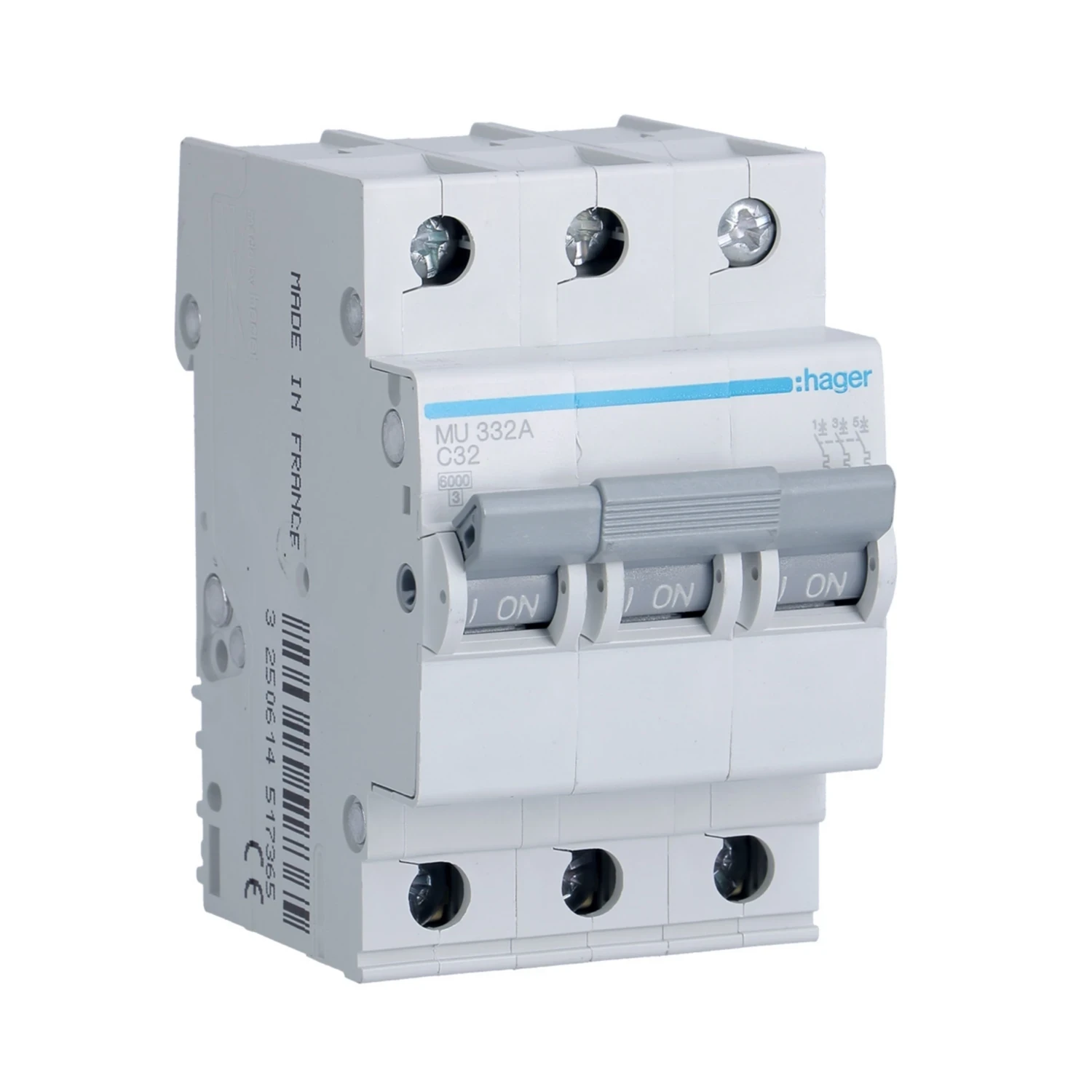

Photo is representative

Hager MU332A 32A 3P C-Curve MCB 6kA 3 Module

Product Information

Stock Code MU332A
GTIN 3250614517365
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €36.25

Gross price

€44.59

Branch Stock

Monaghan

Stock status: 5 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: In stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 7 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MU332A is a 3-pole 32A MCB with C-curve characteristic. Rated for 400V AC, 50-60Hz operation. DIN rail mount, takes up 3 modules. Screw terminals top and bottom, accepts 1-35mm² rigid or 1-25mm² flexible conductors.

  • 6kA breaking capacity (IEC 60898-1)
  • 400V AC, 50-60Hz
  • Operating range: -25°C to 70°C
  • IP20, screw terminals
  • 2.8 Nm terminal torque (top and bottom)
Specifications

Current Rating

32A

Voltage

400V AC

Frequency

50-60Hz

Breaking Capacity (Icn)

6kA (IEC 60898-1)

Service Breaking Capacity (Ics)

7.5kA at 230V AC (IEC 60947-2)

Ultimate Breaking Capacity (Icu)

10kA at 400V AC (IEC 60947-2)

Trip Curve

C

Poles

3P

Modules

3

Mounting

DIN rail, 360° rotation possible

Terminal Type

Screw terminal

Cable Range

1-35mm² rigid, 1-25mm² flexible

Operating Temperature

-25°C to 70°C

IP Rating

IP20

Terminal Torque

2.8 Nm

Insulation Voltage

500V

Impulse Withstand Voltage

4000V

Dimensions

H 83mm × W 52.5mm × D 70mm

Power Loss at Rated Current

12.3W

RoHS Compliant

Yes

Documents

datasheet MU332A
