MU350A

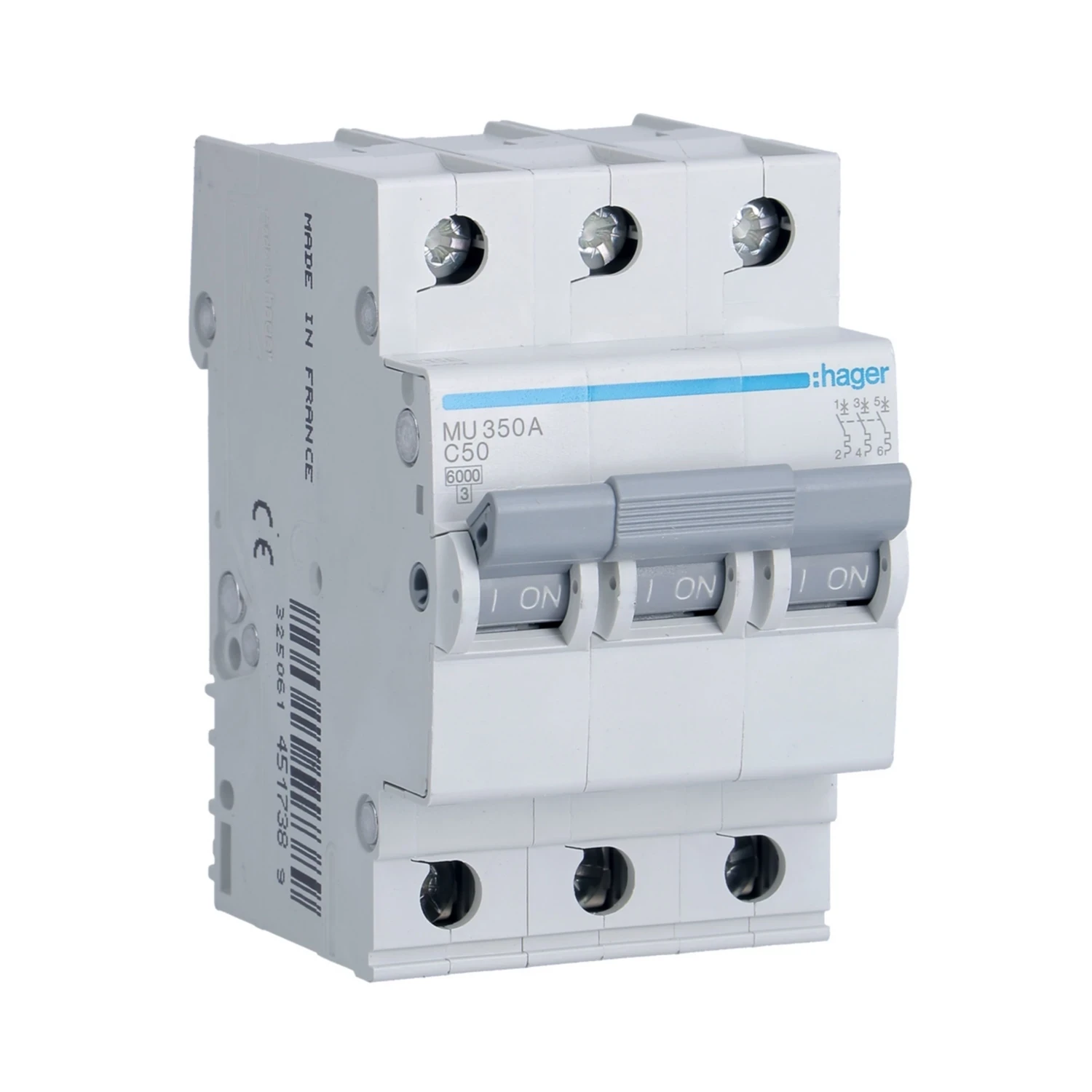

Photo is representative

Hager MU350A 50A 3P C-Curve MCB 6kA 3 Module

Product Information

Stock Code MU350A
GTIN 3250614517389
Stock status: 7 available for delivery

priced individually

More arriving soon

Net price: €40.24

Gross price

€49.49

Branch Stock

Monaghan

Stock status: 2 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: 2 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 3 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MU350A is a 3-pole miniature circuit breaker rated 50A with C-curve protection. Suits 3-phase final circuits and load protection in commercial and industrial boards. Mounts on DIN rail, takes 3 modules.

  • 50A rated current at 30°C, 6kA breaking capacity (IEC 60898-1)
  • 400V AC, 50–60 Hz operation
  • IP20, operating range −25°C to 70°C
  • Screw terminals: 1–35 mm² solid, 1–25 mm² flexible conductors
  • 360° mounting rotation possible
Specifications

Product Code

MU350A

Poles

3P

Current Rating

50A

Trip Curve

C

Breaking Capacity

6kA (IEC 60898-1)

Voltage

400V AC

Frequency

50–60 Hz

IP Rating

IP20

Operating Temperature

−25°C to 70°C

Module Width

3 modules (52.5mm)

Terminal Type

Screw terminal

Cable Range

1–35 mm² solid; 1–25 mm² flexible

Mounting

DIN rail, 360° rotation possible

RoHS Compliant

Yes

Documents

datasheet MU350A

Hager Electrical Distribution
