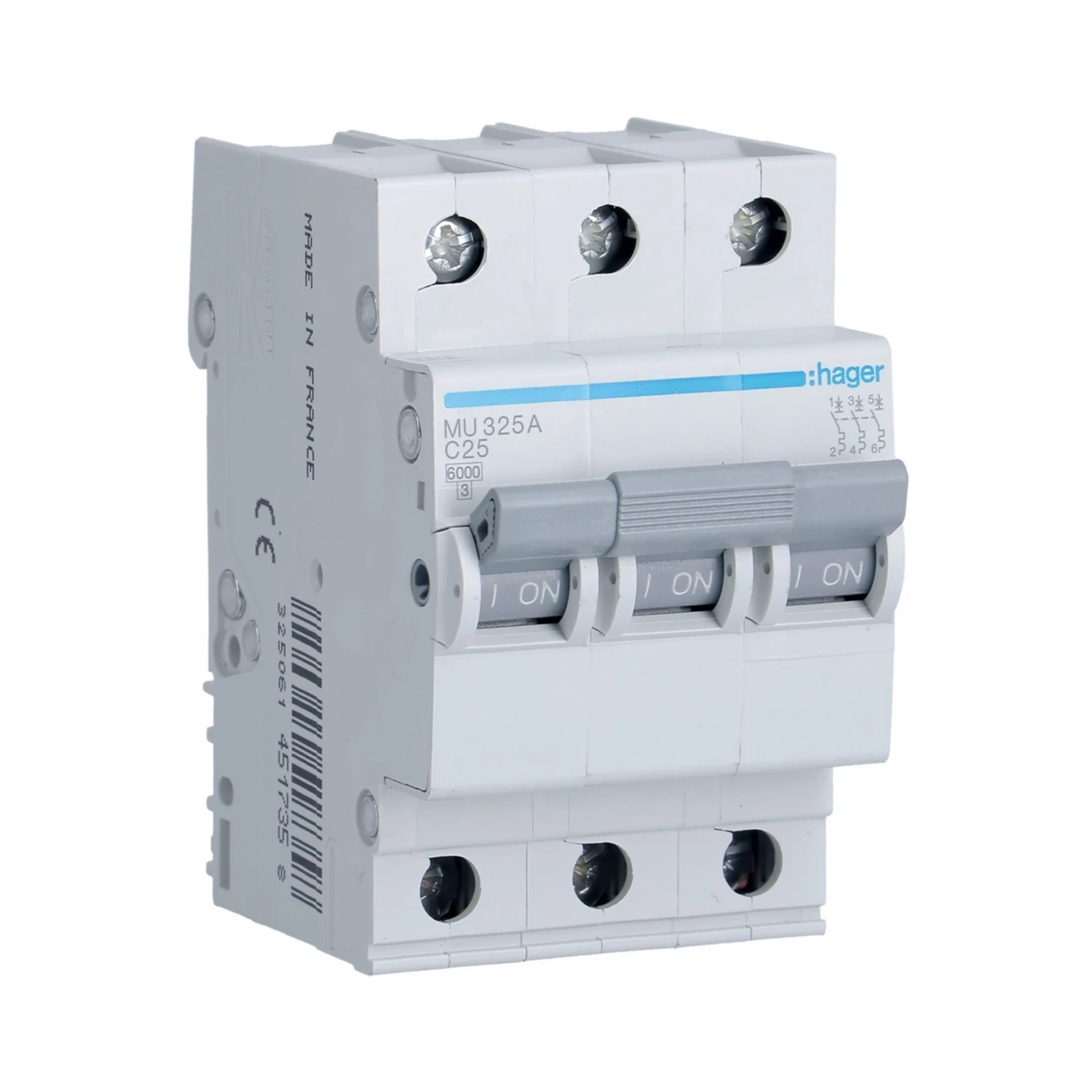

MU325A

Photo is representative

Hager MU325A 25A 3P C-Curve MCB 6kA - 400V AC

Product Information

Stock Code MU325A
GTIN —
Stock status: Available for delivery

priced individually

Net price: €36.25

Gross price

€44.59

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 8 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MU325A 3P MCB rated 25A with C-curve trip characteristic. Standard breaker for 3-phase final circuits and distribution boards. Clips onto DIN rail, takes 3 modules.

  • 6kA breaking capacity (IEC 60898-1)
  • 400V AC, 50–60 Hz
  • Screw terminals, 1–35 mm² rigid / 1–25 mm² flexible conductors
  • Operating range: −25°C to 70°C
  • IP20, 360° rotatable mounting
Specifications

Current Rating

25A

Poles

3P

Trip Curve

C

Voltage

400V AC

Frequency

50–60 Hz

Breaking Capacity (Icn)

6kA (IEC 60898-1)

Service Breaking Capacity (Ics)

7.5kA at 230V AC (IEC 60947-2)

Ultimate Breaking Capacity (Icu)

10kA at 400V AC (IEC 60947-2)

Module Width

3 modules (52.5mm)

Mounting

DIN rail, screw terminal

Cable Range

1–35 mm² rigid, 1–25 mm² flexible

Operating Temperature

−25°C to 70°C

IP Rating

IP20

RoHS Compliant

Yes

Documents

datasheet MU325A
