MU316A

Photo is representative

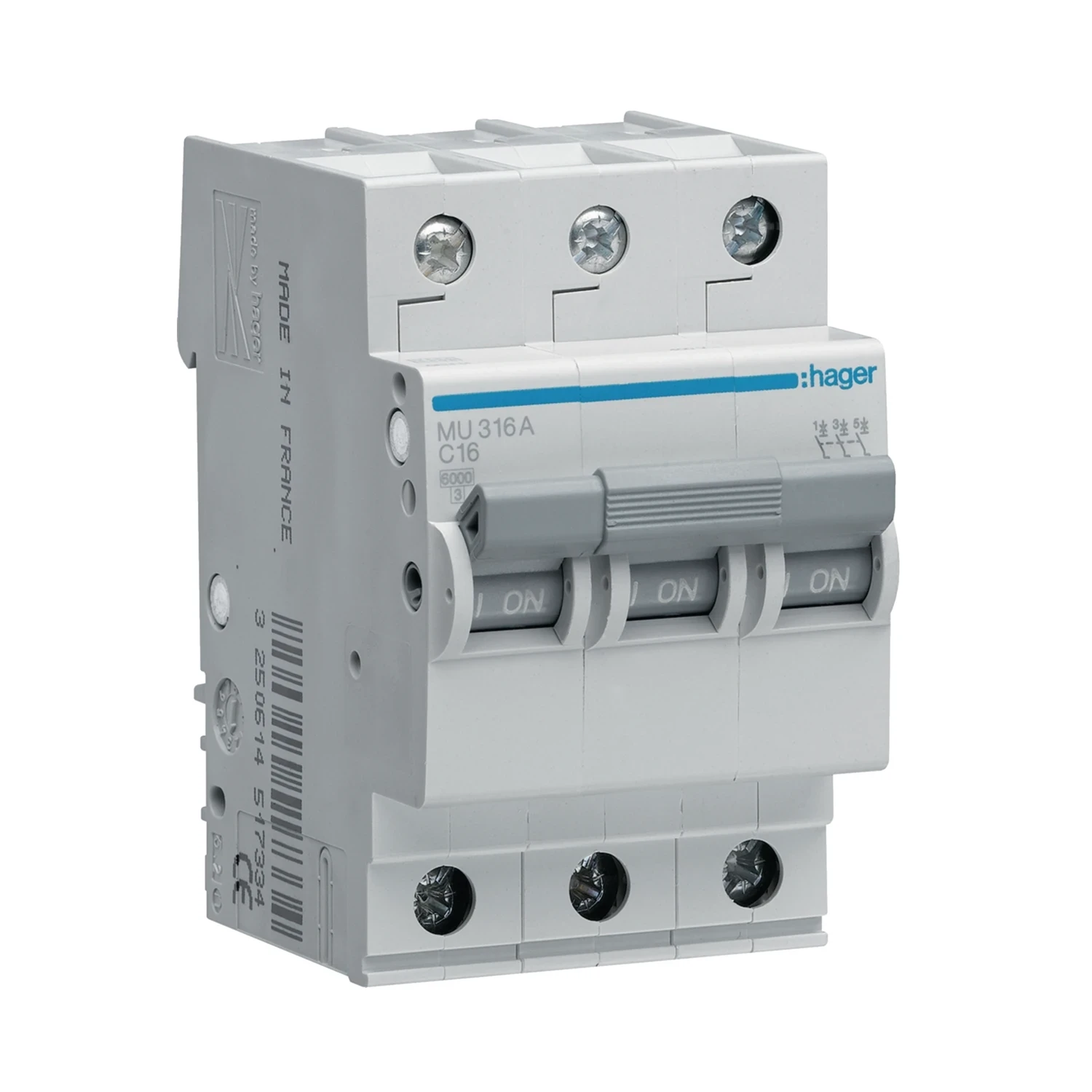

Hager MU316A 16A 3P C-Curve MCB 6kA 3 Module

Product Information

Stock Code MU316A
GTIN —
Stock status: Available for delivery

priced individually

Net price: €36.25

Gross price

€44.59

Branch Stock

Monaghan

Stock status: 6 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: 9 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: Out of stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MU316A is a 3-pole miniature circuit breaker rated 16A with C-curve trip characteristic. Breaks at 6kA per IEC 60898-1. Mounts on DIN rail, takes up 3 modules.

  • Rated 400V AC, 50–60Hz
  • Breaking capacity: 6kA (IEC 60898-1)
  • IP20 ingress protection
  • Screw terminals: 1–35mm² rigid, 1–25mm² flexible
  • Operating range: −25°C to 70°C
Specifications

Current Rating

16A

Poles

3P

Trip Curve

C

Breaking Capacity

6kA (IEC 60898-1)

Voltage

400V AC

Frequency

50–60Hz

Module Width

3 modules (52.5mm)

Mounting

DIN rail, screw terminal

Cable Range Rigid

1–35mm²

Cable Range Flexible

1–25mm²

IP Rating

IP20

Operating Temperature

−25°C to 70°C

Insulation Voltage

500V

RoHS Compliant

Yes

Documents

datasheet MU316A
