MU320A

Photo is representative

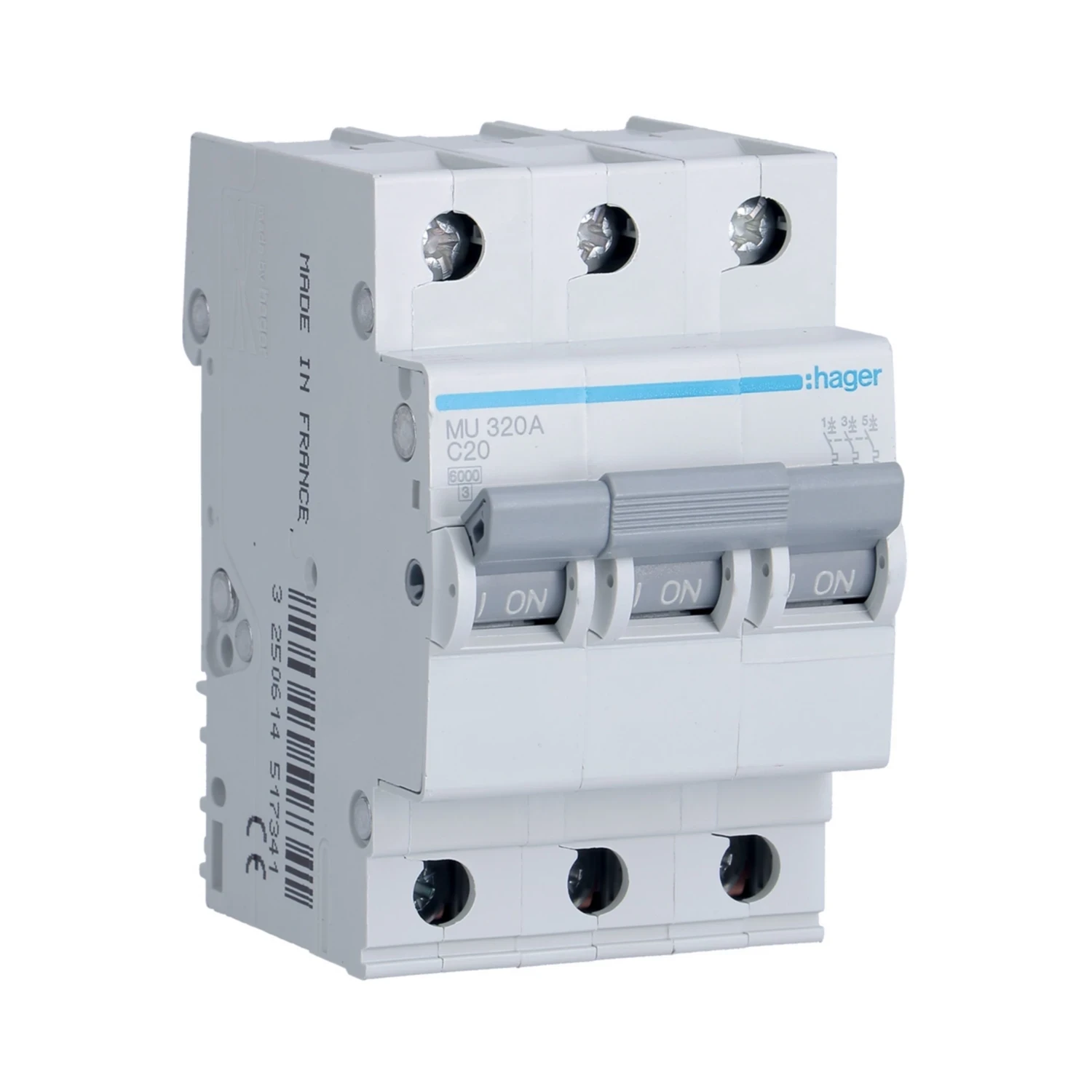

Hager MU320A 20A 3P C-Curve MCB 6kA 3 Module

Product Information

Stock Code MU320A
GTIN 3250614517341
Stock status: Available for delivery

priced individually

Net price: €36.25

Gross price

€44.59

Branch Stock

Monaghan

Stock status: 2 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: 1 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 3 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MU320A is a 3-pole 20A miniature circuit breaker with C-curve protection. Rated for 400V AC, 50–60 Hz distribution in commercial and industrial boards.

  • 20A rated current, 6kA breaking capacity (IEC 60898-1)
  • C-curve trip: suitable for standard loads, some inrush tolerance
  • 3 modules wide, DIN rail mount, 360° rotation possible
  • Screw terminals: 1–35 mm² rigid, 1–25 mm² flexible cable
  • Operating range –25°C to 70°C, IP20 rated
Specifications

Current Rating

20A

Voltage

400V AC

Frequency

50–60 Hz

Breaking Capacity (Icn)

6 kA (IEC 60898-1)

Service Breaking Capacity (Ics)

7.5 kA at 230V AC (IEC 60947-2)

Trip Curve

C

Poles

3P

Module Width

3 modules

IP Rating

IP20

Operating Temperature

-25°C to 70°C

Cable Range (Rigid)

1–35 mm²

Cable Range (Flexible)

1–25 mm²

Mounting

DIN rail, 360° rotation possible

Terminal Type

Screw terminal

Documents

datasheet MU320A
