MU306A

Photo is representative

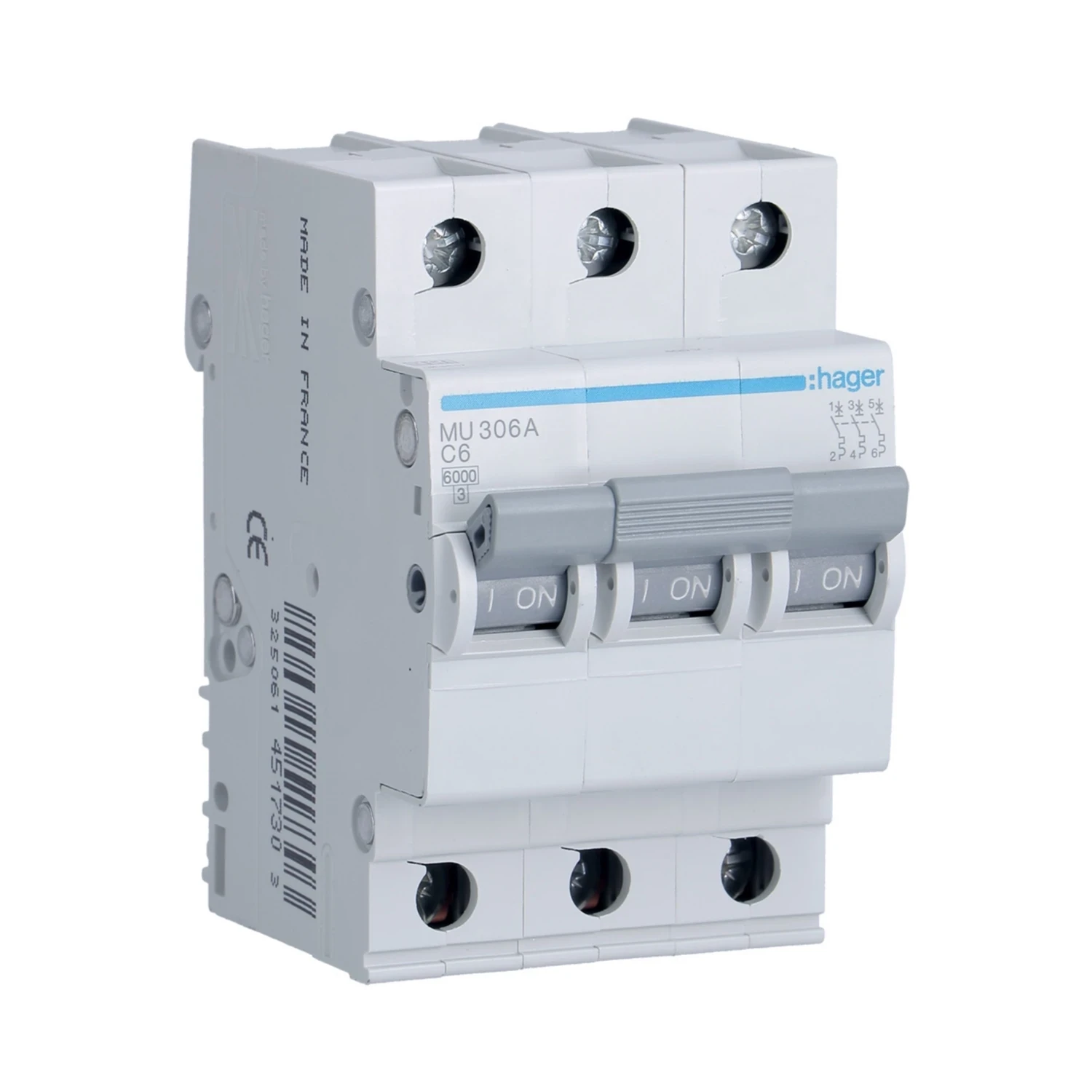

Hager MU306A 6A 3P C-Curve MCB 6kA 3 Module DIN Rail

Product Information

Stock Code MU306A
GTIN 3250614517303
Stock status: Available for delivery

priced individually

Net price: €36.25

Gross price

€44.59

Branch Stock

Monaghan

Stock status: 1 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: In stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 2 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MU306A is a 6A three-pole MCB with C-curve trip characteristic. Rated for 400V AC, 50–60 Hz. Takes 3 DIN modules. Screw terminals accept 1–35mm² rigid conductors or 1–25mm² flexible.

  • Rated short-circuit breaking capacity: 6kA at 230V AC, 10kA at 400V AC
  • Operating temperature range: −25°C to 70°C
  • IP20 ingress protection, 360° mounting possible
  • Total power loss at rated current: 3.90 W
  • RoHS compliant
Specifications

Rated Current

6 A

Poles

3P

Trip Curve

C

Breaking Capacity (230V AC)

6 kA (IEC 60898-1)

Breaking Capacity (400V AC)

10 kA (IEC 60947-2)

Rated Voltage

400V AC

Frequency

50–60 Hz

Operating Temperature

−25°C to 70°C

Insulation Voltage

500 V

Module Width

3 modules (52.5mm)

Connection Type

Screw terminal

Cable Range (Rigid)

1–35 mm²

Cable Range (Flexible)

1–25 mm²

IP Rating

IP20

Documents

datasheet MU306A
