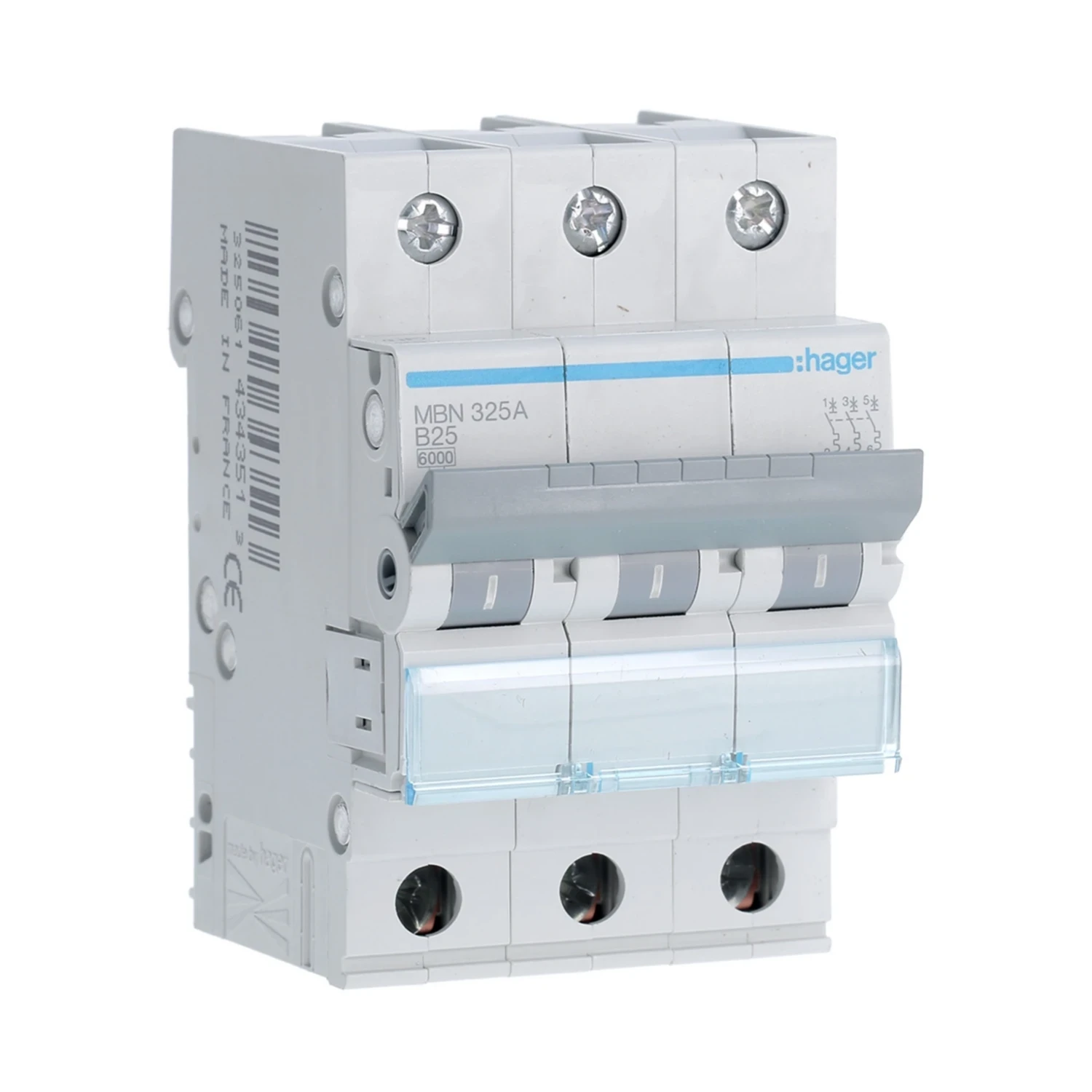

MBN325A

Photo is representative

Hager 3P MCB 25A Type B Curve 6kA 230-400V AC 3 Module IP20 Screw Terminal

Product Information

Stock Code MBN325A
GTIN 3250614343513
Stock status: 1 available for delivery

priced individually

Net price: €46.99

Gross price

€57.79

Branch Stock

Monaghan

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Stock status: Out of stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

3-pole MCB from Hager, sized 3 modules for standard DIN rail distribution boards on three-phase circuits.

B-curve trips at 3-5x In, suited to resistive and lighting loads without high inrush current.

  • Rated current: 25A
  • Breaking capacity: 6kA Icn, 10kA Icu at 400V AC per IEC 60947-2
  • Rated voltage: 230-400V AC
  • Screw terminals, cable range 1-35mm² rigid / 1-25mm² flexible
  • IP20, operating temp -25°C to 70°C
Specifications

Poles

3P

Rated Current (In)

25 A

Trip Curve

B

Breaking Capacity (Icn)

6 kA

Breaking Capacity (Icu at 400V AC)

10 kA

Rated Voltage (Ue)

230-400 V AC

Frequency

50-60 Hz

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Module Width

3 modules

Terminal Type

Screw terminal

Cable Range (Rigid)

1-35 mm²

Cable Range (Flexible)

1-25 mm²

Dimensions (H x W x D)

83 x 52.5 x 70 mm

Documents

datasheet MBN325A
