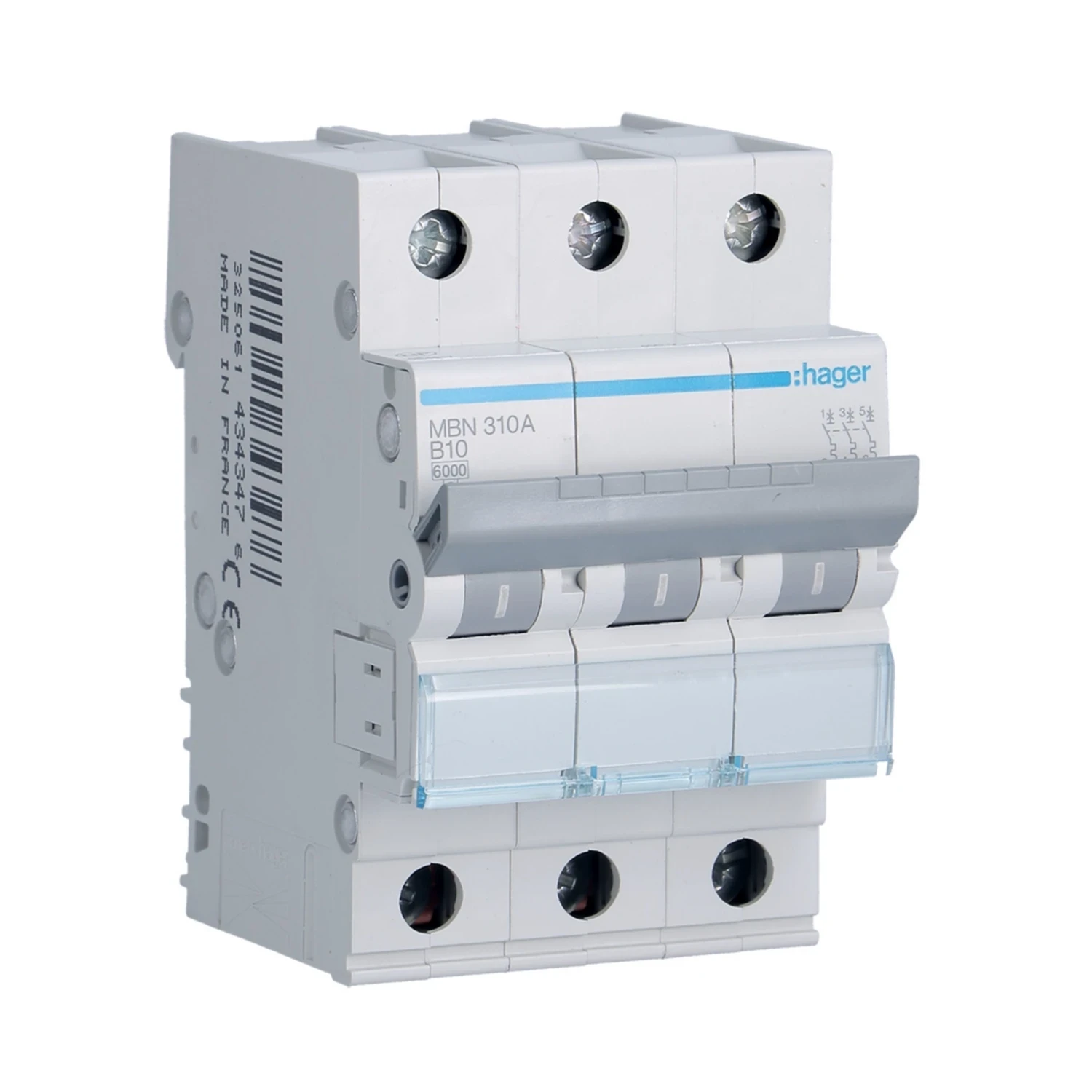

MBN310A

Photo is representative

Hager 3P MCB 10A Type B Curve 6kA 230-400V AC 3 Module DIN Rail

Product Information

Stock Code MBN310A
GTIN 3250614343476
Stock status: 2 available for delivery

priced individually

Net price: €46.99

Gross price

€57.79

Branch Stock

Monaghan

Stock status: Out of stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 2 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MBN310A is a 3 pole MCB for overcurrent protection on AC distribution circuits. Fits three-phase boards where fault protection to 6kA is required.

  • 3P, Type B curve, 10A rated current
  • 6kA breaking capacity (Icn) to IEC 60898-1
  • 230-400V AC, 50-60Hz
  • IP20, DIN rail mounting, 3 module width
  • Screw terminal top, biconnect bottom, 1-35mm² conductor range
Specifications

Poles

3P

Curve Type

B

Rated Current (In)

10 A

Breaking Capacity (Icn) IEC 60898-1

6 kA

Rated Operational Voltage (Ue)

230 - 400 V

Frequency

50 - 60 Hz

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Top Terminal Type

Screw terminal

Bottom Terminal Type

Biconnect

Cable Range (Solid Conductors)

1 - 35 mm²

Cable Range (Flexible Conductors)

1 - 25 mm²

Dimensions (H x W x D)

83 x 52.50 x 70 mm

Documents

datasheet MBN310A
