MBN306A

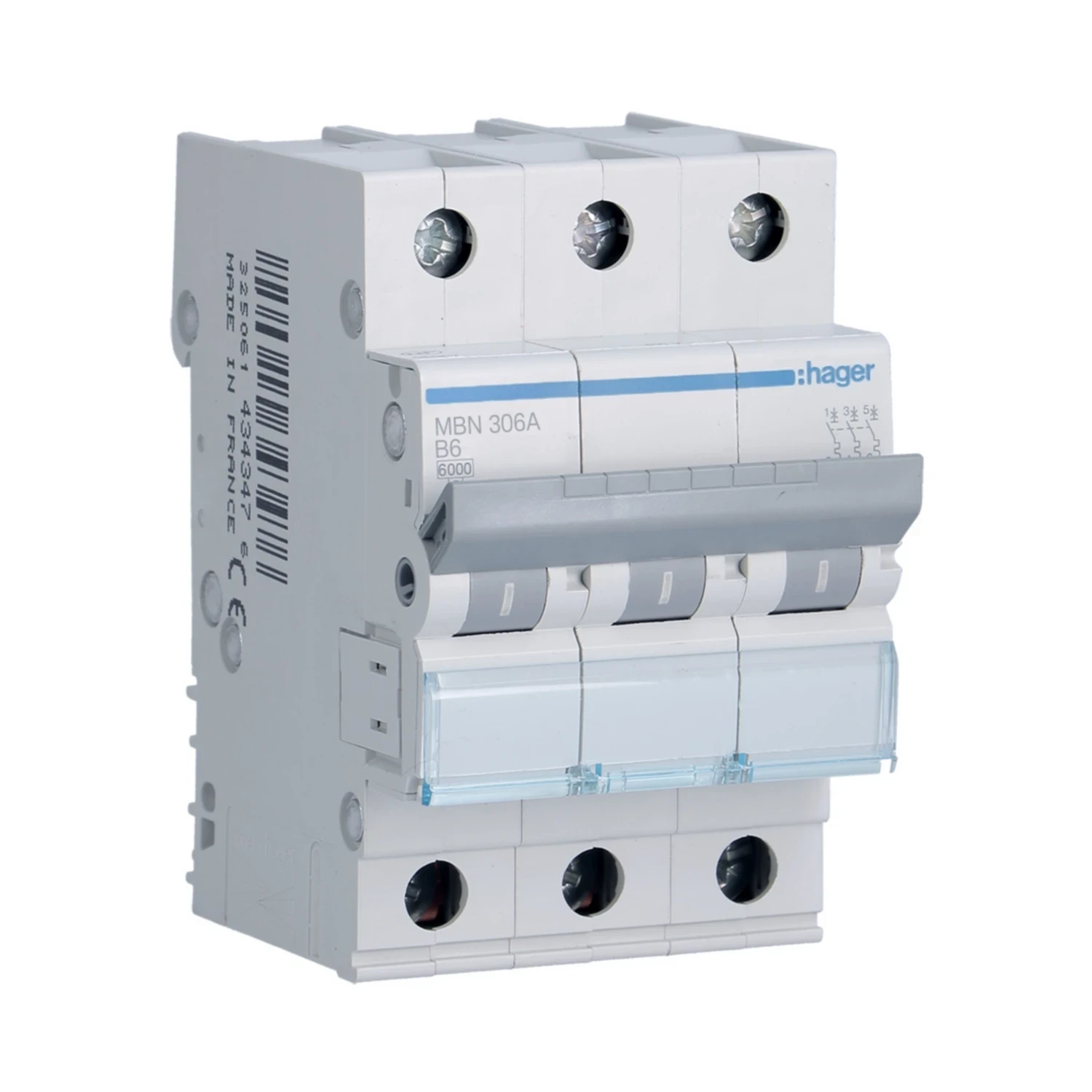

Photo is representative

Hager 3P MCB 6A Type B Curve 6kA Icn 230-400V AC 3 Module DIN Rail

Product Information

Stock Code MBN306A
GTIN 3250614343469
Stock status: 2 available for delivery

priced individually

Net price: €46.99

Gross price

€57.79

Branch Stock

Monaghan

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Stock status: Out of stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager MBN306A is a 3-pole miniature circuit breaker for overcurrent protection on three-phase distribution boards.

Type B curve suits general load circuits with low inrush current. DIN rail mounted, 3 modules wide.

  • 6A rated current, Type B curve
  • 6kA Icn at 230V AC (10kA per IEC 60898-1)
  • Icu 10kA at 400V AC per IEC 60947-2
  • Rated operational voltage 230-400V AC
  • IP20, operating temperature -25°C to 70°C
Specifications

Poles

3

Rated Current

6 A

Curve Characteristic

B

Breaking Capacity Icn (230V AC)

6 kA

Breaking Capacity Icn (230V AC, IEC 60898-1)

10 kA

Breaking Capacity Icu (400V AC, IEC 60947-2)

10 kA

Rated Operational Voltage

230 - 400 V

Frequency

50 - 60 Hz

IP Rating

IP20

Dimensions (H x W x D)

83 mm x 52.50 mm x 70 mm

Operating Temperature Range

-25 - 70 °C

Degree of Pollution

2

Number of Modules

3

Rated Insulation Voltage

500 V

Documents

datasheet MBN306A
