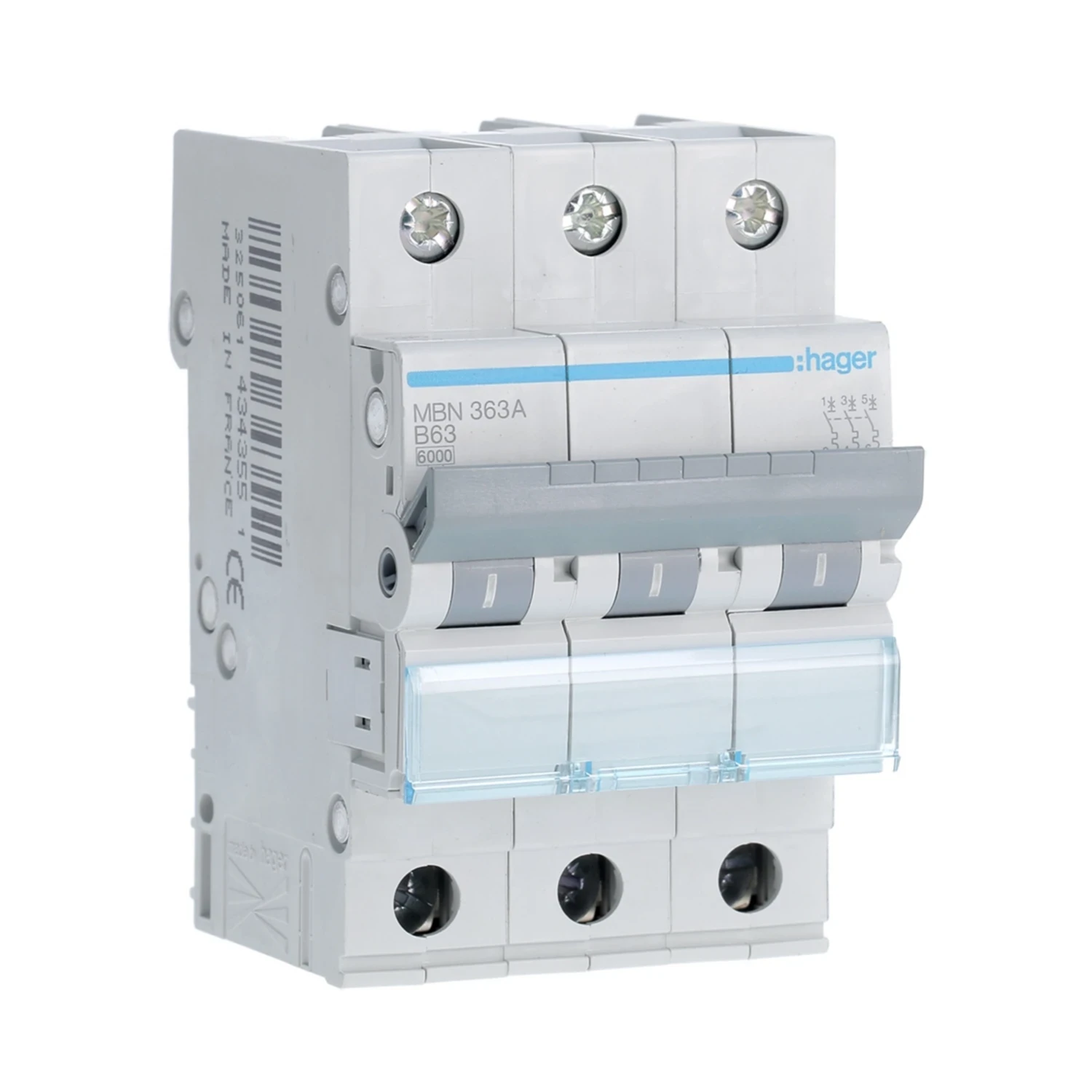

MBN363A

Photo is representative

Hager 3P MCB 63A Type B Curve 6kA Breaking Capacity 3 Module

Product Information

Stock Code MBN363A
GTIN 3250614343551
Stock status: Out of stock

priced individually

More arriving soon

Net price: €54.92

Gross price

€67.55

Hager MBN363A is a 3-pole MCB with Type B curve, rated 63A, for protection of three-phase AC circuits on distribution boards. Built to IEC 60898-1 and IEC 60947-2 standards, it trips on overload and short circuit at the instantaneous levels set by the B-curve. 3 module width, DIN rail mount.

  • Poles: 3P
  • Rated current: 63A
  • Breaking capacity: 6kA (400V AC), 10kA (230V AC)
  • IP20 rated
  • Screw terminal, top and bottom
Specifications

Poles

3P

Rated Current (In)

63 A

Curve

Type B

Breaking Capacity Icn (230V AC)

10 kA

Breaking Capacity Icn (400V AC)

6 kA

Rated Operational Voltage (Ue)

400 V

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

Frequency

50 - 60 Hz

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Dimensions (HxWxD)

83 x 52.5 x 70 mm

Cable Range (Solid Conductors)

1 - 35 mm²

Cable Range (Flexible Conductors)

1 - 25 mm²

Documents

datasheet MBN363A
