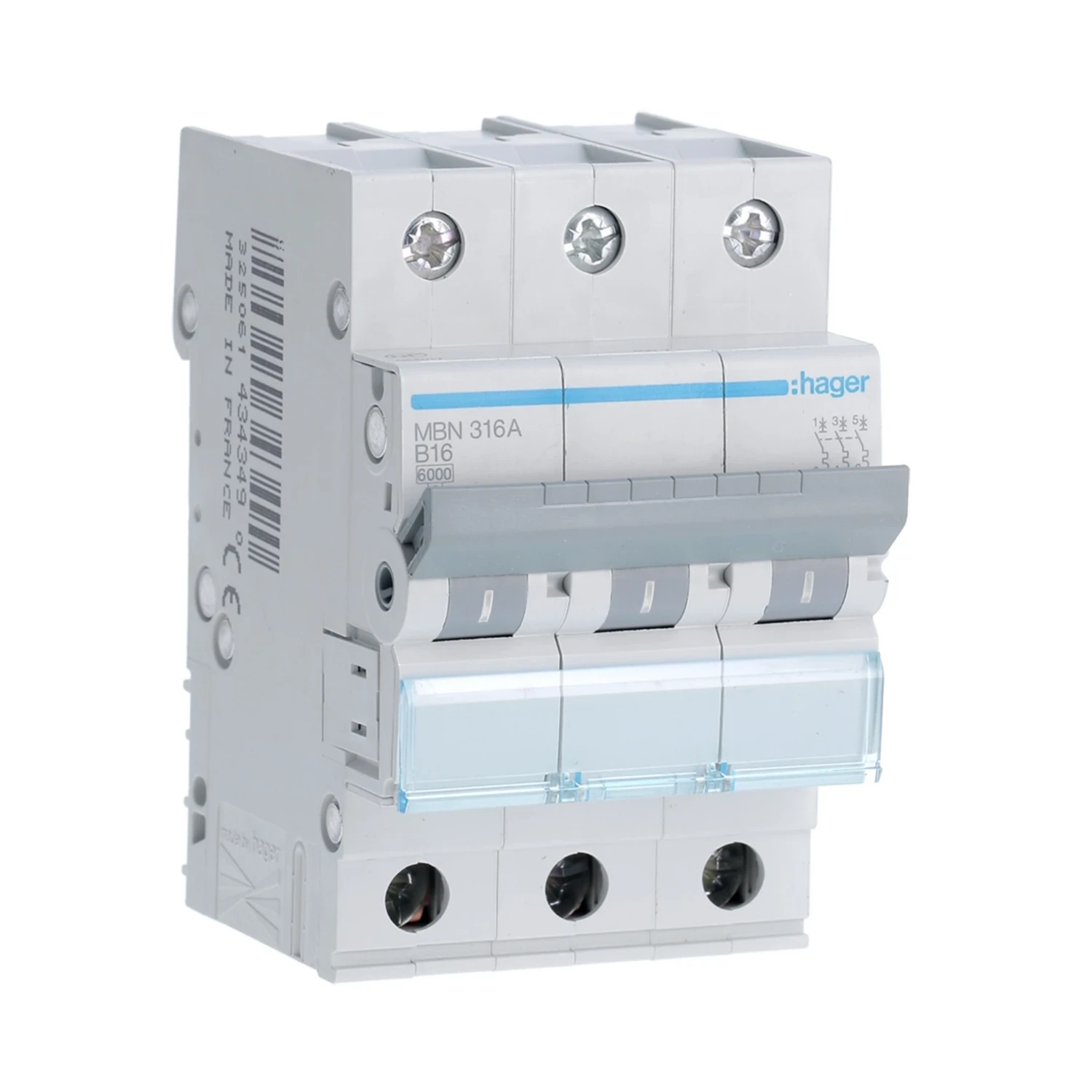

Hager MBN316A 3P 16A B-Curve 6kA MCB - 230/400V 3 Module

Photo is representative

Hager MBN316A 3P 16A B-Curve 6kA MCB - 230/400V 3 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MBN316A
GTIN 3250614343490
Stock status: 3 available for delivery

priced individually

More arriving soon

Net price: €46.99

Gross price

€57.79

Branch Stock

Monaghan

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Stock status: Out of stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager MBN316A three-pole MCB for 400V three-phase circuits. B-curve trip characteristic for general purpose loads and lighting. Clips onto DIN rail, takes up 3 modules.

  • 16A rated current at 30°C, 6kA breaking capacity (IEC 60898-1)
  • 230/400V AC, 50⁄60 Hz
  • Screw terminals: 1–35 mm² rigid, 1–25 mm² flexible
  • Operating temp: -25°C to 70°C, IP20 ingress protection
  • Terminal torque: 2.8 Nm top and bottom
Specifications

Poles

3P

Rated Current

16A @ 30°C

Trip Curve

B

Breaking Capacity (Icn)

6kA (IEC 60898-1)

Ultimate Breaking Capacity (Icu)

10kA (IEC 60947-2, 400V AC)

Voltage

230–400V AC

Frequency

50–60 Hz

Operating Temperature

-25°C to 70°C

Insulation Voltage

500V

Impulse Withstand Voltage

4000V

IP Rating

IP20

Module Width

3 modules (52.5mm)

Connection Type

Screw terminal

Cable Range

1–35 mm² rigid; 1–25 mm² flexible

Terminal Torque

2.8 Nm

Dimensions (H × W × D)

83 × 52.5 × 70 mm

RoHS Compliant

Yes
