MBN332A

Photo is representative

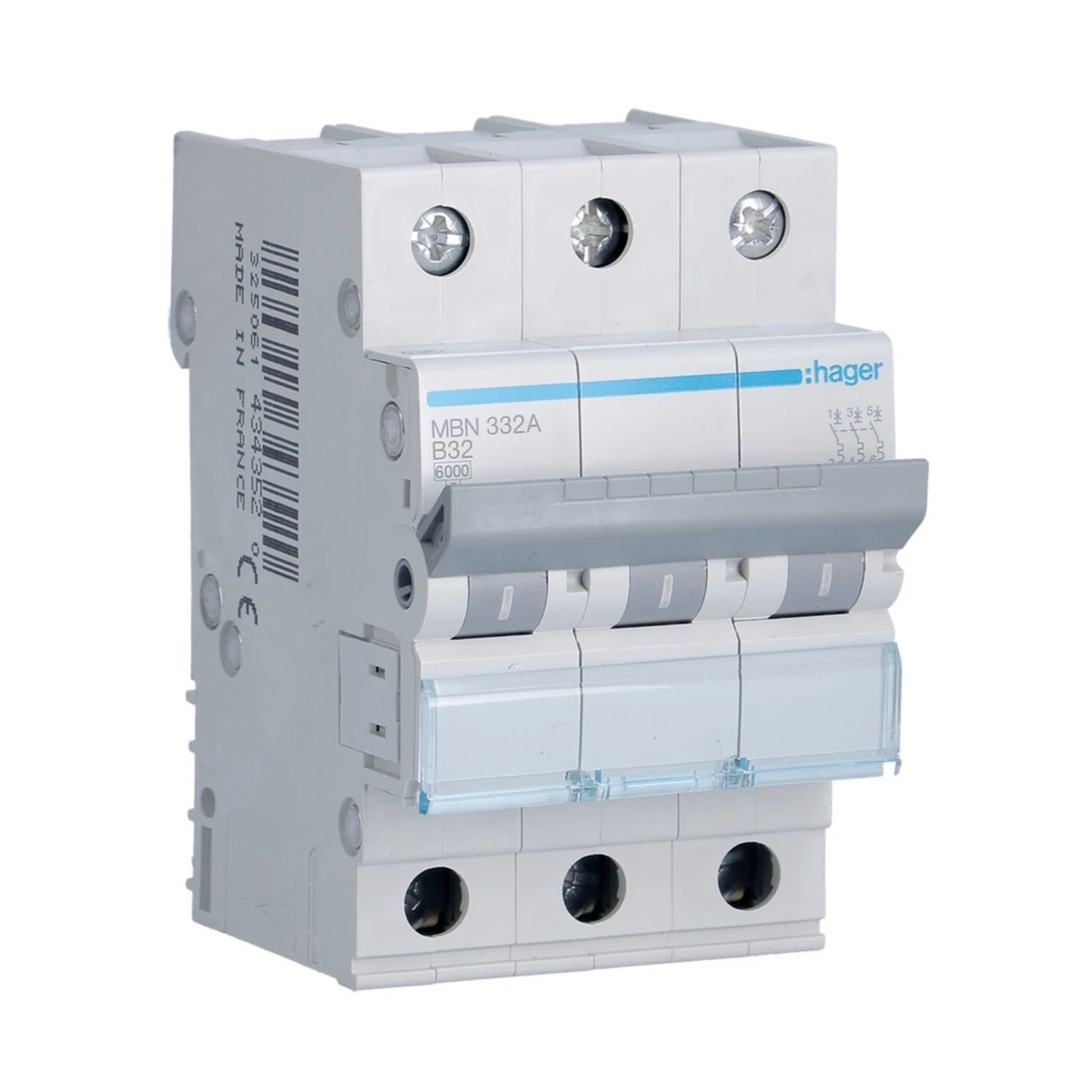

Hager 3P MCB 32A Type B Curve 6kA Icn 400V AC 3 Module DIN Rail

Product Information

Stock Code MBN332A
GTIN 3250614343520
Stock status: 4 available for delivery

priced individually

Net price: €46.99

Gross price

€57.79

Branch Stock

Monaghan

Stock status: Out of stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 4 in stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MBN332A is a 3-pole MCB for three-phase AC distribution boards. Rated 32A with Type B curve and 6kA breaking capacity.

Used for overload and short-circuit protection on three-phase circuits in commercial and light industrial boards.

  • In: 32A, Type B curve
  • Icn: 6kA (10kA at 230V AC per IEC 60898-1)
  • 3P, 3 module width, screw terminals
  • Cable range: 1-35mm² rigid / 1-25mm² flexible
  • IP20, -25°C to +70°C operating range
Specifications

Poles

3P

Curve Type

B

Rated Current (In)

32 A

Breaking Capacity (Icn) AC

6 kA

Breaking Capacity (Icn) at 230V AC

10 kA

Rated Operational Voltage (Ue)

400 V

Rated Insulation Voltage (Ui)

500 V

Frequency

50 - 60 Hz

Operating Temperature Range

-25 to +70 °C

IP Rating

IP20

Number of Modules

3

Cable Range Rigid Conductor

1 - 35 mm²

Cable Range Flexible Conductor

1 - 25 mm²

Dimensions (H x W x D)

83 x 52.50 x 70 mm

Terminal Torque

2.80 Nm

Documents

datasheet MBN332A
