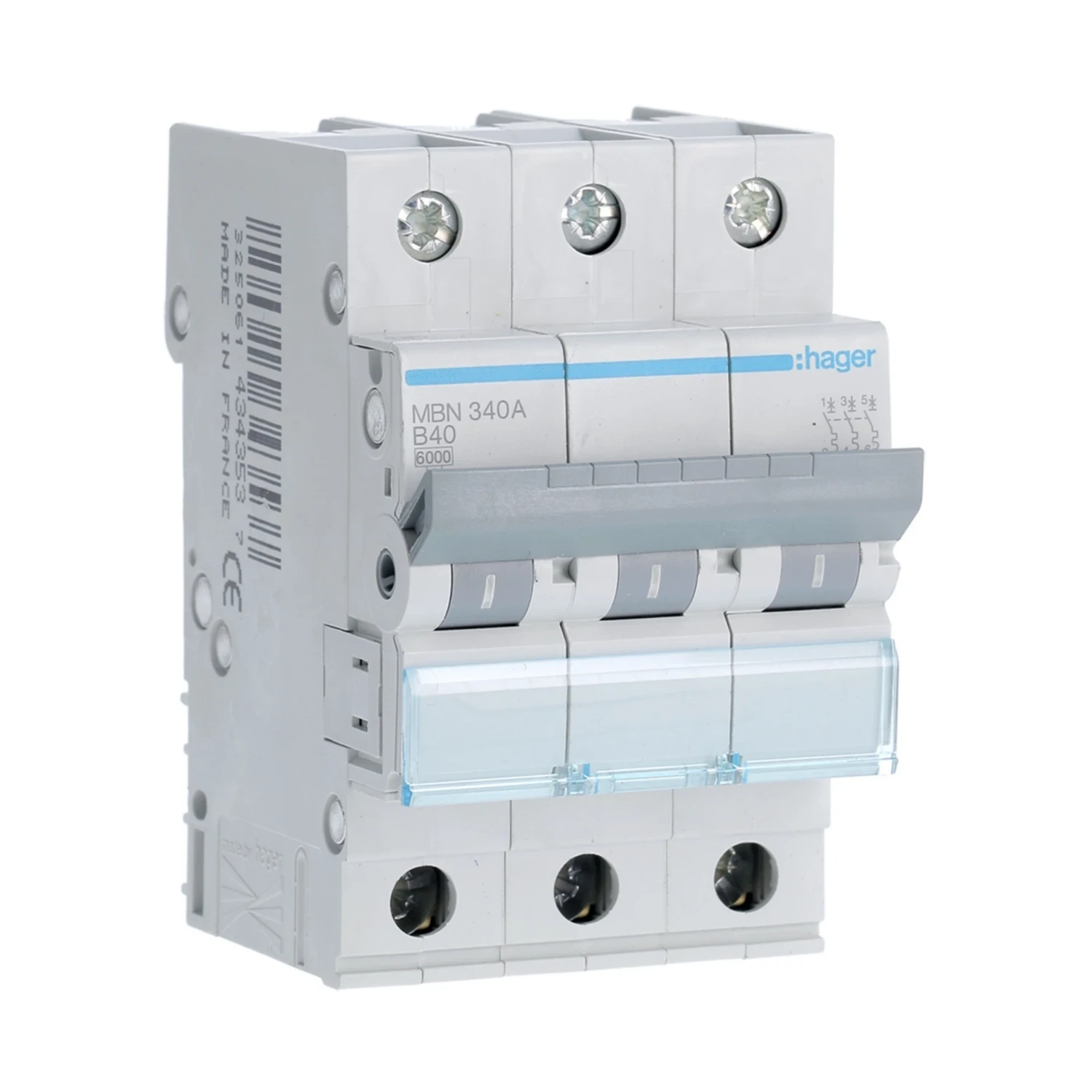

MBN340A

Photo is representative

Hager 3P MCB 40A Type B Curve 6kA IP20 400V 3 Module DIN Rail

Product Information

Stock Code MBN340A
GTIN 3250614343537
Stock status: 1 available for delivery

priced individually

Net price: €54.92

Gross price

€67.55

Branch Stock

Monaghan

Stock status: Out of stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 1 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager MBN340A is a 3-pole miniature circuit breaker for DIN rail mounting in three-phase distribution boards. B curve trips at 3-5x In, giving protection against overcurrent and short-circuit faults on resistive and low-inrush circuits.

  • 40A rated current (In)
  • Type B curve
  • 6kA breaking capacity (Icn) to IEC 60898-1, 10kA at 230V AC
  • 3 module width, 52.5mm
  • IP20
Specifications

Poles

3P

Rated Current (In)

40 A

Trip Curve

Type B

Breaking Capacity (Icn) IEC 60898-1

6 kA

Breaking Capacity (Icn) AC 230V

10 kA

Rated Operational Voltage (Ue)

400 V

Rated Insulation Voltage (Ui)

500 V

Frequency

50 - 60 Hz

Operating Temperature Range

-25 to +70 °C

IP Rating

IP20

Number of Modules

3

Dimensions (H x W x D)

83 x 52.50 x 70 mm

Terminal Cross-section (Solid)

1 - 35 mm²

Terminal Cross-section (Flexible)

1 - 25 mm²

Documents

datasheet MBN340A
