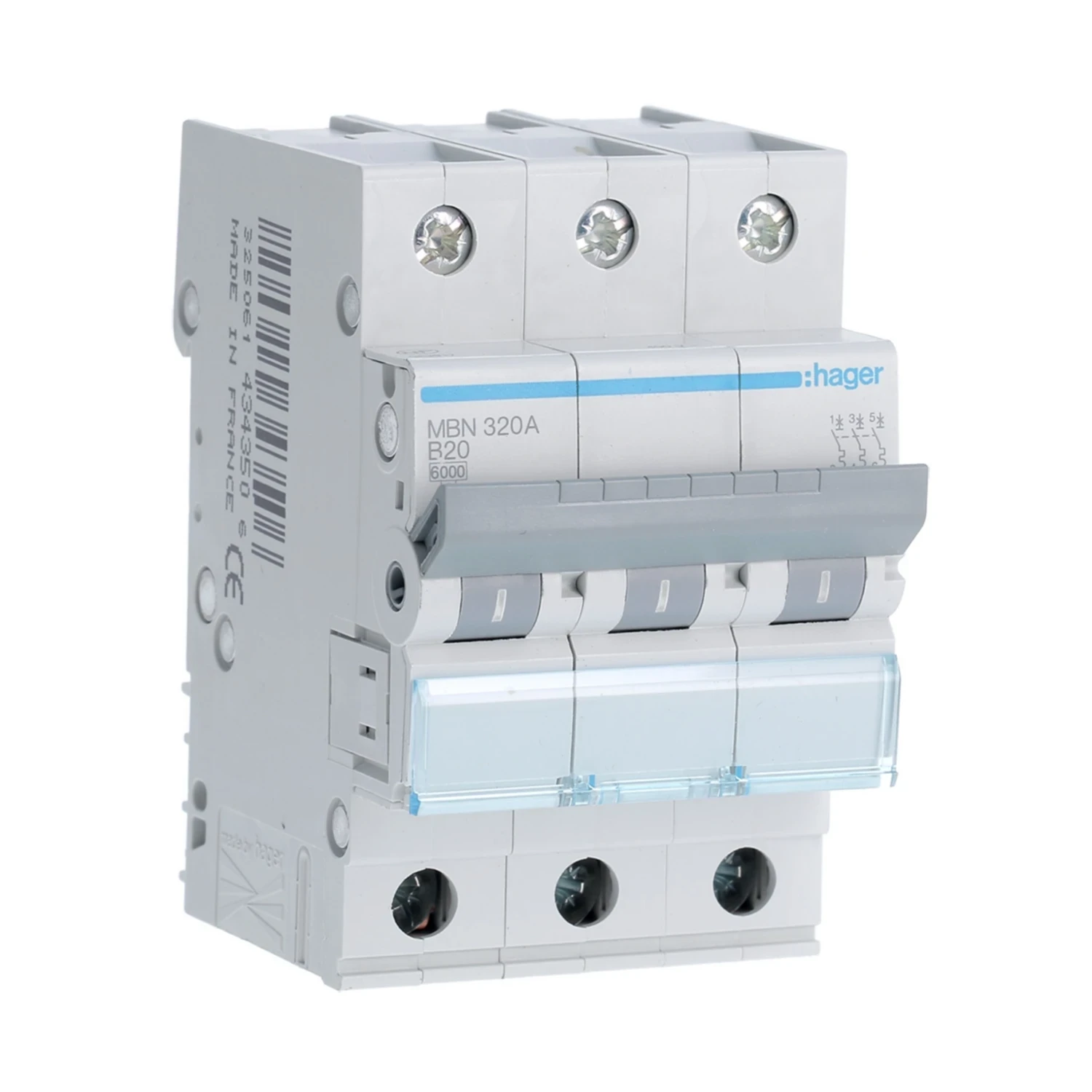

MBN320A

Photo is representative

Hager Three Pole MCB 20A Type B Curve 6kA Breaking Capacity 3 Module

Product Information

Stock Code MBN320A
GTIN 3250614343506
Stock status: 3 available for delivery

priced individually

Net price: €46.99

Gross price

€57.79

Branch Stock

Monaghan

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Stock status: Out of stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager MBN320A three-pole MCB with Type B trip curve, used for overcurrent protection in three-phase distribution boards and modular installations.

Type B curve suits standard AC circuits without high inrush currents, tripping instantaneously between 3-5x In.

  • Rated current: 20A
  • Poles: 3P
  • Breaking capacity (Icn): 6kA per IEC 60898-1
  • Module width: 3 modules, 52.5mm
  • Terminals: screw top, Biconnect bottom, 1-35mm² rigid / 1-25mm² flexible conductors
Specifications

Poles

3P

Trip Curve

B

Rated Current (In)

20 A

Rated Operational Voltage (Ue)

230 - 400 V AC

Frequency

50 - 60 Hz

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

Breaking Capacity Icn (230V AC, IEC 60898-1)

6 kA

Breaking Capacity Icu (400V AC, IEC 60947-2)

10 kA

Operating Temperature Range

-25 to 70 °C

IP Rating

IP20

Number of Modules

3

Dimensions (H x W x D)

83 x 52.50 x 70 mm

Cable Range Rigid Conductor

1 - 35 mm²

Cable Range Flexible Conductor

1 - 25 mm²

Documents

datasheet MBN320A
