NCN163A

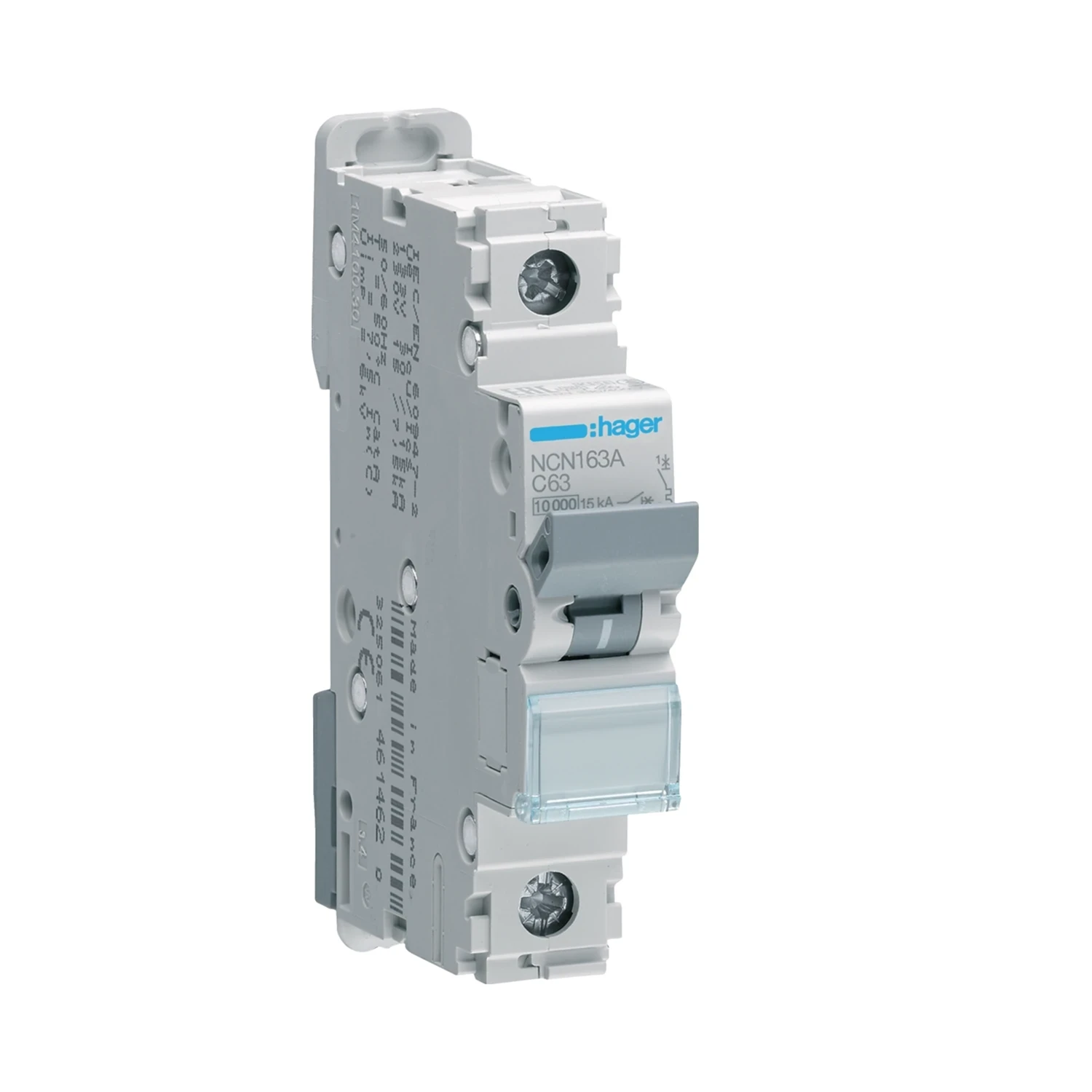

Photo is representative

Hager MCB 63A Type C 10kA 1P Single Pole 1 Module Circuit Breaker

Product Information

Stock Code NCN163A
GTIN —
Stock status: 8 available for delivery

priced individually

Net price: €23.36

Gross price

€28.74

Branch Stock

Monaghan

Stock status: 3 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 5 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager NCN163A is a single pole MCB rated 63A, Type C curve, for AC circuit protection on domestic and commercial boards.

C curve trips at higher multiples of In, so it suits circuits with higher inrush currents.

  • Rated current: 63A
  • Curve: Type C
  • Breaking capacity (Icn): 10kA at 230V
  • Operational voltage: 230-400V AC
  • IP rating: IP20
  • Width: 1 module (17.5mm)
Specifications

Rated Current (In)

63 A

Curve Type

C

Rated Short-Circuit Breaking Capacity (Icn)

10 kA at 230V

Rated Ultimate Breaking Capacity (Icu)

15 kA

Rated Service Breaking Capacity (Ics)

7.50 kA

Rated Operational Voltage (Ue)

230 - 400 V

Frequency

50 - 60 Hz

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

6000 V

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Poles

1P, 1 Module

Dimensions (H x W x D)

83 x 17.50 x 70 mm

Nominal Tightening Torque

2.80 Nm

Documents

datasheet NCN163A
