NCN116A

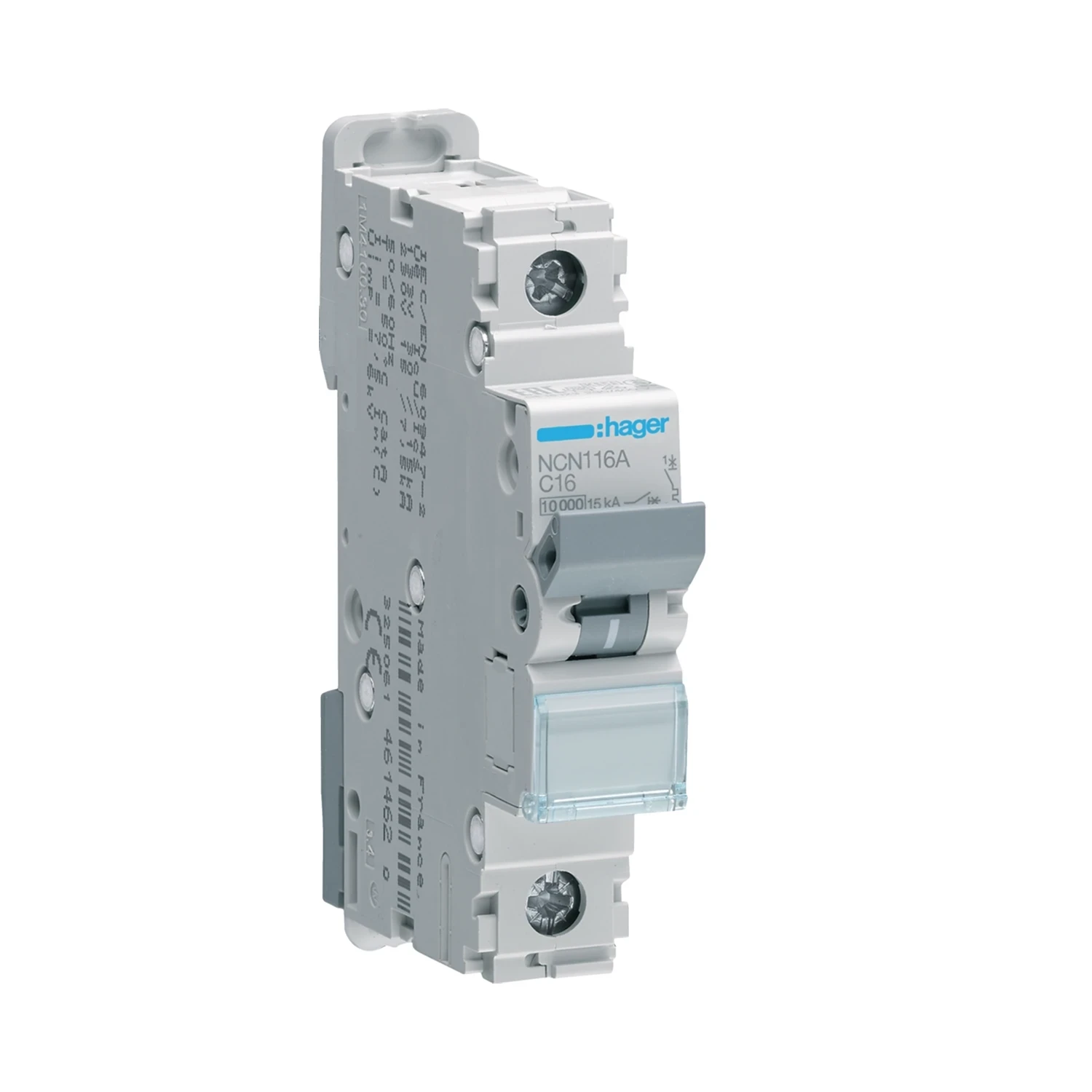

Photo is representative

Hager MCB 16A Type C 10kA 1P

Product Information

Stock Code NCN116A
GTIN 3250614615528
Stock status: Available for delivery

priced individually

Net price: €20.06

Gross price

€24.67

Branch Stock

Monaghan

Stock status: In stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 5 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager NCN116A is a single-pole miniature circuit breaker rated at 16A, C-curve, for overcurrent protection on AC circuits up to 400V. Fits standard DIN rail boards, 1 module wide.

C-curve trips at 5-10x In, suited to circuits with moderate inrush such as lighting and general power.

  • 16A rated current, Type C
  • 10kA Icn at 230V AC, 15kA Icu
  • 1 pole, 1 module
  • Screw terminals, 1-35mm² massive conductor range
  • IP20, operating temp -25°C to 70°C
Specifications

Rated Current (In)

16 A

Curve Type

C

Breaking Capacity (Icn)

10 kA

Ultimate Breaking Capacity (Icu)

15 kA

Service Breaking Capacity (Ics)

7.50 kA

Poles

1P

Rated Operational Voltage (Ue)

230 - 400 V

Frequency

50 - 60 Hz

IP Rating

IP20

Operating Temperature

-25 - 70 °C

Terminal Torque

2.80 Nm

Cable Range (Massive Conductors)

1 - 35 mm²

Dimensions (H x W x D)

83 mm x 17.50 mm x 70 mm

Documents

datasheet NCN116A

Hager Electrical Distribution
