NCN150A

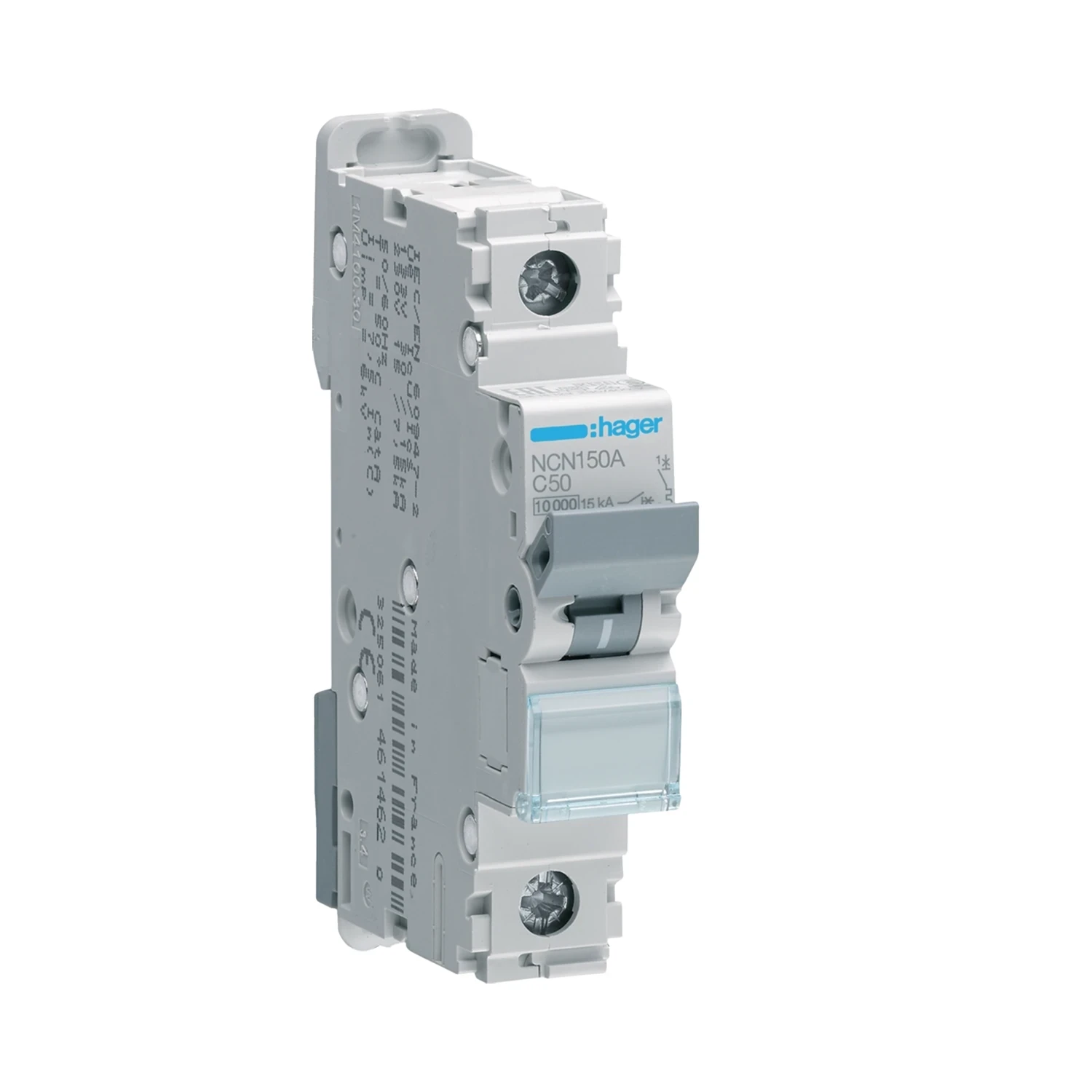

Photo is representative

Hager MCB 50A Type C 10kA 1P Single Pole 1 Module 230-400V AC

Product Information

Stock Code NCN150A
GTIN 3250614615573
Stock status: Available for delivery

priced individually

Net price: €23.37

Gross price

€28.74

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager NCN150A is a single-pole MCB rated 50A with a Type C tripping curve and 10kA breaking capacity. 1 module wide for standard DIN rail boards.

Rated for AC supply at 230-400V, 50-60Hz. Screw terminal connection top and bottom.

  • Rated Current: 50A
  • Curve: Type C
  • Icn: 10kA (IEC 60898-1) / Icu: 15kA (IEC 60947-2)
  • Voltage: 230-400V AC, 50-60Hz
  • IP20, 1 module (17.5mm)
Specifications

Poles

1P

Rated Current (In)

50A

Curve Type

C

Breaking Capacity Icn (IEC 60898-1)

10kA

Ultimate Breaking Capacity Icu (IEC 60947-2)

15kA

Service Breaking Capacity Ics

7.50kA

Rated Operational Voltage (Ue)

230-400V

Rated Insulation Voltage (Ui)

500V

Rated Impulse Withstand Voltage (Uimp)

6000V

Frequency

50-60Hz

Operating Temperature Range

-25 to 70°C

IP Rating

IP20

Terminal Type

Screw terminal

Dimensions (H x W x D)

83mm x 17.50mm x 70mm

Number of Modules

1

Documents

datasheet NCN150A
