NCN120A

Photo is representative

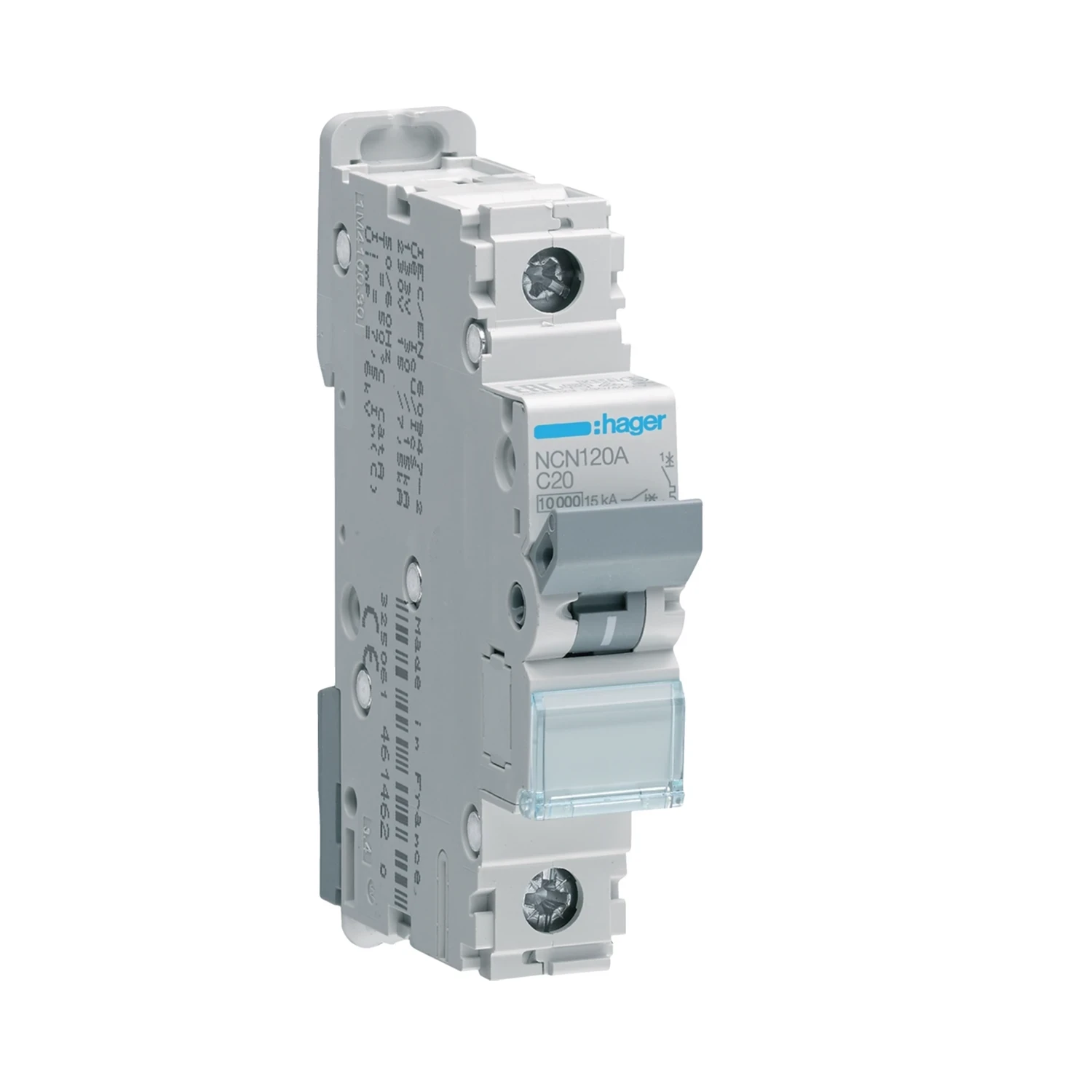

Hager MCB 20A Type C 10kA 1P

Product Information

Stock Code NCN120A
GTIN 3250614615535
Stock status: Available for delivery

priced individually

Net price: €19.15

Gross price

€23.55

Branch Stock

Monaghan

Stock status: 5 in stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: 1 in stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 5 in stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager NCN120A is a single pole MCB with Type C curve, rated 20A. Fits standard DIN rail distribution boards, 1 module wide.

Used for general purpose AC circuit protection where higher inrush currents are expected, such as motor loads or fluorescent lighting.

  • 20A rated current, Type C curve
  • 10kA Icn (IEC 60898-1), 15kA Icu (IEC 60947-2)
  • Operating temperature: -25°C to 70°C
  • IP20 rated, screw terminal connections
  • Rated insulation voltage 500V, impulse withstand 6000V
Specifications

Rated Current In

20 A

Curve Type

C

Breaking Capacity Icn

10 kA

Breaking Capacity Icu

15 kA

Service Breaking Capacity Ics

7.50 kA

Rated Operational Voltage Ue

230 - 400 V

Frequency

50 - 60 Hz

Poles

1P

IP Rating

IP20

Operating Temperature

-25 - 70 °C

Terminal Torque

2.80 Nm

Cable Range Massive Conductors

1 - 35 mm²

Cable Range Flexible Conductors

1 - 25 mm²

Dimensions H x W x D

83 x 17.50 x 70 mm

Documents

datasheet NCN120A
