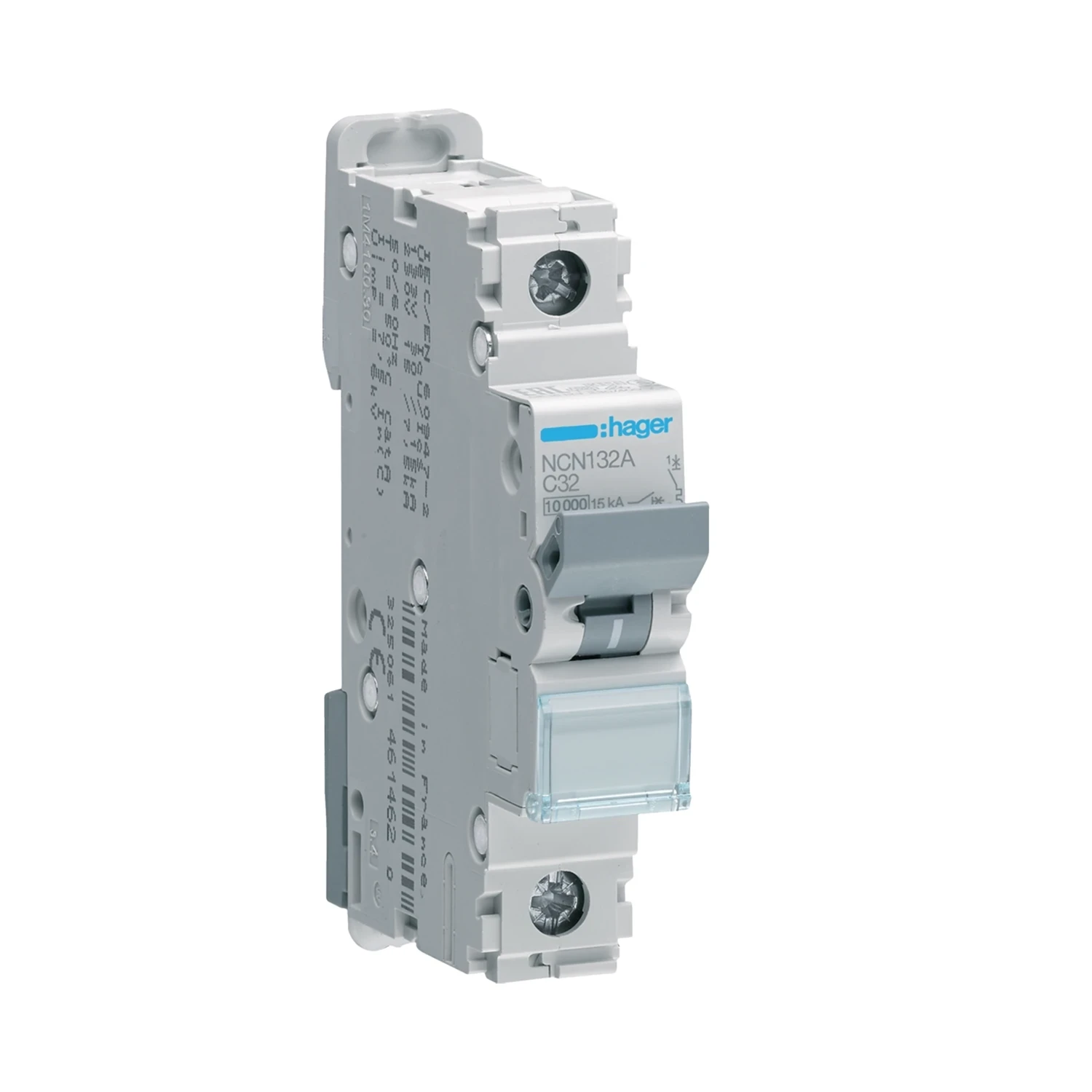

NCN132A

Photo is representative

Hager MCB 32A Type C 10kA 1P Single Pole Miniature Circuit Breaker

Product Information

Stock Code NCN132A
GTIN 3250614615559
Stock status: 7 available for delivery

priced individually

Net price: €19.15

Gross price

€23.55

Branch Stock

Monaghan

Stock status: 4 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 3 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager NCN132A is a single-pole MCB rated 32A with a Type C curve, for general-purpose overcurrent protection on AC installations up to 400V.

C curve suits circuits with higher inrush currents such as small motors and transformers.

  • 32A rated current (In), 10kA Icn to IEC 60898-1
  • 1 module wide, DIN rail mount, 360° mounting position
  • Screw terminals, 1-35mm² massive / 1-25mm² flexible conductor range
  • IP20
  • Operating temperature -25°C to 70°C
Specifications

Poles

1P

Rated Current (In)

32 A

Curve Type

C

Breaking Capacity (Icn)

10 kA

Rated Ultimate Breaking Capacity (Icu)

15 kA

Rated Service Breaking Capacity (Ics)

7.50 kA

Rated Operational Voltage (Ue)

230 - 400 V

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

6000 V

Frequency

50 - 60 Hz

Operating Temperature Range

-25 - 70 °C

IP Rating

IP20

Cable Range (Massive Conductors)

1 - 35 mm²

Dimensions (H x W x D)

83 x 17.50 x 70 mm

Documents

datasheet NCN132A
