NCN106A

Photo is representative

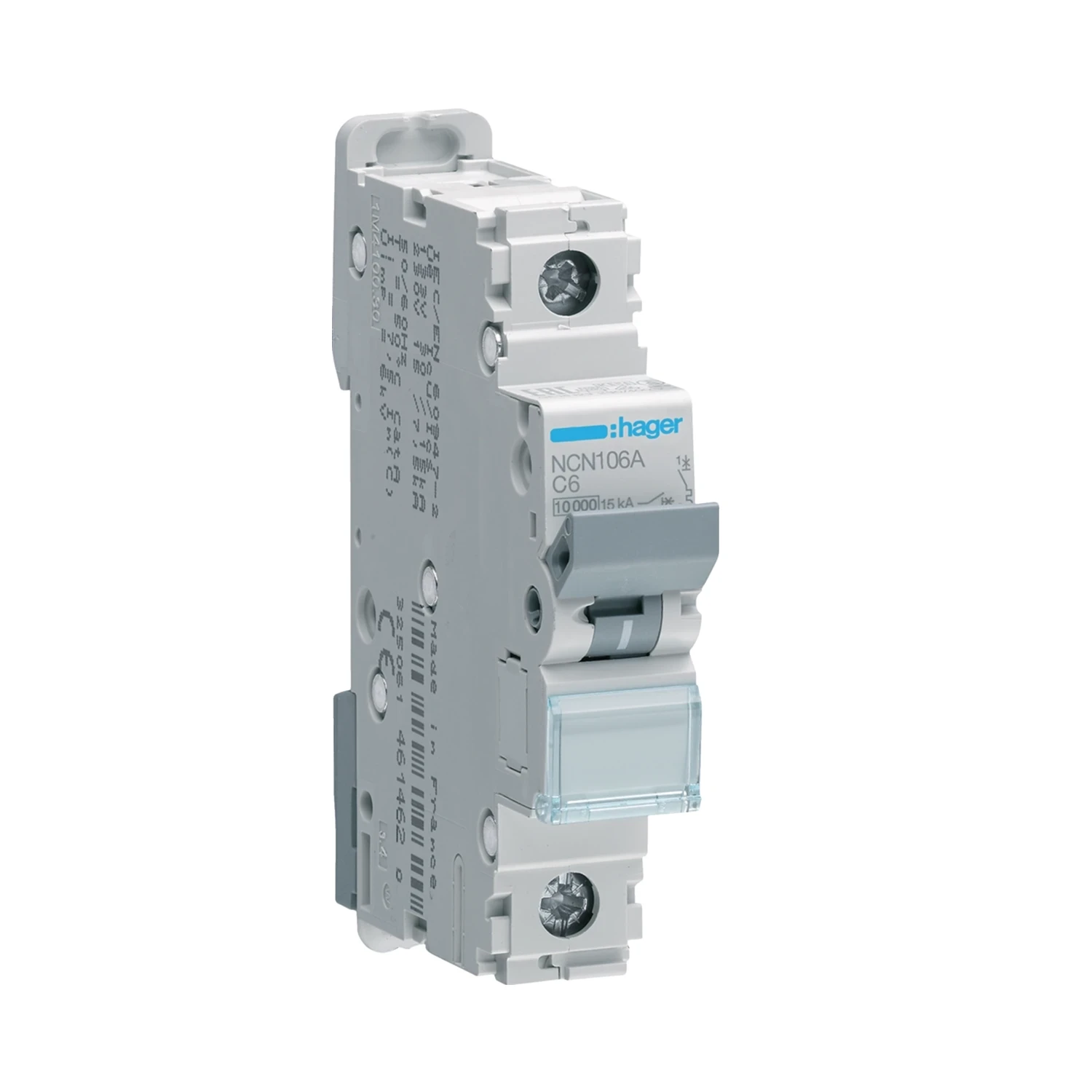

Hager MCB 6A Type C 10kA 1P 230-400V AC 1 Module DIN Rail Breaker

Product Information

Stock Code NCN106A
GTIN 3250614615498
Stock status: 9 available for delivery

priced individually

Net price: €19.15

Gross price

€23.55

Branch Stock

Monaghan

Stock status: 4 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 5 in stock
Closed · Opens 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager NCN106A is a single-pole MCB rated at 6A with a Type C curve. Used for overcurrent protection in single-phase AC circuits, fits standard DIN rail.

  • Breaking capacity: 10kA Icn (IEC 60898-1), 15kA Icu (IEC 60947-2)
  • Rated voltage: 230-400V AC
  • Module width: 1 module (17.5mm)
  • Top terminal screw, biconnect bottom terminal
  • Operating temp: -25°C to 70°C
Specifications

Rated Current (In)

6 A

Curve Type

C

Breaking Capacity Icn (IEC 60898-1)

10 kA

Breaking Capacity Icu (IEC 60947-2)

15 kA

Service Breaking Capacity Ics

7.50 kA

Rated Operational Voltage (Ue)

230 - 400 V

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

6000 V

Frequency

50 - 60 Hz

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Dimensions (H x W x D)

83 mm x 17.50 mm x 70 mm

Number of Modules

1

Pollution Degree

2

Documents

datasheet NCN106A
