NCN110A

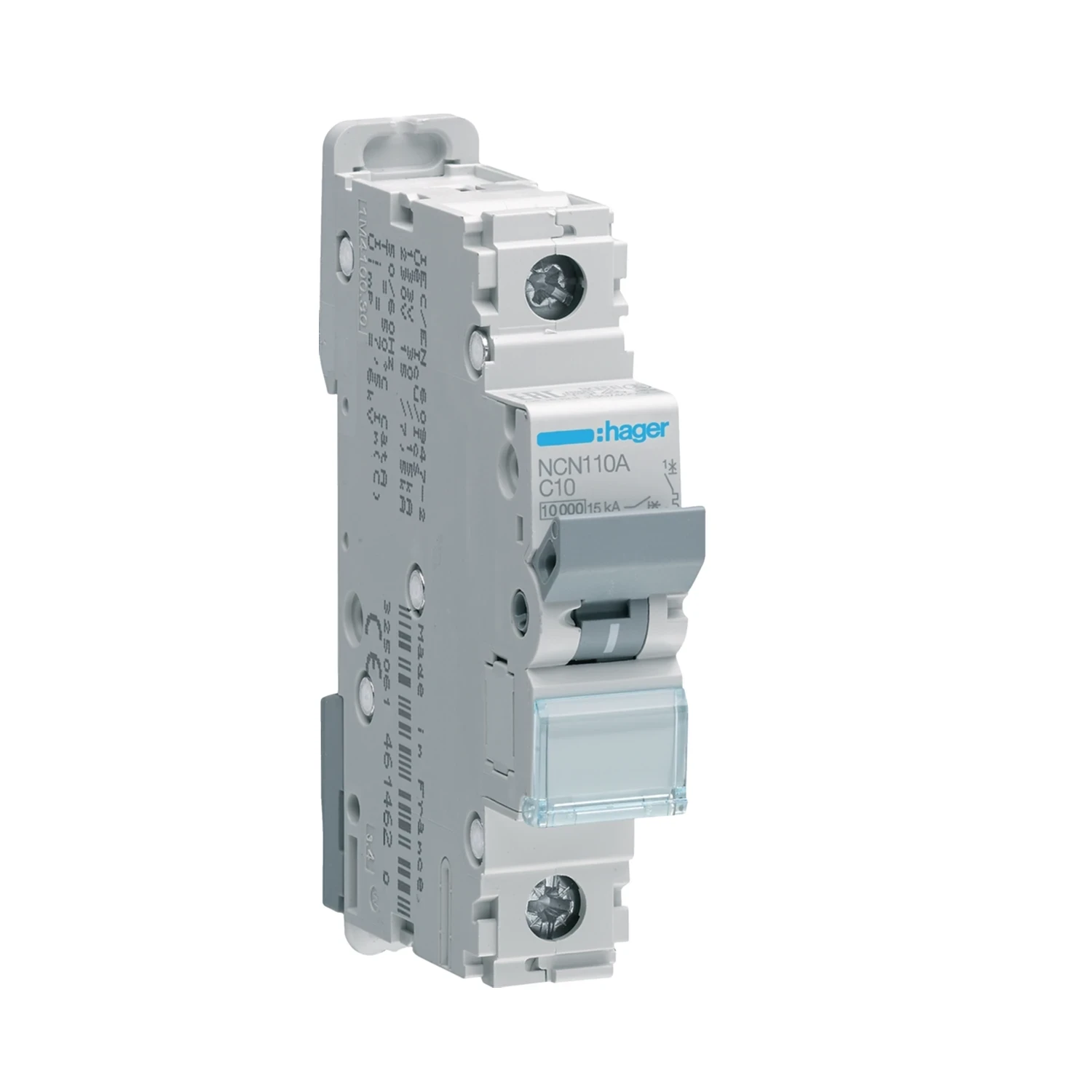

Photo is representative

Hager MCB 10A Type C Curve 10kA/15kA 1P 230-400V AC IEC 60898-1

Product Information

Stock Code NCN110A
GTIN 3250614615504
Stock status: Available for delivery

priced individually

Net price: €19.15

Gross price

€23.55

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 7 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

The Hager NCN110A is a single-pole MCB with 10A rated current and C-curve trip characteristic. Dual breaking capacity rating covers both domestic (IEC 60898-1) and industrial (IEC 60947-2) applications.

C curve suits circuits with higher inrush currents - motors, transformers, fluorescent lighting.

  • 10A rated current, Type C curve
  • Icn 10kA (230V AC, IEC 60898-1) / Icu 15kA (IEC 60947-2)
  • Rated voltage 230-400V AC, 50-60Hz
  • IP20, 1 module wide, DIN rail mount
  • Operating temp -25°C to 70°C
Specifications

Poles

1P

Rated Current

10 A

Trip Curve

C

Icn (230V AC, IEC 60898-1)

10 kA

Icu (IEC 60947-2)

15 kA

Ics (IEC 60898-1)

7.50 kA

Rated Operational Voltage (Ue)

230 - 400 V

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

6000 V

Frequency

50 - 60 Hz

IP Rating

IP20

Operating Temperature Range

-25 - 70 °C

Number of Modules

1

Dimensions (H x W x D)

83 x 17.50 x 70 mm

Documents

datasheet NCN110A
