NDN132A

Photo is representative

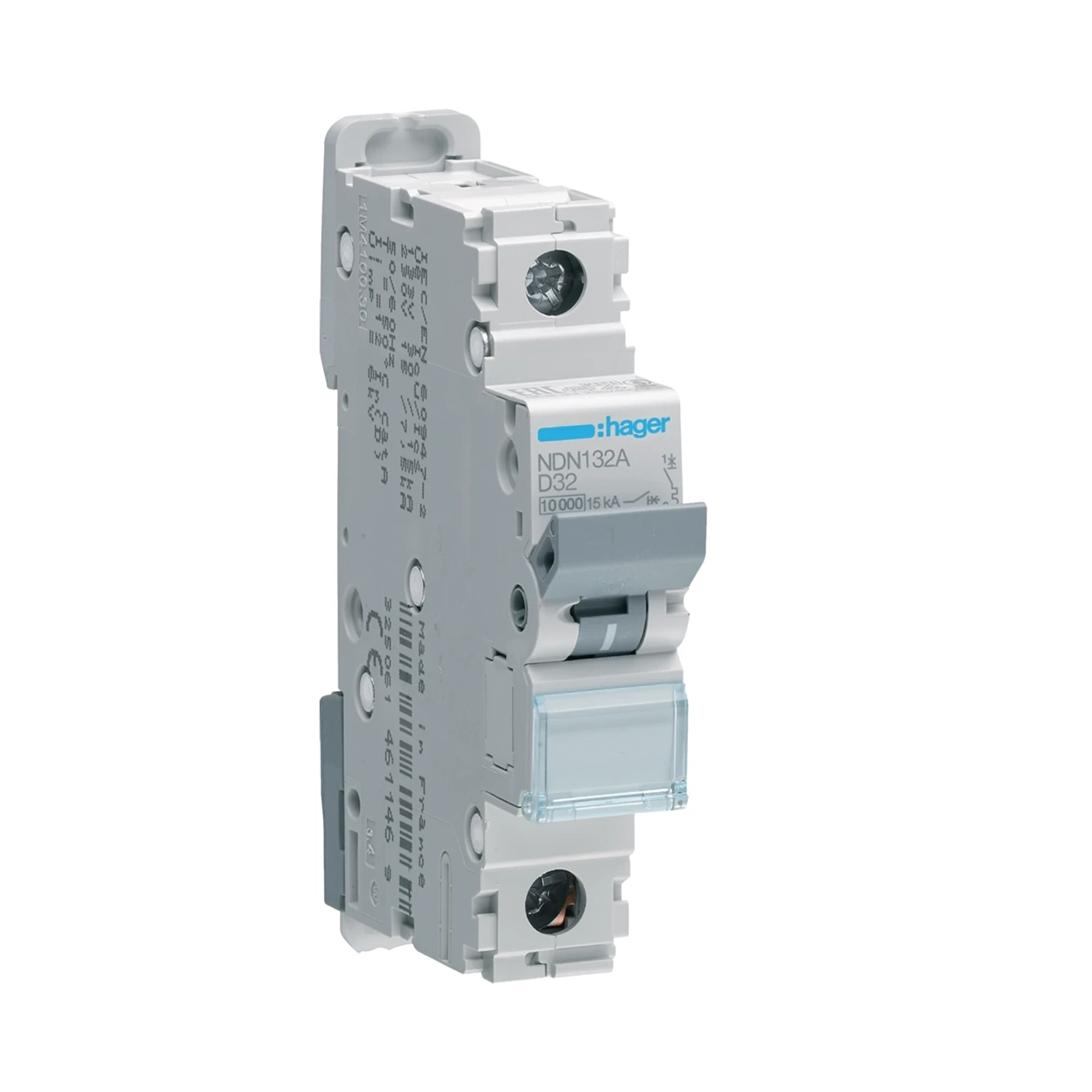

Hager MCB 32A Type D Curve 10kA 1P 230-400V AC 1 Module IP20

Product Information

Stock Code NDN132A
GTIN 3250614618970
Stock status: Available for delivery

priced individually

Net price: €24.78

Gross price

€30.48

Branch Stock

Monaghan

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Stock status: Out of stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Single-pole D-curve MCB from Hager. Fits standard DIN rail enclosures, takes up 1 module width.

D-curve trips at higher multiples of In, so it suits loads with high inrush current like motors, transformers and welding equipment.

  • 32A rated current (In)
  • D-curve trip characteristic
  • 10kA Icn (IEC 60898-1), 15kA Icu (IEC 60947-2)
  • 230-400V AC rated operational voltage
  • Screw terminals, 1-35mm² solid / 1-25mm² flexible cable range
  • IP20, -25°C to 70°C operating range
Specifications

Poles

1P

Rated Current (In)

32 A

Trip Curve

D

Breaking Capacity (Icn)

10 kA

Breaking Capacity (Icu)

15 kA

Service Breaking Capacity (Ics)

7.50 kA

Rated Voltage (Ue)

230-400 V AC

Insulation Voltage (Ui)

500 V

Impulse Withstand Voltage (Uimp)

6000 V

Frequency

50-60 Hz

Operating Temperature Range

-25 to 70 °C

IP Rating

IP20

Terminal Type

Screw terminal

Dimensions (H x W x D)

83 x 17.50 x 70 mm
