NDN120A

Photo is representative

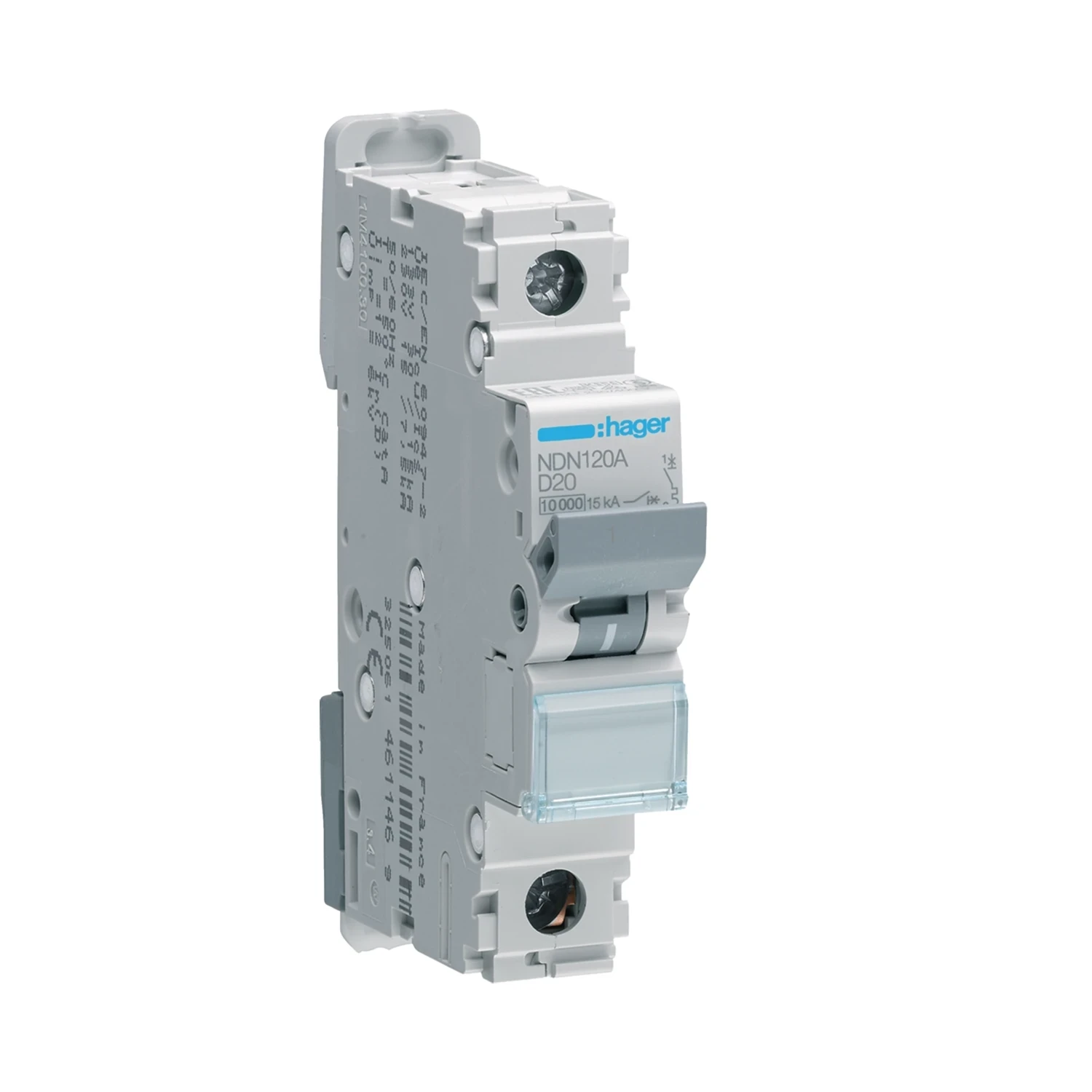

Hager MCB 20A Type D 10kA Icn 15kA Icu 1P 1 Module 230-400V AC

Product Information

Stock Code NDN120A
GTIN 3250614618956
Stock status: Available for delivery

priced individually

Net price: €24.78

Gross price

€30.48

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager NDN120A is a single-pole MCB with D-curve tripping characteristic, built for AC circuits with high inrush currents.

Used on single-phase distribution boards where transformers, motors or other high-inrush loads need protection without nuisance tripping.

  • Rated current: 20A
  • Trip curve: D
  • Breaking capacity: 10kA Icn / 15kA Icu
  • Rated voltage: 230-400V AC
  • 1 module width, DIN rail mount
Specifications

Poles

1P

Rated Current (In)

20 A

Trip Curve

D

Breaking Capacity (Icn)

10 kA

Breaking Capacity (Icu)

15 kA

Service Breaking Capacity (Ics)

7.50 kA

Rated Voltage (Ue)

230-400 V AC

Frequency

50-60 Hz

Insulation Voltage (Ui)

500 V

Impulse Withstand Voltage (Uimp)

6000 V

Number of Modules

1

Connection Type

Screw terminal

Cross-Section (Rigid Conductors)

1-35 mm²

Operating Temperature Range

-25 to 70 °C

IP Rating

IP20

Dimensions (H x W x D)

83 x 17.5 x 70 mm

Documents

datasheet NDN120A
