NDN110A

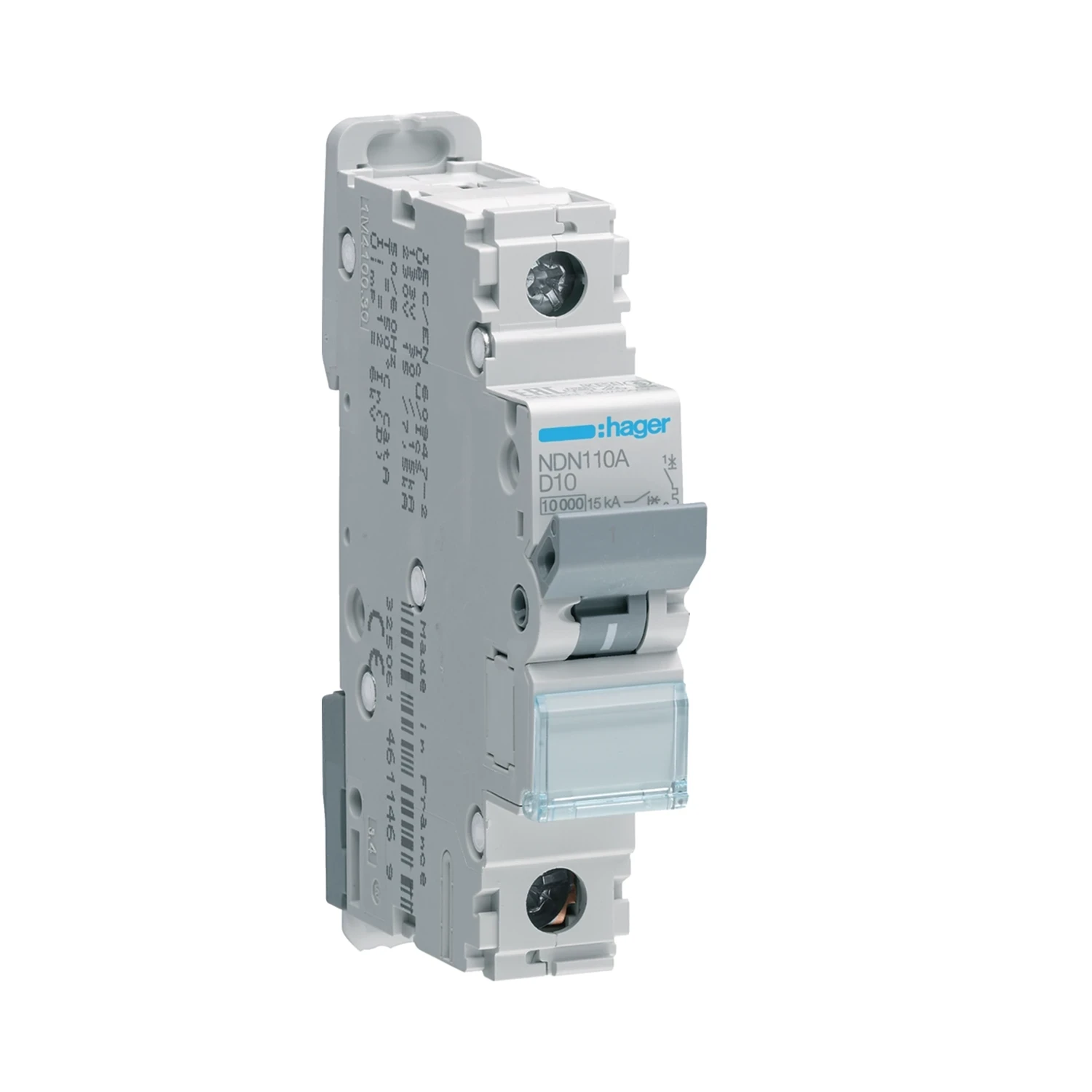

Photo is representative

Hager MCB 1P 10A D Curve 10kA 15kA Breaking Capacity 230-400V AC

Product Information

Stock Code NDN110A
GTIN 3250614618925
Stock status: Available for delivery

priced individually

Net price: €24.78

Gross price

€30.48

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager NDN110A is a single-pole MCB with 10A rated current and D-curve tripping characteristic, for AC distribution boards.

D-curve suits circuits with high inrush current, transformers, motors and similar loads where nuisance tripping on start-up needs to be avoided.

  • Rated current (In): 10 A
  • Curve: D
  • Icn (IEC 60898-1): 10 kA
  • Icu (IEC 60947-2): 15 kA
  • Ue: 230-400 V AC
  • 1 module, screw terminal, IP20
Specifications

Poles

1P

Rated Current (In)

10 A

Curve Characteristic

D

Breaking Capacity Icn (IEC 60898-1)

10 kA

Breaking Capacity Icu (IEC 60947-2)

15 kA

Service Breaking Capacity Ics

7.50 kA

Rated Operational Voltage (Ue)

230 - 400 V

Rated Insulation Voltage (Ui)

500 V

Frequency

50 - 60 Hz

IP Rating

IP20

Operating Temperature Range

-25 - 70 °C

Terminal Type

Screw terminal

Modules

1

Dimensions (H x W x D)

83 x 17.50 x 70 mm

Documents

datasheet NDN110A
