NDN125A

Photo is representative

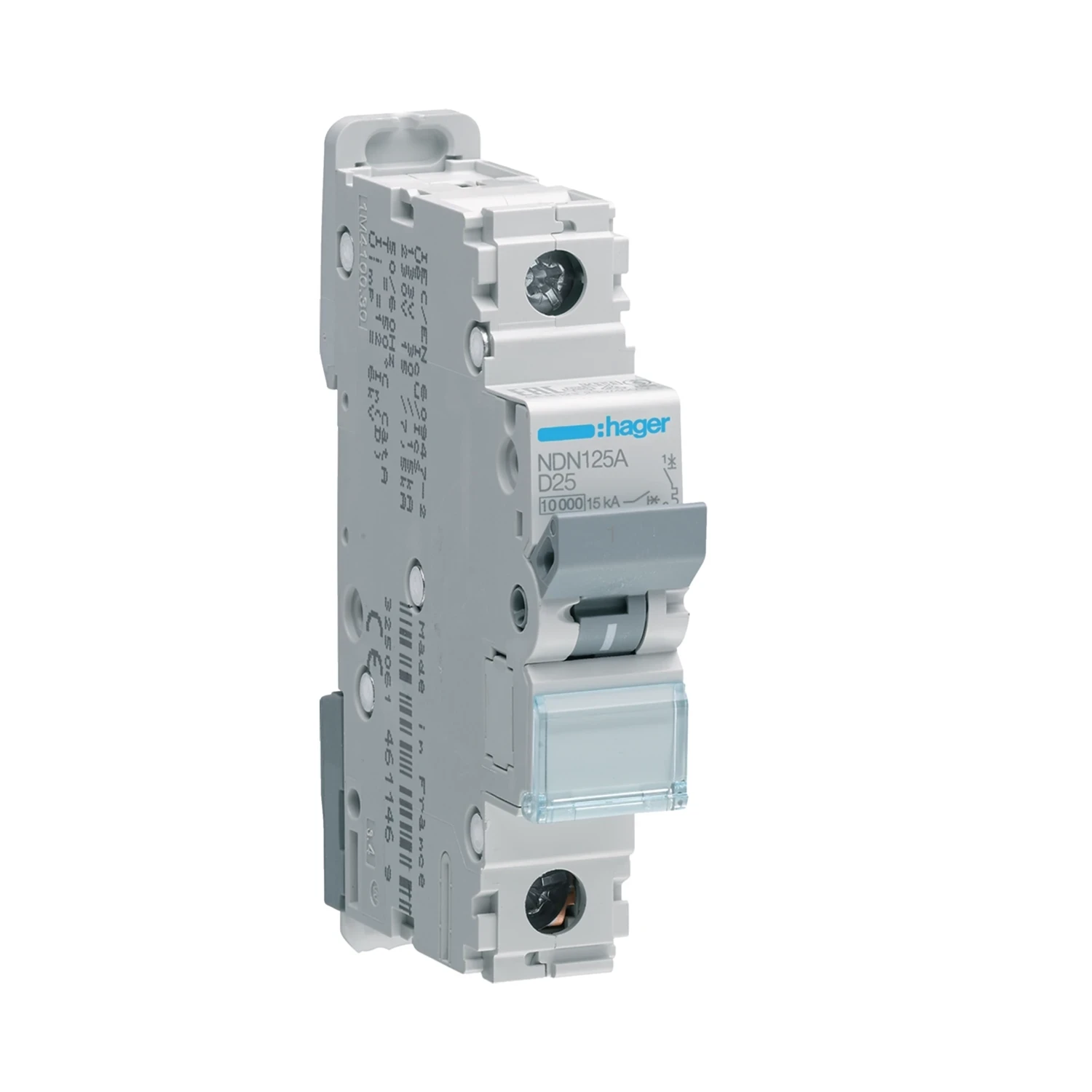

Hager MCB 25A Type D 10kA 1P

Product Information

Stock Code NDN125A
GTIN 3250614618963
Stock status: Available for delivery

priced individually

Net price: €24.77

Gross price

€30.47

Branch Stock

Monaghan

Stock status: In stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: In stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

The Hager NDN125A is a single-pole MCB rated 25A with D-curve tripping and 10kA breaking capacity. 1 module wide, fits standard DIN rail distribution boards.

D-curve trips at higher multiples of In than B or C, suited to circuits with high inrush current such as transformers and motors.

  • Rated current: 25A
  • Trip curve: D
  • Breaking capacity (Icn): 10kA
  • Poles: 1P
  • IP rating: IP20
Specifications

Poles

1P

Rated Current (In)

25 A

Trip Curve

D

Breaking Capacity (Icn)

10 kA

Ultimate Breaking Capacity (Icu)

15 kA

Service Breaking Capacity (Ics)

7.50 kA

Rated Operational Voltage (Ue)

230-400 V

Frequency

50-60 Hz

IP Rating

IP20

Operating Temperature Range

-25 to 70 °C

Terminal Torque

2.80 Nm

Dimensions (H x W x D)

83 mm x 17.50 mm x 70 mm

Cable Range (Massive Conductors)

1-35 mm²

Cable Range (Flexible Conductors)

1-25 mm²

Documents

datasheet NDN125A
