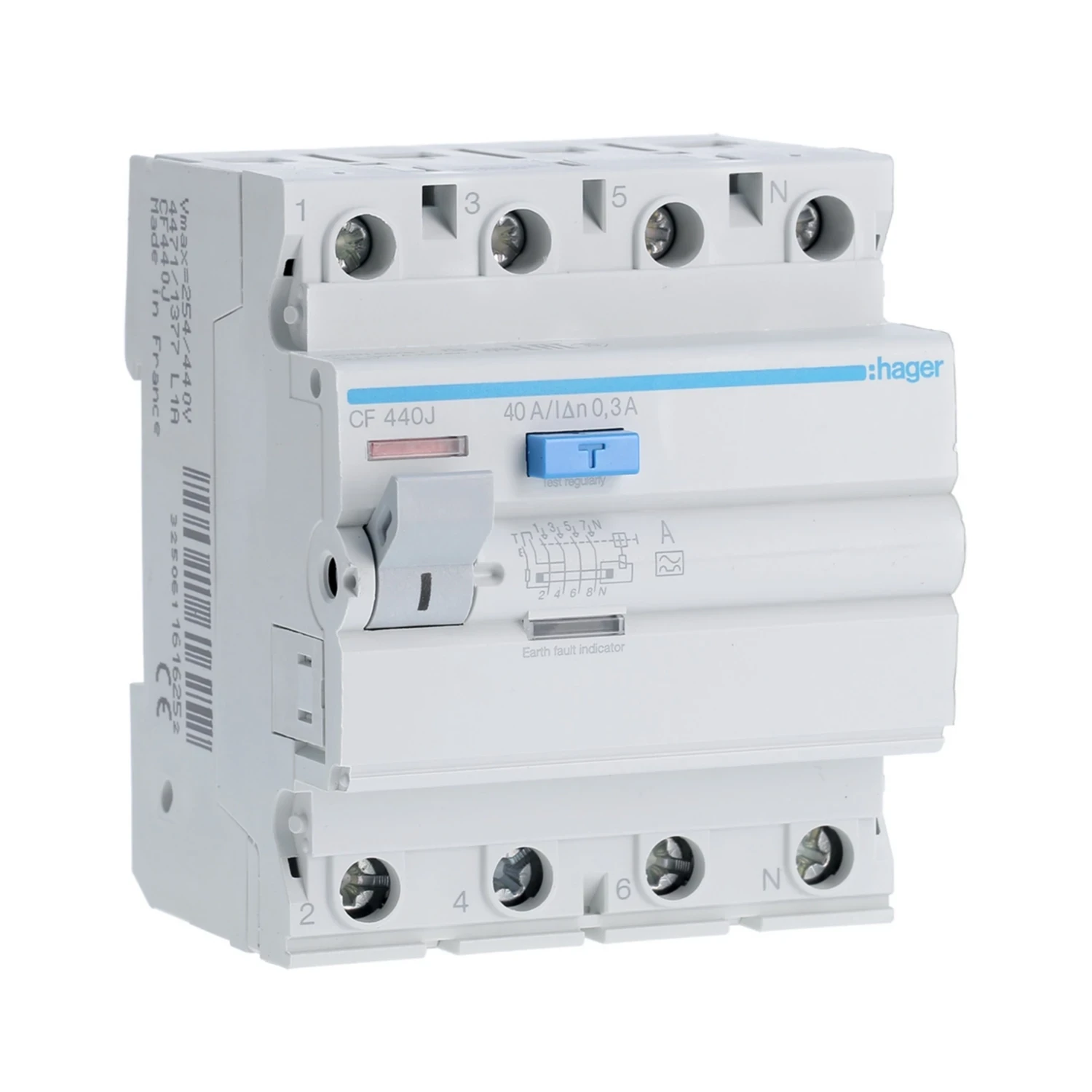

Hager CF440J RCCB 40A Type A 300mA 6kA 4P 4 Module

Photo is representative

Hager CF440J RCCB 40A Type A 300mA 6kA 4P 4 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code CF440J
GTIN 3250611616252
Stock status: Available for delivery

priced individually

Net price: €110.02

Gross price

€135.32

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 8 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager CF440J is a 4-pole residual current circuit breaker (RCCB) for DIN rail mounting in distribution boards. Type A device, no overcurrent protection built in - pair with MCBs upstream for combined protection.

Used on 3-phase circuits where 300mA time-delayed or standard trip is required for fire/earth fault protection rather than additional shock protection.

  • 40A rated current, 300mA IΔn
  • Type A residual current sensing
  • 6kA rated conditional short-circuit current (Inc)
  • 1.50kA breaking and opening capacity (Idm)
  • 4 module width, screw terminals
Specifications

Poles

3P+N (4 pole)

Rated Current

40 A

Rated Residual Operating Current (IΔn)

300 mA

Residual Current Type

A

Rated Conditional Short-Circuit Current (Inc)

6 kA

Breaking and Opening Capacity (Idm)

1.50 kA

Rated Operational Voltage (Ue)

230 - 400 V

Rated Insulation Voltage (Ui)

500 V

Frequency

50 - 50 Hz

IP Rating

IP20

Terminal Type

Screw terminal

Cross-Section Rigid Conductor

25 mm²

Number of Modules

4

Operating Temperature

-25 - 40 °C

Documents

datasheet Hager CF440J Datasheet
