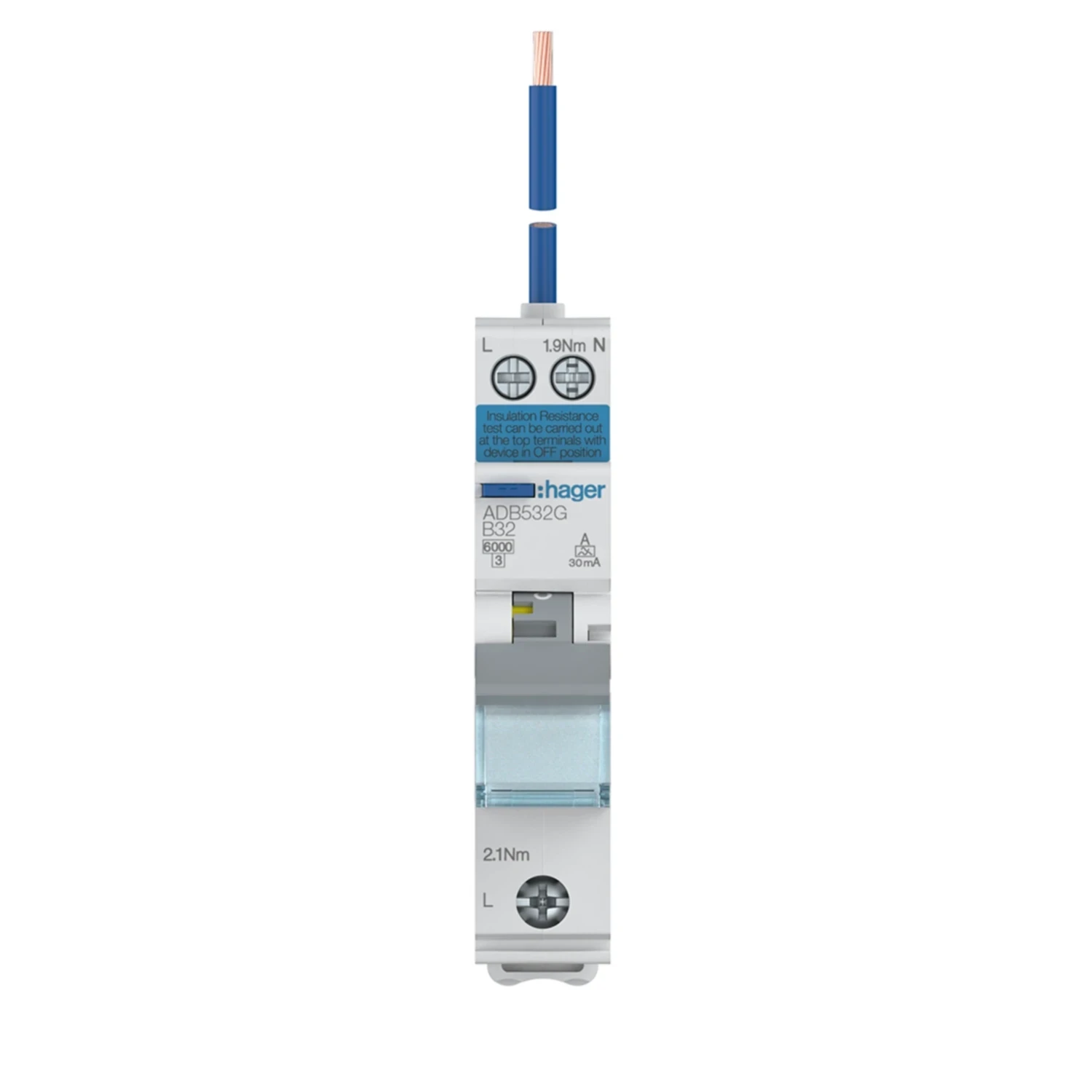

ADB532G

Photo is representative

Hager RCBO 32A Type B 30mA 1P+N 6kA Type A Bidirectional 1 Module

Product Information

Stock Code ADB532G
GTIN 3250610087688
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €34.39

Gross price

€42.30

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager ADB532G is a 1 module bidirectional RCBO for single-phase circuits with neutral. Combines MCB overcurrent protection with 30mA Type A residual current detection in a single DIN rail device.

  • Rated current: 32A
  • Curve: B
  • IΔn: 30mA, Type A
  • Breaking capacity: 6kA (Icn AC, IEC 60898-1)
  • Poles: 1P+N, 1 module wide
  • Terminals: screw, 1-16mm² rigid / 1-10mm² flexible, biconnect bottom
Specifications

Rated Current (In)

32 A

Curve

B

Rated Residual Operating Current (IΔn)

30 mA

Residual Current Type

A

Breaking Capacity (Icn AC, IEC 60898-1)

6 kA

Pole Configuration

1P+N

Rated Operational Voltage (Ue)

230 V

Frequency

50 Hz

IP Rating

IP20

Terminal Capacity (Rigid)

1 - 16 mm²

Terminal Capacity (Flexible)

1 - 10 mm²

Operating Temperature

-25 to 70 °C

Width

17.70 mm

Height

85 mm

Depth

70 mm

Documents

datasheet ADB532G
