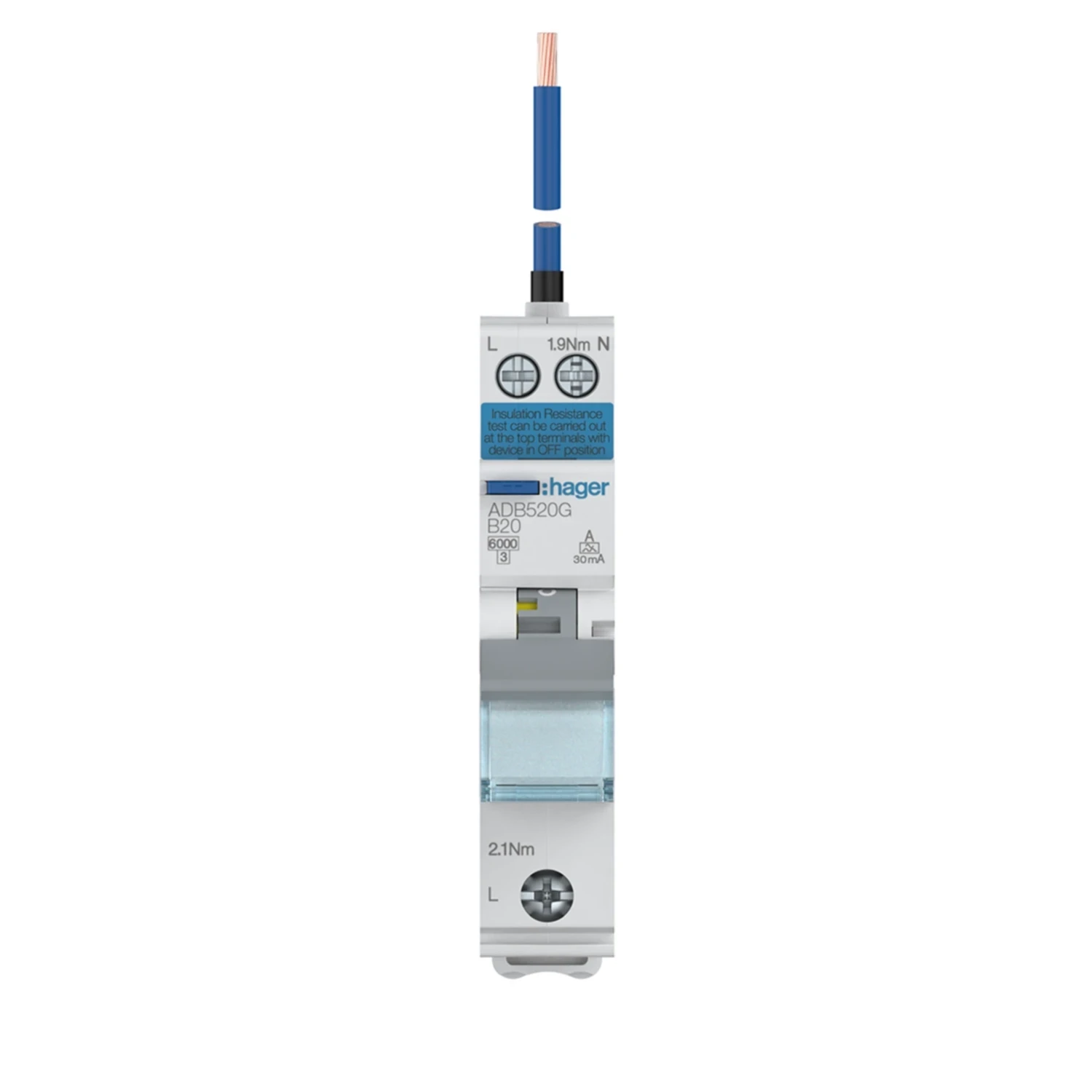

ADB520G

Photo is representative

Hager RCBO 20A Type B 30mA 1P+N 6kA Type A Single Phase 1 Module

Product Information

Stock Code ADB520G
GTIN 3250610087664
Stock status: Available for delivery

priced individually

Net price: €34.39

Gross price

€42.30

Branch Stock

Monaghan

Stock status: In stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: In stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: In stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

The Hager ADB520G is a bidirectional RCBO for single-phase circuits with neutral. Combines overcurrent protection with 30mA earth leakage protection in one 1-module device.

  • 20A rated current, B curve
  • 30mA Type A residual current
  • 6kA breaking capacity
  • 1P+N, 1 module
  • Screw terminals, 1-16mm² solid conductor range
Specifications

Rated Current

20 A

Curve

B

Rated Residual Operating Current

30 mA

Residual Current Type

A

Breaking Capacity (Icn)

6 kA

Rated Insulation Voltage

440 V

Rated Impulse Withstand Voltage

4000 V

Rated Operational Voltage

230 V

Overvoltage Category

III

IP Rating

IP20

Poles

1P+N

Number of Modules

1

Operating Temperature

-25 to 70 °C

Dimensions (H x W x D)

85 x 17.70 x 70 mm

Documents

datasheet ADB520G
