ADB516G

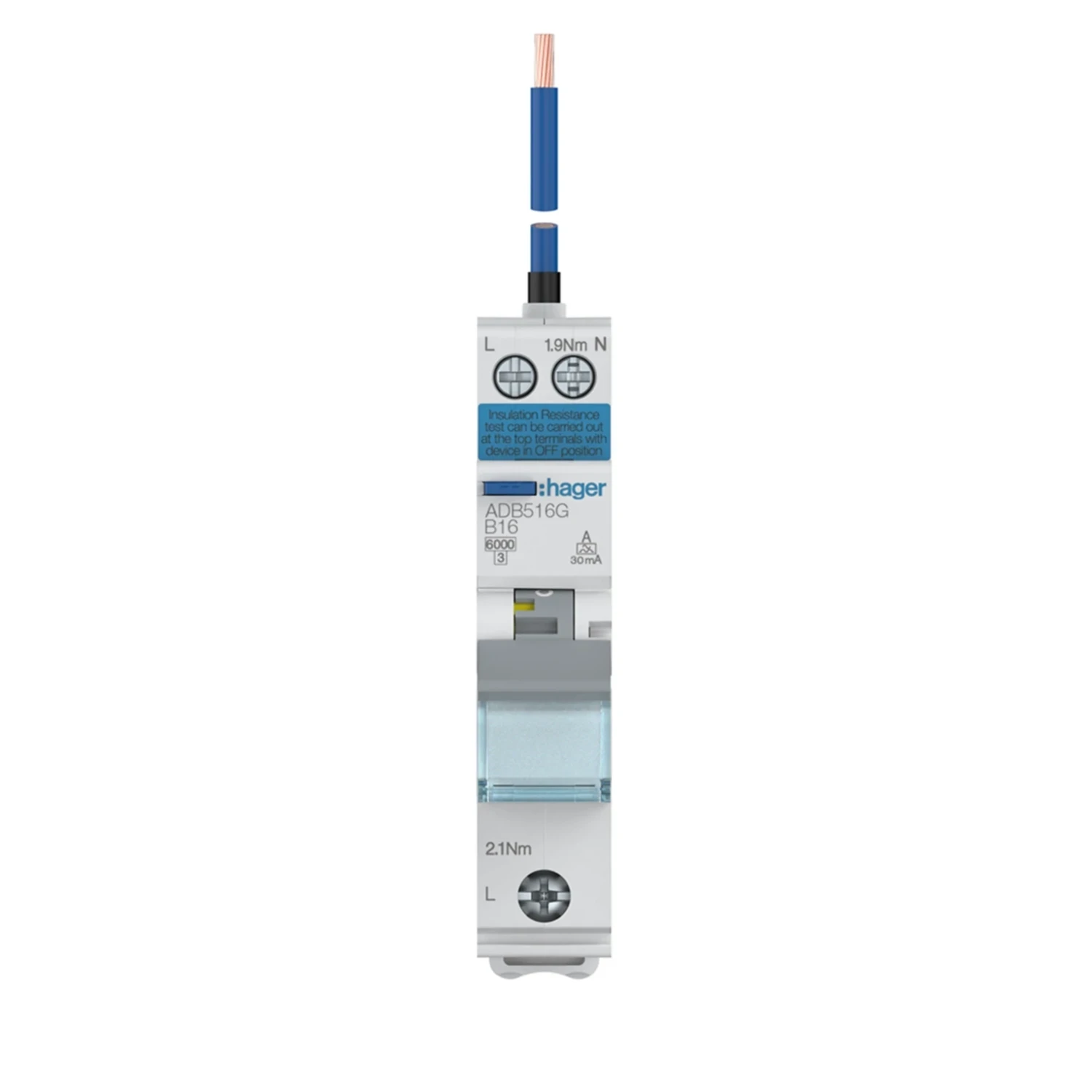

Photo is representative

Hager RCBO 16A Type B 30mA 1P+N 6kA

Product Information

Stock Code ADB516G
GTIN 3250610087657
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €34.39

Gross price

€42.30

Branch Stock

Monaghan

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Stock status: Out of stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Stock status: Out of stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager ADB516G is a single-pole RCBO with neutral for domestic and commercial boards. Combines overcurrent and residual current protection in one 1-module DIN rail device.

  • Rated current: 16A, B-curve
  • IΔn: 30mA, Type A
  • Breaking capacity: 6kA
  • Terminals: screw, 1-16mm² solid / 1-10mm² flexible
  • Width: 1 module (17.70mm)
Specifications

Poles

1P+N

Curve

B

Rated Current (In)

16 A

Rated Residual Operating Current (IΔn)

30 mA

Residual Current Type

A

Breaking Capacity (Icn AC)

6 kA

Rated Insulation Voltage (Ui)

440 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

Rated Operational Voltage (Ue)

230 V

Overvoltage Category

3

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Cross-section (Solid Conductors)

1 - 16 mm²

Number of Modules

1

Documents

datasheet ADB516G
