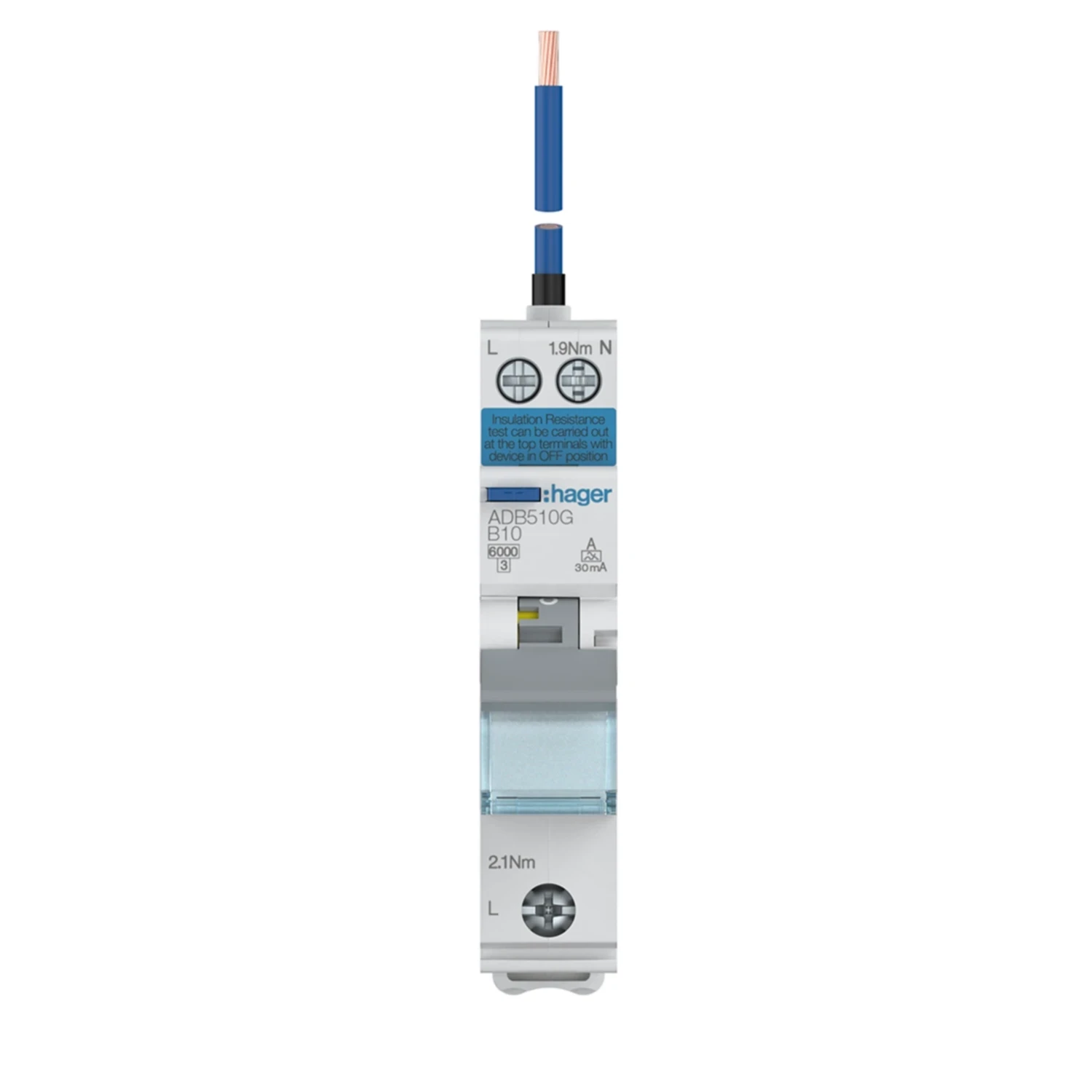

ADB510G

Photo is representative

Hager RCBO 10A Type B Curve 30mA 1P+N 6kA Single Phase DIN Rail

Product Information

Stock Code ADB510G
GTIN 3250610087640
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €34.39

Gross price

€42.30

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager ADB510G is a single pole (1P+N) RCBO combining Type B curve overcurrent protection with 30mA Type A residual current protection in one 1 module DIN rail unit.

  • Rated current: 10A
  • Curve: B
  • IΔn: 30mA, Type A
  • Breaking capacity: 6kA
  • Poles: 1P+N, 1 module wide
  • Terminals: screw, 1-16mm² solid / 1-10mm² flexible
Specifications

Rated Current (IN)

10 A

Rated Residual Operating Current (IΔn)

30 mA

Residual Current Type

A

Curve

B

Rated Short-Circuit Breaking Capacity (Icn)

6 kA

Rated Insulation Voltage (Ui)

440 V

Rated Operational Voltage (Ue)

230 V

Frequency

50 Hz

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Poles

1P+N

Number of Modules

1

Terminal Capacity (Solid Conductors)

1-16 mm²

Terminal Capacity (Flexible Conductors)

1-10 mm²

Dimensions (H x W x D)

85 x 17.70 x 70 mm

Documents

datasheet ADB510G
