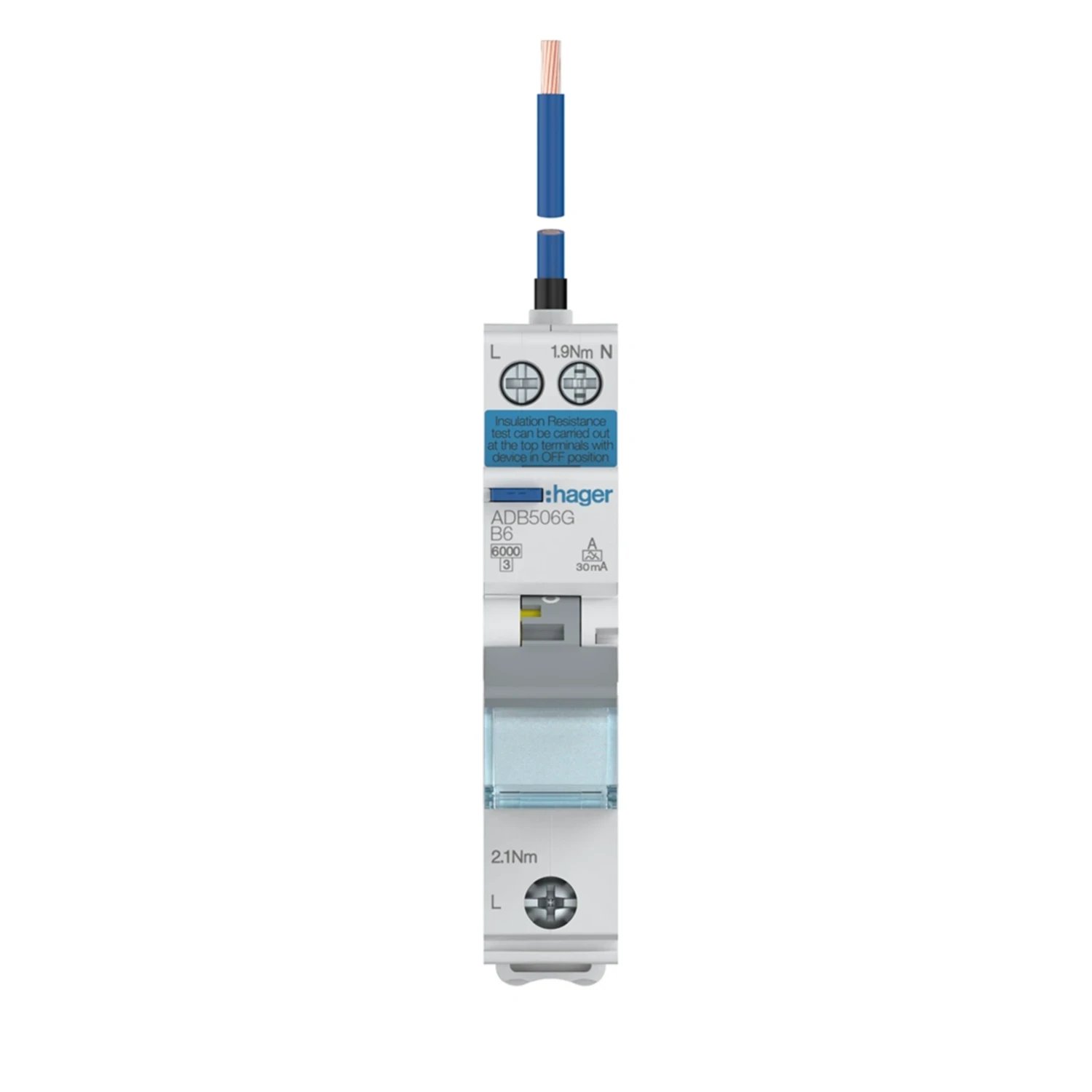

ADB506G

Photo is representative

Hager RCBO 6A B Curve 30mA Type A 1P+N 6kA Single Pole 1 Module

Product Information

Stock Code ADB506G
GTIN 3250610087633
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €34.39

Gross price

€42.30

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

RCBO for single-phase applications with neutral. Combines overload and residual current protection in one 1-module DIN rail device for 230V AC circuits.

Covers final circuits needing both overcurrent and earth leakage protection without a separate MCB and RCD.

  • 6A rated current, B curve
  • 30mA Type A residual current protection
  • 6kA breaking capacity
  • 1 module wide (17.70mm), DIN rail mount
  • Screw terminals, 1-16mm² cable range (rigid conductors)
Specifications

Poles

1P+N

Rated Current (In)

6 A

Curve

B

Rated Residual Operating Current (IΔn)

30 mA

Residual Current Type

A

Breaking Capacity (Icn)

6 kA

Rated Operational Voltage (Ue)

230 V

Rated Insulation Voltage (Ui)

440 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

Frequency

50 Hz

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Dimensions (H x W x D)

85 x 17.70 x 70 mm

Cable Range (rigid conductors)

1 - 16 mm²

Documents

datasheet ADB506G
